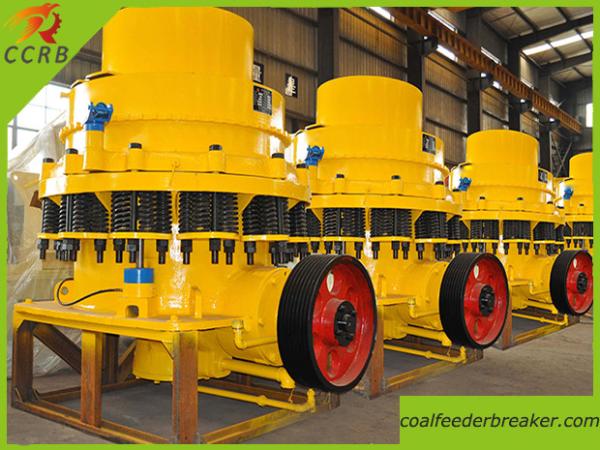

WKS Series Gravel Cone Crusher Machine
WKS Series Gravel Cone Crusher Machine
Specifications
Place of Origin :
China
Brand Name :
CCRB
Certification :
ISO9001:2008, SGS
Model Number :
WKS
MOQ :
1 Set
Price :
Negotiated
Packaging Details :
Standard export package
Delivery Time :
Within 40 days
Payment Terms :
L/C, T/T
Supply Ability :
500 sets per year
Description

WKS Series Gravel Cone Crusher Machine

WKS Series Gravel Cone Crusher Machine

Introduction:

WKS Series Gravel Cone Crusher Machine is widely used in metallurgy, construction, road building, chemical and silicate industry etc. This series of spring cone crusher is suitable for crushing medium hardness ores, with reliable construction, high production efficiency, easy adjustment and low operation cost etc. Please see the following structural drawing:

WKS Series Gravel Cone Crusher Machine

Advantage:

  • Large capacity with good performance
  • The final product with good particle shape and uniformity
  • Good iron passing protection system
  • Easy to clean the crusher cavity, reducing the stop time
  • Stable performance with independent thin oil lubrication system

WKS Series Gravel Cone Crusher MachineWKS Series Gravel Cone Crusher Machine

WKS Series Short Head Cone Crusher:
Model WKS75-D WKS160-D
Diameter 914mm 1295mm
Cavity Type Narrow Medium Wide Narrow Medium Wide
Smallest Size of Discharge Opening(mm) 3 3 6 3 6 16
Feeding Open Size(mm) Closed Side Setting(CSS) 13 33 51 19 54 98
Open Side Setting(OSS) 40 60 76 64 89 133
Capacity(t/h) 27-90 30-100 31-110 36-163 82-163 109-227
Weight(t) 15 26.5
Motor Power(KW) 75 160
Dimension(mm) 2865Х2000Х2190 3300Х2500Х2940
WKS Series Standard Cone Crusher:
Model WKS75-B WKS160-B WKS250-B
Diameter 900mm 1275mm 1650mm
Cavity Type Narrow Medium Wide Narrow Medium Wide Narrow Medium Wide
Smallest Size of Discharge Opening(mm) 9 13 25 13 16 25 16 22 38
Feeding Open Size(mm) Closed Side Setting(CSS) 83 159 163 109 188 238 188 213 331
Open Side Setting(OSS) 102 175 178 137 210 259 209 241 368
Capacity(t/h) 45-91 50-120 59-163 109-181 132-253 172-349 181-327 258-417 299-635
Weight(t) 15 26.5 43.5
Motor Power(KW) 75 160 250
Dimension(mm) 2865Х2000Х2190 3300Х2500Х2940 4105Х3280Х3505

WKS Series Gravel Cone Crusher MachineWKS Series Gravel Cone Crusher Machine

Related Products:

Cone Crusher Plant&Impact Crusher

WKS Series Gravel Cone Crusher MachineWKS Series Gravel Cone Crusher Machine

Jaw Crusher&Sand Making Machine

WKS Series Gravel Cone Crusher MachineWKS Series Gravel Cone Crusher Machine

Impeller Sand Washer&Spiral Sand Washer

WKS Series Gravel Cone Crusher MachineWKS Series Gravel Cone Crusher Machine

Apron Feeder Breaker&Scraper Feeder Breaker

WKS Series Gravel Cone Crusher MachineWKS Series Gravel Cone Crusher Machine

Coal Crushing Plant&Banana Screen

WKS Series Gravel Cone Crusher MachineWKS Series Gravel Cone Crusher Machine

Crawler Type Mobile Crushing Plant&Trailer Type Mobile Crushing Plant

WKS Series Gravel Cone Crusher MachineWKS Series Gravel Cone Crusher Machine

Linear Vibrating Screen&Circular Vibrating Screen

WKS Series Gravel Cone Crusher MachineWKS Series Gravel Cone Crusher Machine

Vibrating Feeder&Belt Feeder

WKS Series Gravel Cone Crusher MachineWKS Series Gravel Cone Crusher Machine

Training System:

Provide professional staff training for customers

  • Service engineer offers spot training and production line operation manual.
  • After-sales personnel visit customers on a regular basis.
  • Design engineer provides professional service for customers for free.
