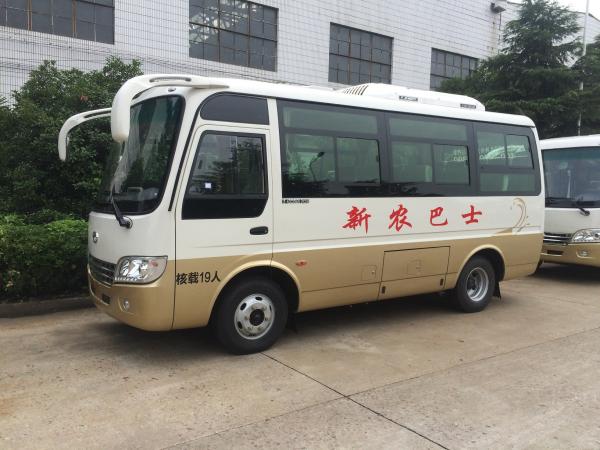

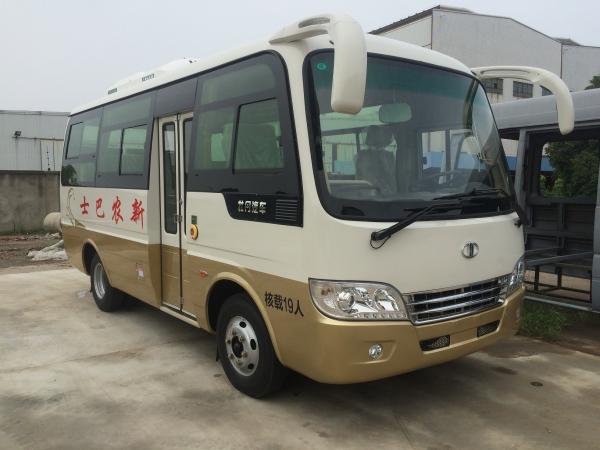

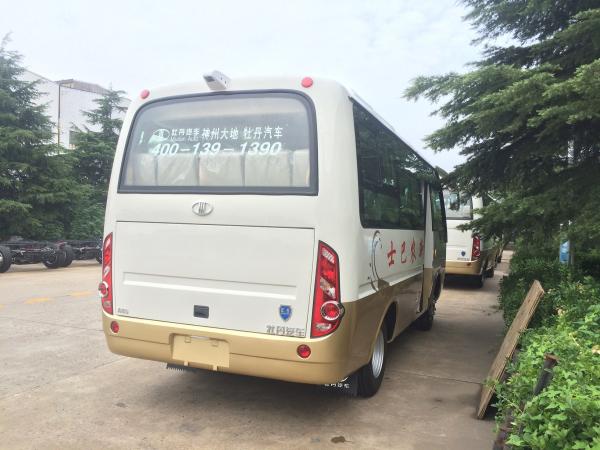

Plateau Terrain 19 Seats Diesel Minibus Star Type Cummins Engine Manual Gearbox
Plateau Terrain 19 Seats Diesel Minibus Star Type Cummins Engine Manual Gearbox
Plateau Terrain 19 Seats Diesel Minibus Star Type Cummins Engine Manual Gearbox
Plateau Terrain 19 Seats Diesel Minibus Star Type Cummins Engine Manual Gearbox
Plateau Terrain 19 Seats Diesel Minibus Star Type Cummins Engine Manual Gearbox
Plateau Terrain 19 Seats Diesel Minibus Star Type Cummins Engine Manual Gearbox
Plateau Terrain 19 Seats Diesel Minibus Star Type Cummins Engine Manual Gearbox
Plateau Terrain 19 Seats Diesel Minibus Star Type Cummins Engine Manual Gearbox
Specifications
Brand Name :
MUDAN
Model Number :
X6 (MD6608)
Certification :
ISO9001,CCC
Place of Origin :
ZHANGJIAGANG,CHINA
MOQ :
I UNIT
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
10000 UNITS PER YEAR
Delivery Time :
35 WORKING DAYS
Packaging Details :
BULK OR CONTAINER
Product Name :
Mini bus
Model/ Type :
Star
Length :
6M
Engine type :
Diesel
Seats capacity :
10~19 pcs
Gearbox :
Manual
Fuel type :
Diesel
Engine brand :
Yuchai/Cummins/isuzu
Engine model :
YC4FA130-30/EQB140-20
Steering wheel :
Left hand drive
Colour :
Optional
Description

Plateau Terrain 19 Seats Diesel Minibus Star Type Cummins Engine Manual Gearbox

Quick detail

ChassisDongfengBus EmissionEuro 3
Engine BrandYC,CY,DF,Cummins, etcGearboxmanual 5+1
Engine ModelTo be confirmedAir-conditioner14KC , Optional
Engine PowerTo be confirmedCustomizationAvailable


Description:

Our X serires mini bus was getting popular in Chinafrom early 80's.After years of development and new designed componnets,it is still one of the most popular minibuses in the market.

Engine installed are all proved to be of stable & quality by domestic market. Like Cummins engine,Yuchai engine ,Isuzu technology engine from JMC and so on !

All vehicles are treated with cathode electrophresis,which highly imporved the vehicle corrosion resistance.

Specification:

Model

MD6608

Overall Dimension

Length (mm)

5,995

Width (mm)

2,260

Height (mm)

2,830

Wheel base (mm)

3,300

Vehicle Weight

Curb (kg)

3,220

Gross (kg)

5,600

Seating capacity (person)

Pcs

10~19

Fuel tank (L)

70

Tires

Quantity

6+1

Size

7.00-16

Engine

Model

YC4FA115-20

Emission Level

Euro II

Manufacturer

YUCHAI

Displacement (cc)

2982

Max. power (hp/rpm)

115/3200 (85kw/3,200rpm)

Max. torque (Nm/rpm)

300/1600~2400

Gearbox

JAC LC5T35

Brake

Air brake,

Body Structure

All metal type, semi-integral body

Standard Configuration

1. Laminated front windshield & tempered rear windshield

2. Aluminum sliding side window & metal bracket rear view mirror

3. One driver door, one manual folding passenger door

4. Sunroof

5. Normal seat,2+1 layout, adjustable driver seats(back is adjustable)

6. PVC floor

7. MP3 player, 2 speakers

8. Defrosting system for front windshield

9. Rear luggage box

10.Normal interior

More Professional Design Team


1. We have a professional team, we can answer all your question effectively within 24 hours.

2. We have professional engineers to customize the trucks according to your special requiremen

Test Drive & Practical Training


1. Warmly welcome to visit our factory and office .

2. Different ways of training for you. Face to face/vedio/instruction books etc.

Quickly Reply & Professional After-service Team


1.We have our own spare parts warehouse, you can get the parts in a very short time.

2.We supply wearing parts to you for free ,they will be deliveried with the vehicle together.

Vehicle drawing:
Plateau Terrain 19 Seats Diesel Minibus Star Type Cummins Engine Manual Gearbox
