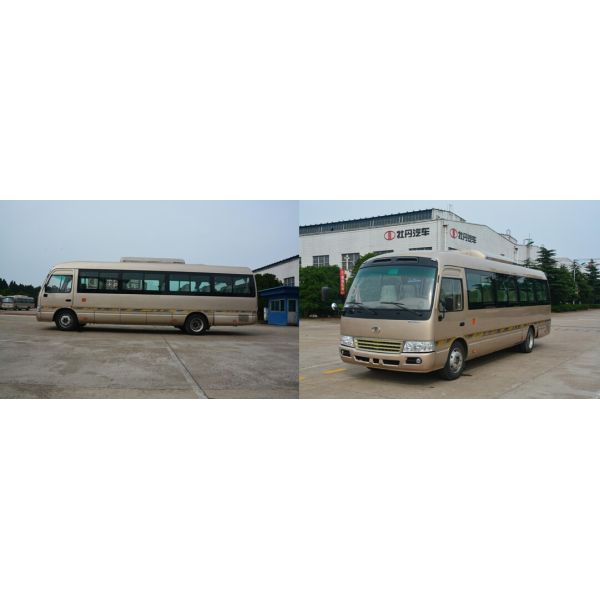

SKD / CKD Diesel Mini Bus 19 Seater Minibus Public Service 3300mm Wheel Base
SKD / CKD Diesel Mini Bus 19 Seater Minibus Public Service 3300mm Wheel Base
Specifications
Brand Name :
MUDAN
Model Number :
X6L (MD6668)
Certification :
ISO9001,CCC
Place of Origin :
ZHANGJIAGANG,CHINA
MOQ :
I UNIT
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
10000 UNITS PER YEAR
Delivery Time :
35 WORKING DAYS
Packaging Details :
BULK OR CONTAINER
Product Name :
Mini bus
Model/ Type :
Star
Length :
6.6M
Engine type :
Diesel
Seats capacity :
10~25 pcs
Gearbox :
Manual
Description

SKD / CKD Diesel Mini Bus 19 Seater Minibus Public Service 3300mm Wheel Base

Quick Details:

A: Isuzu technology engine HFC4DA1

B: 10~ 25 seats

C: 6.6 meter Star type

Description:

Center undertakes product planning, vehicle design, assembly part design, prototype, test and inspection, standards and regulations, intelligence information, intellectual property and patents, process improvement, technological innovation and new technologies, new technology promotion and application tasks. Product design realize from 2D to 3D development. The chief engineer is responsibility of technology Center. The thief engineer is the leading of the center, project engineers, engineers, assistant engineers, technicians are graded responsible manner to improve the design and develop the lightweight body design and exterior acceleration noise .The research are repeatedly won the Suzhou municipal technology innovation, research and other awards .

Engine installed are all proved to be of stable & quality by domestic market. Like Cummins engine,Yuchai engine ,Isuzu technology engine from JMC and so on !

All vehicles are treated with cathode electrophresis,which highly imporved the vehicle corrosion resistance.

Specification:

Model

MD6668

Overall Dimension

Length (mm)

6,600

Width (mm)

2,260

Height (mm)

2,830

Wheel base (mm)

3,300

Vehicle Weight

Curb (kg)

3,220

Gross (kg)

6,500

Seating capacity

Pcs

10~25

Fuel tank (L)

85

Tires

Quantity

6+1

Size

7.00-16

Engine

Model

HFC4DA1-2B2

Emission Level

Euro II

Manufacturer

JAC

Displacement (cc)

2771

Max. power (hp/rpm)

120/3,600rpm (88kw/3,600rpm)

Max. torque (Nm/rpm)

280/2000~2200

Gearbox

LC5T30

Brake

Air brake

Body Structure

All metal type, semi-integral body

Standard Configuration

1. Laminated front windshield & tempered rear windshield

2. Aluminum sliding side window & metal bracket rear view mirror

3. One Manual folding passenger door

4. Sunroof

5. normal sofa seat,2+2 layout, safety belt,

6. PVC floor

7. MP3 player, 2 speakers

8. Defrosting system for front windshield

9. Rear luggage box

10.Normal interior

Seats layout:

Option: A: 22 +1 ,

SKD / CKD Diesel Mini Bus 19 Seater Minibus Public Service 3300mm Wheel Base

option B : 24+1

SKD / CKD Diesel Mini Bus 19 Seater Minibus Public Service 3300mm Wheel Base

SKD / CKD Diesel Mini Bus 19 Seater Minibus Public Service 3300mm Wheel Base
