Passenger Vehicle Travel Coach Buses Parts Mitsubishi Rosa Bus Cummins Engine
Passenger Vehicle Travel Coach Buses Parts Mitsubishi Rosa Bus Cummins Engine
Passenger Vehicle Travel Coach Buses Parts Mitsubishi Rosa Bus Cummins Engine
Passenger Vehicle Travel Coach Buses Parts Mitsubishi Rosa Bus Cummins Engine
Passenger Vehicle Travel Coach Buses Parts Mitsubishi Rosa Bus Cummins Engine
Passenger Vehicle Travel Coach Buses Parts Mitsubishi Rosa Bus Cummins Engine
Specifications
Brand Name :
MUDAN
Model Number :
L6 (MD6602)
Certification :
ISO9001,CCC
Place of Origin :
ZHANGJIAGANG,CHINA
MOQ :
I UNIT
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
10000 UNITS PER YEAR
Delivery Time :
35 WORKING DAYS
Packaging Details :
BULK OR CONTAINER
Product Name :
Mini bus
Model/ Type :
Mitsubishi Rosa
Length :
6 M
Engine type :
Diesel
Seats capacity :
19 pcs
Gearbox :
Manual
Tires :
7.00R16(6+1)
Overall Dimension :
6000*2180*2840
Framework :
Straight beam
Fuel type :
Diesel
Emission stand :
Euro 2/3/4/5
Description

Passenger Vehicle Travel Coach Buses Parts mitsubishi rosa bus Cummins Engine

Quick Details:

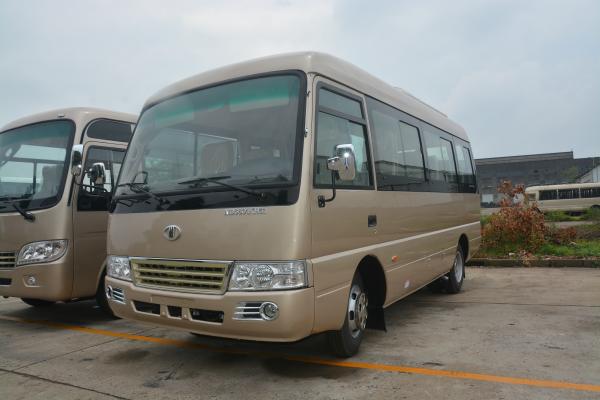

1: Rosa type diesel Mini bus

2: 30 seats capacity

3: 7.5 meter length

4: Cummins engine EQB125-20

5: Emission:Euro 2/3/4

6: ENGINE:YUCHAI YC4FA115-20

Description:

The outstanding design comes from original mitsubhishi Rosa, By top level of accurate point welding & argon-arc welding technology, body pieces made by high-precision mould from Taiwan are welded together into a shell structure. This Unique body structure is helpful for reducing the rollover risk and low down vibratiion noise. Also the weight of bus is of 200~300 kg lower than traditional frame type body under same body strength.

Chassis are fully developed, engines installed are all proved to be of stable & quality by domestic market. Like yuchai engine, isuzu technology engine from JMC and so on ! Vehicles are all treated with cathode electrophresis ,which highly improve the vehicle corrosion resistance.

Center undertakes product planning, vehicle design, assembly part design, prototype, test and inspection, standards and regulations, intelligence information, intellectual property and patents, process improvement, technological innovation and new technologies, new technology promotion and application tasks.

Specification:

Model

MD6602

Overall Dimension

Length (mm)

6,000

Width (mm)

2,180

Height (mm)

2,840

Wheel base (mm)

3,300

Vehicle Weight

Curb (kg)

3,220

Gross (kg)

5,500

Seating capacity

Pc

19 seats capacity

Fuel tank (L)

70

Tires

Quantity

6+1

Size

7.00R16

Engine

Model

EQB125-20

Emission Level

Euro II

Manufacturer

Cummins

Displacement (cc)

3,800

Max. power (hp/rpm)

125/2800 (92kw/2,800rpm)

Max. torque (Nm/rpm)

410/1500

Gearbox

QUJIANG QJ5S500

Brake

Air brake

Body Structure

All metal type, semi-integral body

Standard Configuration

1. Laminated front windshield & tempered rear windshield

2. Aluminum sliding side window & metal bracket rear view mirror

3. One driver door, one manual folding passenger door

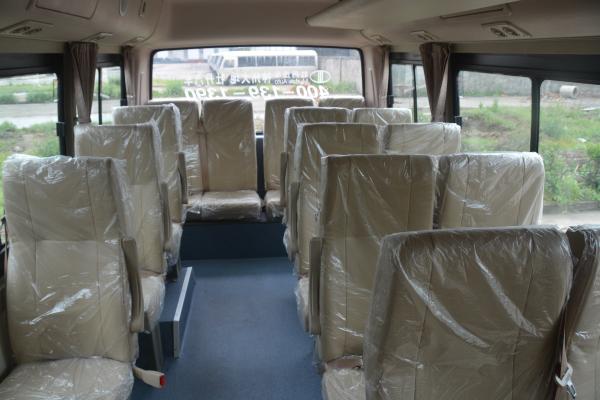

4. normal seat,2+2 layout, adjustable driver seats(back is adjustable)

5. Sunroof

6. PVC floor

7. MP3 player, 2 speakers

8. Defrosting system for front windshield

9. Rear luggage box

10. A/C interior

Application:

1, Public transportation; 2, Tourism mini bus; 3, City bus; 4, School bus
