Coaster Type City Sightseeing Business minibus / Passenger Minibus ISUZU Engine
Coaster Type City Sightseeing Business minibus / Passenger Minibus ISUZU Engine
Coaster Type City Sightseeing Business minibus / Passenger Minibus ISUZU Engine
Coaster Type City Sightseeing Business minibus / Passenger Minibus ISUZU Engine
Coaster Type City Sightseeing Business minibus / Passenger Minibus ISUZU Engine
Coaster Type City Sightseeing Business minibus / Passenger Minibus ISUZU Engine
Coaster Type City Sightseeing Business minibus / Passenger Minibus ISUZU Engine
Coaster Type City Sightseeing Business minibus / Passenger Minibus ISUZU Engine
Coaster Type City Sightseeing Business minibus / Passenger Minibus ISUZU Engine
Coaster Type City Sightseeing Business minibus / Passenger Minibus ISUZU Engine
Coaster Type City Sightseeing Business minibus / Passenger Minibus ISUZU Engine
Coaster Type City Sightseeing Business minibus / Passenger Minibus ISUZU Engine
Specifications
Brand Name :
MUDAN
Model Number :
K8 (MD6772)
Certification :
ISO9001,CCC
Place of Origin :
ZHANGJIAGANG,CHINA
MOQ :
I UNIT
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
10000 UNITS PER YEAR
Delivery Time :
35 WORKING DAYS
Packaging Details :
BULK OR CONTAINER
Product Name :
Mini bus
Model/ Type :
Coaster
Length :
7.74M
Engine type :
Diesel
Seats capacity :
24~31 pcs
Gearbox :
Mannual
Tire :
7.00R16
Suspension :
Leaf spring
Clutch :
Single, Dry, Diaphragm
Transmission :
5 forward+1 reverse
Description

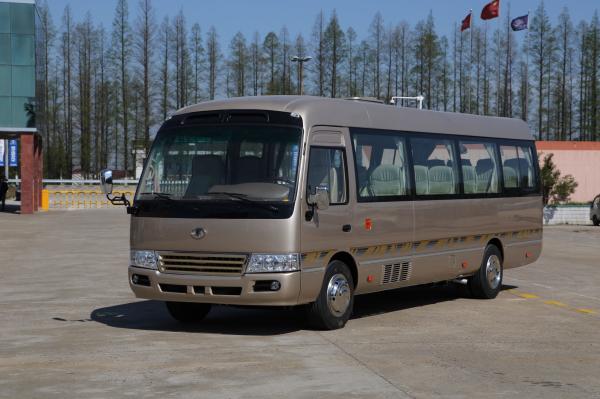

Coaster Type City Sightseeing Business minibus / Passenger Minibus ISUZU Engine

Quick Details:

1: 24~31 seats capacity

2: 7.74 meter length

3: Coaster type (width of 2160 mm)

4: Diesel Mini bus

5: 3.8L Cummins ISF3.8s engine

Description:

With outstanding design from original Toyota coaster, luxury generous space, comfortable seating ,easy manipulation , perfect commercial vehicle function, leading technical peformance and humanity concept

Center undertakes product planning, vehicle design, assembly part design, prototype, test and inspection, standards and regulations, intelligence information, intellectual property and patents, process improvement, technological innovation and new technologies, new technology promotion and application tasks. Product design realize from 2D to 3D development. The chief engineer is responsibility of technology Center. The thief engineer is the leading of the center, project engineers, engineers, assistant engineers, technicians are graded responsible manner to improve the design and develop the lightweight body design and exterior acceleration noise .The research are repeatedly won the Suzhou municipal technology innovation, research and other awards .

Specification:

Model

MD6772

Overall Dimension

Length (mm)

7,740

Width (mm)

2,160

Height (mm)

2,630/2770

Wheel base (mm)

4,435

Vehicle Weight

Curb (kg)

3,850

Gross (kg)

7,500

Seating capacity

Pcs

30+1

Fuel tank (L)

70

Tires

Quantity

6+1

Size

7.00R16

Engine

Model

ISF3.8S3141

Emission Level

Euro III

Manufacturer

Cummins

Displacement (cc)

3,760

Max. power (Hp/rpm)

141/2,600 (92kw/2600rpm)

Max. torque (Nm/rpm)

450/1200~2200

Gearbox

QJ5S500

Brake

Air brake

Body Structure

All metal type, semi-integral body

　

Standard Configuration

1. Front laminated glass, rear tempered glass

2. Aluminum sliding side window & metal bracket rear view mirror

3. One driver door, one manual folding passenger door

4. Standard fixed sofa seat, 2+2 type, not adjustable ,with armrest

5. MP3 player & 4 speaker

6. PVC floor

7. Sunroof

8. Front Defrosting system

9. Air condition interior

10. Rear luggage box

Application:

1, Public transportation

2, Tourism mini bus

3, City bus

4, School bus

Factory:

1, Advanced production line

2, Experienced technician workers

3, Stable quality with Competitive price

4, Technical support & after sales service

Coaster Type City Sightseeing Business minibus / Passenger Minibus ISUZU Engine
