Dx51d Color Coated Steel Prepainted Galvanized Steel Coil PPGI Steel Coil Zinc Steel Coil Construction Structure
Dx51d Color Coated Steel Prepainted Galvanized Steel Coil PPGI Steel Coil Zinc Steel Coil Construction Structure
Dx51d Color Coated Steel Prepainted Galvanized Steel Coil PPGI Steel Coil Zinc Steel Coil Construction Structure
Dx51d Color Coated Steel Prepainted Galvanized Steel Coil PPGI Steel Coil Zinc Steel Coil Construction Structure
Dx51d Color Coated Steel Prepainted Galvanized Steel Coil PPGI Steel Coil Zinc Steel Coil Construction Structure
Dx51d Color Coated Steel Prepainted Galvanized Steel Coil PPGI Steel Coil Zinc Steel Coil Construction Structure
Specifications
Brand Name :
Decho Building Materials
Model Number :
S320GD PRE-PAINTED GAVANIZED STEEL
Certification :
MILL TEST CERTIFICATE、ISO9001-2008、SGS、BV
Place of Origin :
China
MOQ :
25 TONS
Price :
USD 700~1050
Payment Terms :
L/C, T/T
Supply Ability :
500 tons per day
Delivery Time :
30~45days
Packaging Details :
Standard Exporting Packing(Eye to Side) , No pallet Vertical Packing (Eye to Sky) with Wooden Pallet, Horizontal Packing (Eye to Side) with Wooden Pallet
Color :
Orange
thickness :
0.5mm~1.2mm
Z-coating :
Z150~275 g/㎡
steel grade :
S320GD
STEEL GRADE :
DX51D
PAINT SYSTEM :
HDP
Description

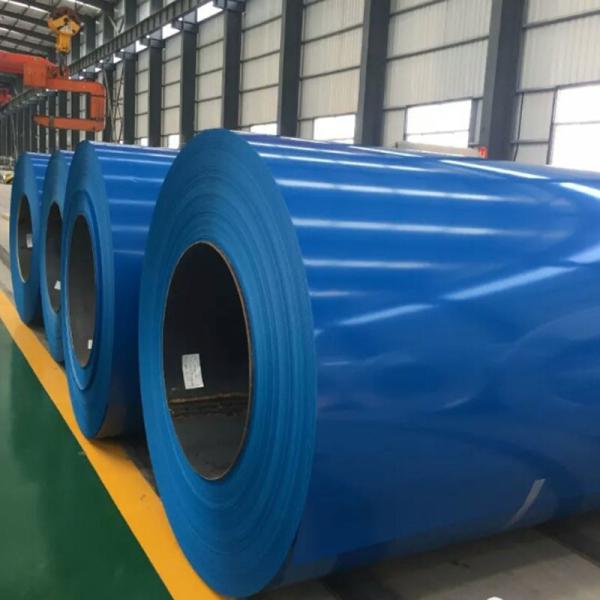

Dx51d Color Coated Steel Prepainted Galvanized Steel Coil
PPGI Steel Coil Zinc Steel Coil Construction Structure
Color coated steel coil is a product made of cold-rolled steel coil and (aluminum) galvanized steel coil after surface chemical treatment, coating (roll coating) or composite organic film (PVC film, etc.), and then baking and curing. It not only has the properties of high mechanical strength and easy forming of steel materials, but also has good decoration and corrosion resistance of coating materials.
Color coated steel coil is mainly divided into three classifications: Construction, Household appliances and Transportation.
Building is generally used to build the roof, wall and door of industrial and commercial buildings such as steel structure workshop, airport, warehouse and freezer.
Household appliances are used in the production of refrigerators and large air conditioning systems, freezers, toasters, furniture, etc.
Transportation industry is mainly used for oil pan, automobile interior parts, etc.
Prepainted Galvanised wall panels are one of the most economical options to clad the walls (both exterior and interior) of a building.
But while cost is important, it isn't everything. They are also highly durable, rarely require additional framing and are easy to replace or configure when building repairs or modifications are needed. Because of these factors, metal panels win on functionality too.
So they deliver on value and performance, but what about aesthetics? Never fear. With options like flush or ribbed panels and vertical or horizontal installs, they also perform a key role in the aesthetics of your new building, metal panels can also be a key visual element by retaining that new building curb appeal for years.

Q: Are you a manufacturer?
A:Yes, we are manufacturers. We have our own factory and our own company.
I believe we will bethemost suitable supplier for you.

Q: Can we visit your factory?
A: Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.

Q: Do you have quality control system?
A: Yes, we have ISO, BV, MTC, certifications and our own quality control laboratory.Third party testing services are also available.

Q: Why should I choose you?
A: Choose happens because of quality,then price, we can give you both. Additionally, we can also offer professional products inquiry, products knowledge train( for agents), smooth goods delivery, excellent customer solution proposals.
Our service formula:good quality + good price + good service = Customer's trust

Q: How long is your delivery time?
A: Generally it is 10 days if the goods are in stock. or it is 30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: We accept LC and TT both.

Thickness
GI 0.20mm~1.70mm GL 0.20mm~3.0mm
Width
600mm~1500mm
Zink-Coating
Z40~Z275g/㎡ AZ30~AZ200g/㎡
Paint Structure
2/1, 2/2, 3/2, 3/3
Paint Coating
Top side 15μm~55μm Back side 5μm~30μm

Structural Grades C Mn P S Al Si Cu Ni Cr Mo V Cb Ti N
30,33,36,40 0.25 0.9 0.035 0.04 0.2 0.2 0.15 0.06 0.008 0.008 0.025
36T2,45-80 0.25 1.35 0.035 0.04 0.2 0.2 0.15 0.06 0.008 0.008 0.025
45T2 .02- 0.08 .30- 1.0 .03- .07 0.025 .02- .08 0.6 0.2 0.2 0.15 0.06 0.008 0.008 0.025 .01- .03

HSLA Grades C Mn P S Al Si Cu Ni Cr Mo V Cb Ti N
45C1 0.22 1.35 0.04 0.04 0.2 0.2 0.15 0.06 0.005 0.005 0.005
45C2 0.15 1.35 0.04 0.04 0.2 0.2 0.15 0.06 0.005 0.005 0.005
50C1 0.23 1.35 0.04 0.04 0.2 0.2 0.15 0.06 0.005 0.005 0.005
50C2 & 55C2 0.15 1.35 0.04 0.04 0.2 0.2 0.15 0.06 0.005 0.005 0.005
55C1 0.25 1.35 0.04 0.04 0.2 0.2 0.15 0.06 0.005 0.005 0.005
60C1 & 65C1 0.26 1.5 0.04 0.04 0.2 0.2 0.15 0.06 0.005 0.005 0.005
60C2 & 65C2 0.15 1.5 0.04 0.04 0.2 0.2 0.15 0.06 0.005 0.005 0.005
70C1 0.26 1.65 0.04 0.04 0.2 0.2 0.15 0.16 0.005 0.005 0.005
70C2 0.15 1.65 0.04 0.04 0.2 0.2 0.15 0.16 0.005 0.005 0.005

Common Grades C Mn P S Al Si Cu Ni Cr Mo V Cb Ti N
CSA 0.1 0.6 0.03 0.035 0.2 0.2 0.15 0.06 0.008 0.008 0.025
CSB 0.02-.15 0.6 0.03 0.035 0.2 0.2 0.15 0.06 0.008 0.008 0.025
CSC 0.08 0.6 0.1 0.035 0.2 0.2 0.15 0.06 0.008 0.008 0.025
BH 0.012 1.5 0.12 0.03 0.2 0.2 0.15 0.06 0.008 0.008 0.025
FSA 0.1 0.5 0.02 0.035 0.2 0.2 0.15 0.06 0.008 0.008 0.025
FSB 0.02-.15 0.5 0.02 0.03 0.2 0.2 0.15 0.06 0.008 0.008 0.025
DDS 0.06 0.5 0.02 0.025 .01 0.2 0.2 0.15 0.06 0.008 0.008 0.025
EDDS 0.02 0.4 0.02 0.02 .01* 0.2 0.2 0.15 0.06 0.1 0.1 0.15
