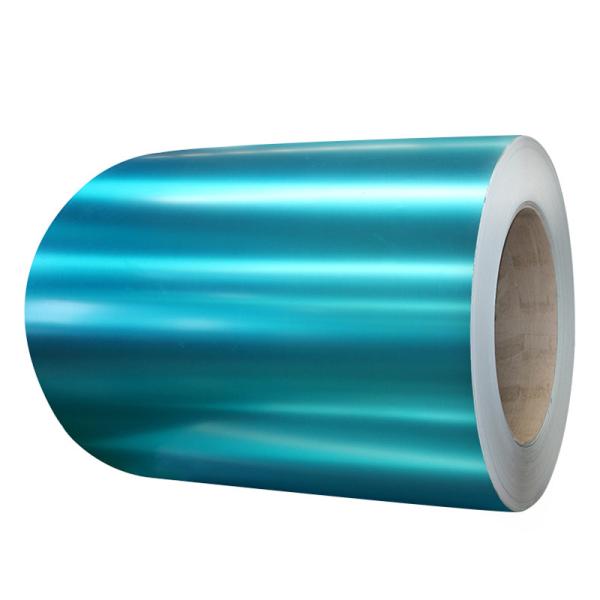

0.5mm-1.2mm PPGI Color Coated Coil HDP DX51D For Cladding And Wall Panel
0.5mm-1.2mm PPGI Color Coated Coil HDP DX51D For Cladding And Wall Panel
0.5mm-1.2mm PPGI Color Coated Coil HDP DX51D For Cladding And Wall Panel
0.5mm-1.2mm PPGI Color Coated Coil HDP DX51D For Cladding And Wall Panel
0.5mm-1.2mm PPGI Color Coated Coil HDP DX51D For Cladding And Wall Panel
0.5mm-1.2mm PPGI Color Coated Coil HDP DX51D For Cladding And Wall Panel
Specifications
Brand Name :
Decho Building Materials
Model Number :
S320GD PRE-PAINTED GAVANIZED STEEL
Certification :
MILL TEST CERTIFICATE
Place of Origin :
China
MOQ :
25 TONS
Price :
USD 780~1050
Payment Terms :
L/C, T/T
Supply Ability :
2000 tons per day
Delivery Time :
30~45days
Packaging Details :
Standard Exporting Packing(Eye to Side) , No pallet Vertical Packing (Eye to Sky) with Wooden Pallet, Horizontal Packing (Eye to Side) with Wooden Pallet
Color :
Weinrot/ Wein red
thickness :
0.5mm~1.2mm
Z-coating :
Z 225~275 g/㎡
steel grade :
S320GD
STEEL GRADE :
DX51D
PAINT SYSTEM :
HDP
Description
Customized Colors 0.50~1.2mm Z50~275 PPGI coil coated steel HDP DX51D for cladding and Wall Panel
Product details :

PPGL, also called Coated Laminated Coil , is a flat metal product coated with a protective and decorative coating. Polymer coatings are available in a wide range of colors, matte, gloss or natural decorative finishes (granite, wood, etc.). Organic coated galvanized steel is corrosion resistant, has excellent mechanical properties and can be formed, pressed or stamped.

Color coated steel sheets are pre-rolled steel sheets. Color coated "wood grain" steel sheets are formed on production lines after a series of processes (such as priming, top coating, printing, etc.) such as cleaning, passivation and drying.

HDP High Resistance Polyester Top Coat has outstanding color fastness and UV resistance, excellent outdoor durability and anti-chalking properties, good film adhesion and weathering resistance for 12-15 years.

It is suitable for industrial plants, warehousing and logistics complexes, roofs and external walls of buildings with high requirements for weather resistance.

Advantages:

Clear and realistic grain, easy processing and molding, corrosion resistance, energy saving and environmental protection, easy to install, safety, etc.

Application areas:

Widely used in office buildings, commercial spaces, hospitals, star hotels, airports, subways and other large public buildings.

Steel Grade:

EN10346-DX51D/ DX52D/ DX53D, S250GD/280GD/350GD/550GD, ASTM A527M, CS-B, SS255-SS550

Paint Brand:

Valpar, AkzoNobel, PPG, Beckers

Paint Coating Patterns:

Gloss Colors - RAL Code

Thickness
GI 0.20mm~1.70mm GL 0.20mm~3.0mm
Width
600mm~1500mm
Zink-Coating
Z40~Z275g/㎡ AZ30~AZ200g/㎡
Paint Structure
2/1, 2/2, 3/2, 3/3
Paint Coating
Top side 15μm~55μm Back side 5μm~30μm

Structural Grades C Mn P S Al Si Cu Ni Cr Mo V Cb Ti N
30,33,36,40 0.25 0.9 0.035 0.04 0.2 0.2 0.15 0.06 0.008 0.008 0.025
36T2,45-80 0.25 1.35 0.035 0.04 0.2 0.2 0.15 0.06 0.008 0.008 0.025
45T2 .02- 0.08 .30- 1.0 .03- .07 0.025 .02- .08 0.6 0.2 0.2 0.15 0.06 0.008 0.008 0.025 .01- .03

HSLA Grades C Mn P S Al Si Cu Ni Cr Mo V Cb Ti N
45C1 0.22 1.35 0.04 0.04 0.2 0.2 0.15 0.06 0.005 0.005 0.005
45C2 0.15 1.35 0.04 0.04 0.2 0.2 0.15 0.06 0.005 0.005 0.005
50C1 0.23 1.35 0.04 0.04 0.2 0.2 0.15 0.06 0.005 0.005 0.005
50C2 & 55C2 0.15 1.35 0.04 0.04 0.2 0.2 0.15 0.06 0.005 0.005 0.005
55C1 0.25 1.35 0.04 0.04 0.2 0.2 0.15 0.06 0.005 0.005 0.005
60C1 & 65C1 0.26 1.5 0.04 0.04 0.2 0.2 0.15 0.06 0.005 0.005 0.005
60C2 & 65C2 0.15 1.5 0.04 0.04 0.2 0.2 0.15 0.06 0.005 0.005 0.005
70C1 0.26 1.65 0.04 0.04 0.2 0.2 0.15 0.16 0.005 0.005 0.005
70C2 0.15 1.65 0.04 0.04 0.2 0.2 0.15 0.16 0.005 0.005 0.005

Common Grades C Mn P S Al Si Cu Ni Cr Mo V Cb Ti N
CSA 0.1 0.6 0.03 0.035 0.2 0.2 0.15 0.06 0.008 0.008 0.025
CSB 0.02-.15 0.6 0.03 0.035 0.2 0.2 0.15 0.06 0.008 0.008 0.025
CSC 0.08 0.6 0.1 0.035 0.2 0.2 0.15 0.06 0.008 0.008 0.025
BH 0.012 1.5 0.12 0.03 0.2 0.2 0.15 0.06 0.008 0.008 0.025
FSA 0.1 0.5 0.02 0.035 0.2 0.2 0.15 0.06 0.008 0.008 0.025
FSB 0.02-.15 0.5 0.02 0.03 0.2 0.2 0.15 0.06 0.008 0.008 0.025
DDS 0.06 0.5 0.02 0.025 .01 0.2 0.2 0.15 0.06 0.008 0.008 0.025
EDDS 0.02 0.4 0.02 0.02 .01* 0.2 0.2 0.15 0.06 0.1 0.1 0.15

0.5mm-1.2mm PPGI Color Coated Coil HDP DX51D For Cladding And Wall Panel0.5mm-1.2mm PPGI Color Coated Coil HDP DX51D For Cladding And Wall Panel0.5mm-1.2mm PPGI Color Coated Coil HDP DX51D For Cladding And Wall Panel
