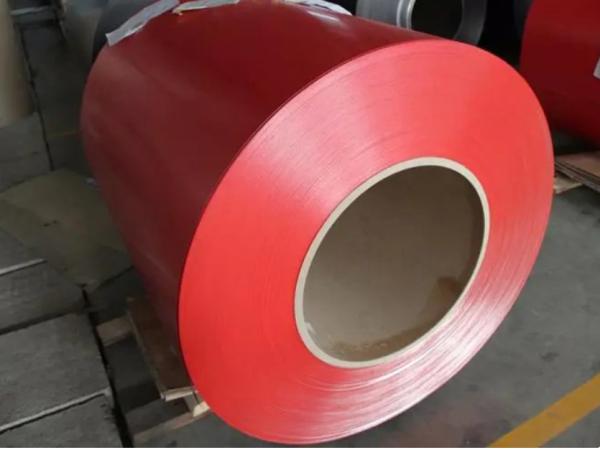

Prepainted Galvalume Steel AZ120 PPGL Steel Coil SMP DX51D For Metal Wall Panels
Prepainted Galvalume Steel AZ120 PPGL Steel Coil SMP DX51D For Metal Wall Panels
Prepainted Galvalume Steel AZ120 PPGL Steel Coil SMP DX51D For Metal Wall Panels
Prepainted Galvalume Steel AZ120 PPGL Steel Coil SMP DX51D For Metal Wall Panels
Prepainted Galvalume Steel AZ120 PPGL Steel Coil SMP DX51D For Metal Wall Panels
Prepainted Galvalume Steel AZ120 PPGL Steel Coil SMP DX51D For Metal Wall Panels
Specifications
Brand Name :
Decho Building Materials
Model Number :
S320GD PRE-PAINTED GAVALUME STEEL
Certification :
MILL TEST CERTIFICATE、ISO9001-2008、SGS、BV
Place of Origin :
China
MOQ :
25 TONS
Price :
USD 700~1050
Payment Terms :
L/C, T/T
Supply Ability :
500 tons per day
Delivery Time :
30~45days
Packaging Details :
Standard Exporting Packing(Eye to Side) , No pallet Vertical Packing (Eye to Sky) with Wooden Pallet, Horizontal Packing (Eye to Side) with Wooden Pallet
Color :
RED
thickness :
0.5mm~1.2mm
Z-coating :
AZ50~180g/㎡
steel grade :
S320GD
STEEL GRADE :
DX51D
PAINT SYSTEM :
SMP
Description
Prepainted Galvalumesteel AZ120 PPGL Steel Coil SMP DX51D For Metal wall panels
Color-coated coils are products made from hot-dip galvanized steel sheet, hot-dip aluminized steel sheet or electrolytically galvanized steel sheet as the base material, which, after surface pretreatment (degreasing and conversion treatment), is coated with one or more layers of colored coating and baked and cured. It is also available in various steel sheet coils painted in different colors, called color-coated coils.
Classification


According to the substrate: cold rolled substrate, hot-dip galvanized substrate, electro-galvanized substrate, aluminum zinc plated substrate, etc.

According to the type of coating: polyester, silicone-modified polyester, vinylidene fluoride (fluorocarbon), plastisol.

According to the color: it can be divided into many kinds according to the user's requirements, such as white-gray, scarlet, sea-orchid, porcelain-orchid, withered-yellow, ivory-white, deep-bean-green, sky-orchid, ivory-white and so on.

According to the surface state: coated board, embossed board, printed board, etc.

Product features
(1) Longer service life than galvanized sheet metal;
(2) Good heat resistance than galvanized steel at high temperatures; not easy to change color;
(3) Good heat reflection;
(4) Processing and coating properties similar to hot-dip galvanized steel; (5) Good welding properties.
(5) Good welding performance.
(6) Excellent economy, performance and competitive price. As a result, architects, engineers and manufacturers widely use zinc-aluminum coated steel sheets in industrial buildings, steel structures and civil engineering equipment, including garage doors, gutters and roofs.

Steel Grade:

EN10346-DX51D/ DX52D/ DX53D, S250GD/280GD/350GD/550GD, ASTM A527M, CS-B, SS255-SS550

Paint Brand:

Valpar, AkzoNobel, PPG, Beckers

Paint Coating Patterns:

Gloss Colors - RAL Code

Structural Grades C Mn P S Al Si Cu Ni Cr Mo V Cb Ti N
30,33,36,40 0.25 0.9 0.035 0.04 0.2 0.2 0.15 0.06 0.008 0.008 0.025
36T2,45-80 0.25 1.35 0.035 0.04 0.2 0.2 0.15 0.06 0.008 0.008 0.025
45T2 .02- 0.08 .30- 1.0 .03- .07 0.025 .02- .08 0.6 0.2 0.2 0.15 0.06 0.008 0.008 0.025 .01- .03

HSLA Grades C Mn P S Al Si Cu Ni Cr Mo V Cb Ti N
45C1 0.22 1.35 0.04 0.04 0.2 0.2 0.15 0.06 0.005 0.005 0.005
45C2 0.15 1.35 0.04 0.04 0.2 0.2 0.15 0.06 0.005 0.005 0.005
50C1 0.23 1.35 0.04 0.04 0.2 0.2 0.15 0.06 0.005 0.005 0.005
50C2 & 55C2 0.15 1.35 0.04 0.04 0.2 0.2 0.15 0.06 0.005 0.005 0.005
55C1 0.25 1.35 0.04 0.04 0.2 0.2 0.15 0.06 0.005 0.005 0.005
60C1 & 65C1 0.26 1.5 0.04 0.04 0.2 0.2 0.15 0.06 0.005 0.005 0.005
60C2 & 65C2 0.15 1.5 0.04 0.04 0.2 0.2 0.15 0.06 0.005 0.005 0.005
70C1 0.26 1.65 0.04 0.04 0.2 0.2 0.15 0.16 0.005 0.005 0.005
70C2 0.15 1.65 0.04 0.04 0.2 0.2 0.15 0.16 0.005 0.005 0.005

Common Grades C Mn P S Al Si Cu Ni Cr Mo V Cb Ti N
CSA 0.1 0.6 0.03 0.035 0.2 0.2 0.15 0.06 0.008 0.008 0.025
CSB 0.02-.15 0.6 0.03 0.035 0.2 0.2 0.15 0.06 0.008 0.008 0.025
CSC 0.08 0.6 0.1 0.035 0.2 0.2 0.15 0.06 0.008 0.008 0.025
BH 0.012 1.5 0.12 0.03 0.2 0.2 0.15 0.06 0.008 0.008 0.025
FSA 0.1 0.5 0.02 0.035 0.2 0.2 0.15 0.06 0.008 0.008 0.025
FSB 0.02-.15 0.5 0.02 0.03 0.2 0.2 0.15 0.06 0.008 0.008 0.025
DDS 0.06 0.5 0.02 0.025 .01 0.2 0.2 0.15 0.06 0.008 0.008 0.025
EDDS 0.02 0.4 0.02 0.02 .01* 0.2 0.2 0.15 0.06 0.1 0.1 0.15
