Specifications
Brand Name :
Decho
Model Number :
Grade 50 / S350GD
Certification :
ISO9001
Place of Origin :
China
MOQ :
25 MT
Price :
850
Payment Terms :
L/C, T/T, D/A, D/P, Western Union
Supply Ability :
600 MT/TON
Delivery Time :
30-40 DAYS
Packaging Details :
Standard Exporting Package with Wooden Pallet
Usage :
Cold Weather Roof Panels
Top Coating :
5+25micron
Paint Brand :
Sherwin-Williams, PPG,AkzoNobel, Beckers, Valspar
Texture Type :
Matt / Wrinkle
Coating Type :
Prepainted
Steel Grade :
S320GD / Grade 33
Base Metal :
Hot-dip galvanized steel, Galvalume steel, Cold rolled steel
Approved :
BV /SGS Certification
Paint Thickness :
Top: 10-35 μm Back: 5-14 μm
Coating Thickness :
15-55um
Colour Code :
Matt RAL8017 Chocolate Brown
Zn Coated :
275g/㎡/ AZ165
Application :
Roofing, Wall Cladding, Ceiling, etc.
Warranty :
40 years
Description

40 Years Warranty AZ150 PPGL Matt Textured Steel Exterior Cladding Corrugated Sheet

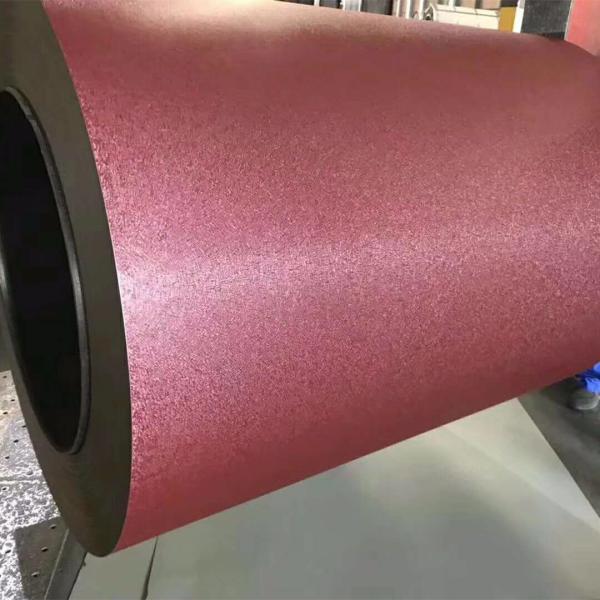

Matt Textured Colour Coated Steel Sheet

Matt Textured colour coated steel plate is a hot-dip galvanized alloy steel plate as a substrate, after the surface of continuous roller coating production method, the use of adding special additives to the coil topcoat, after baking to produce like a fishing net-like pattern effect, can be professionally customized according to the customer's requirements of a variety of different sizes, different depths and shades of different colours of the texture pattern.

Textured steel materials are used across a wide range of industries and applications due to their unique combination of aesthetic appeal, durability, and functional benefits. Here are some key areas where textured steel materials are commonly used:

Architectural and Building Applications

- Exterior Cladding: Textured steel is often used for building façades, giving a modern, sleek appearance while offering enhanced durability against weather conditions.

- Roofing: Textured steel roofing is popular due to its aesthetic qualities, glare reduction, and increased resistance to scratches and dents. This is particularly common in residential and commercial buildings.

- Wall Panels: Interior wall panels in industrial or commercial spaces benefit from textured steel for both durability and visual interest.

AZ150 PPGL Matt Textured Steel Exterior Cladding Corrugated SheetAZ150 PPGL Matt Textured Steel Exterior Cladding Corrugated SheetAZ150 PPGL Matt Textured Steel Exterior Cladding Corrugated Sheet

Detailed Parameters:

Pre-Painted Galvalume Steel Coils
Commercial Quality Steel ASTM A755M-03 EN10327-2004 JIS G 3322:2012
CS DX51D+AZ CGLCC
Structural Quality Steel SS GRADE 230 S220GD+AZ CGLC340
SS GRADE 255 S250GD+AZ CGLC400
SS GRADE 275 S280GD+AZ CGLC440
SS GRADE 340 S320GD+AZ CGLC490
SS GRADE 550 S350GD+AZ CGLC570
  S550GD+AZ
Pre-Painted Galvanized Steel Coils
Commercial Quality Steel ASTM A755M-03 EN10327-2004 JIS G 3312:2012
CS DX51D+Z CGCC
Structural Quality Steel SS GRADE 230 S220GD+Z CGC340
SS GRADE 255 S250GD+Z CGC400
SS GRADE 275 S280GD+Z CGC440
SS GRADE 340 S320GD+Z CGC490
SS GRADE 550 S350GD+Z CGC570
  S550GD+Z
SPECFICATION
  PRE-PAINTED GALVANIZED STEEL COIL PRE-PAINTED ALUZINC STEEL COIL
Thickness 0.15MM--1.50MM(BMT) 0.15MM--1.50MM(BMT)
Width 900MM-1340MM 900MM-1340MM
Zinc/AZ 30g/m2-275g/m2 30g/m2-185g/m2
Base Metal Galvanized Steel Coil Galvalume/ Aluzinc Steel Coil
Paint Coating System POLYESTER(PE),RMP, SMP,Super-SMP, HDP,Super HDP, PVDF
Color RAL / Customized
Coil weight 1.5MT-10MT
Coil ID 508MM OR 610MM
* HARD QUALITY GALVANIZED STEEL(HRB75-HRB90) AVAILABLE ON CUSTOMER'S REQUEST

AZ150 PPGL Matt Textured Steel Exterior Cladding Corrugated SheetAZ150 PPGL Matt Textured Steel Exterior Cladding Corrugated SheetAZ150 PPGL Matt Textured Steel Exterior Cladding Corrugated Sheet

Paint Suppliers & Partners:

We only choose the top-level paint suppliers for our pre-painted steel coils and sheets,

AkzoNobel, Sherwin-Williams Valspar, Beckers, PPG Industries, Nippon, KCC are our solid paint suppliers.

Their best paint materials decide our steel coils quality.

AZ150 PPGL Matt Textured Steel Exterior Cladding Corrugated SheetAZ150 PPGL Matt Textured Steel Exterior Cladding Corrugated SheetAZ150 PPGL Matt Textured Steel Exterior Cladding Corrugated SheetAZ150 PPGL Matt Textured Steel Exterior Cladding Corrugated Sheet

Package & Delivery Shipment :

Delivery time: 30 days deliver to loading port

Shipment Methods: Container, Breakbulk, Railway, Trucks

AZ150 PPGL Matt Textured Steel Exterior Cladding Corrugated SheetAZ150 PPGL Matt Textured Steel Exterior Cladding Corrugated Sheet
