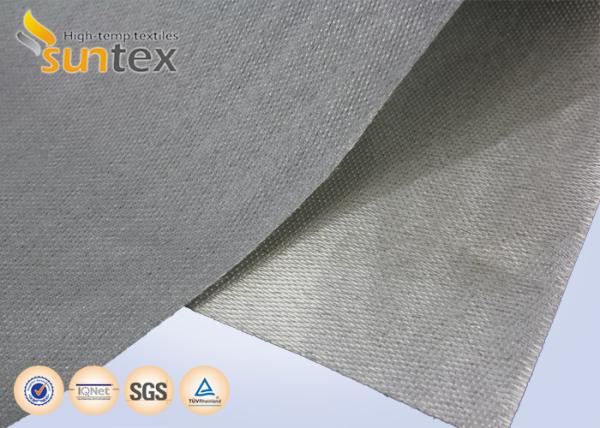

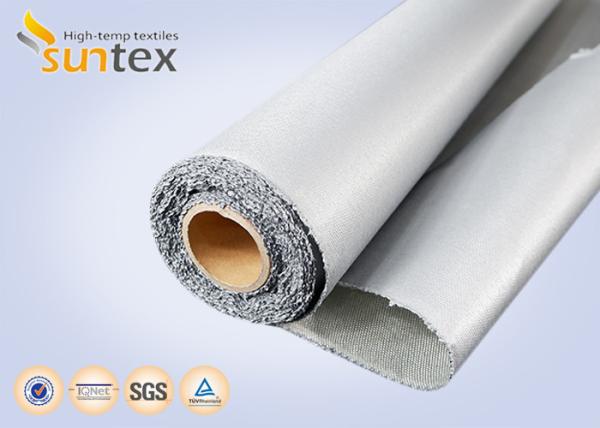

High Temperature Resistant PU Coated Fiberglass Fabric 0.7mm For Fireproof Blanket
High Temperature Resistant PU Coated Fiberglass Fabric 0.7mm For Fireproof Blanket
High Temperature Resistant PU Coated Fiberglass Fabric 0.7mm For Fireproof Blanket
High Temperature Resistant PU Coated Fiberglass Fabric 0.7mm For Fireproof Blanket
High Temperature Resistant PU Coated Fiberglass Fabric 0.7mm For Fireproof Blanket
High Temperature Resistant PU Coated Fiberglass Fabric 0.7mm For Fireproof Blanket
Specifications
Brand Name :
SUNTEX
Model Number :
GF660S-PU113-2040
Place of Origin :
China
MOQ :
20 rolls
Payment Terms :
T/T; L/C, Paypal...
Supply Ability :
500000sqm/month
Delivery Time :
5-20 days
Packaging Details :
Each roll in carton, several cartons in a pallet
Weight :
690g/sqm
Width :
1000mm 1200mm 1520mm 2000mm
Thickness :
0.7mm
Color :
Silver Grey
Weave :
8H Satin
Temperature Resistance /Working Temperature :
750℃ 1400℉
Coated :
PU one side
Fiberglass :
E-glass Stainless Steel Wire Reinforced Fiberglass
Description

High Temperature Resistant Fabrics PU Coated Fiberglass Fabric 0.7mm Fiberglass Fireproof Blanket

Introduce

GF660S-PU113-2040 is a S.S wire reinforced fiberglass fabric with a formulated polyurethane aluminum polymer which provides a heat reflecting surface as well as other properties for the manufacturer of smoke curtain, heat shield and other types of fire control systems.

Advantage

1. Good certified fire resistance.

2. Silver grey color. Various color available.

3. Easy to be used, sewn and fabricated.

4. Good abrasion resistance property.

5. Good tensile strength.

6. Thickness, weight, weave, all can be customized base on your application.

High Temperature Resistant PU Coated Fiberglass Fabric 0.7mm For Fireproof Blanket

Data

Weight 690 g/m2
Thickness 0.7 mm
Width 1000mm 1200mm 1520mm 2000mm
Coated PU
Color Silver Grey
Fire resistance Good
Working temperature Basic fabric 550 ℃, PU coating 180 ℃.
Weave 8H Satin
Yarn warp EC9 33 tex 2*2
Yarn weft EC9 33 tex 2*2
Construction warp 16.5±1 ends/cm
Construction weft 14.5±1 ends/cm
Fiberglass E-glass Stainless Steel Wire Reinforced Fiberglass

Applications

Smoke curtain

Fire blanket

Expansion joint

Reusable thermal insulation cover

Thermal insulation pad

Air duct

Related Products

Style No. Weight Thickness Color Coating
g/m2 oz/yd2 mm inch
GF200P-PU210-2001 220 6.5 0.21 0.0082 White 2 sides
GF430P-PU213-2004 460 13.5 0.41 0.0161 Silver grey 2 sides
GF430P—PU213-2005 460 13.5 0.40 0.015 Silver Grey 2 sides
GF430P-PU21A-2006 460 13.5 0.41 0.0161 Blue/Black 2 sides
GF430P—PU21B-2007 460 13.5 0.40 0.015 Grey White 2 sides
GF430P-PU223-2010 490 14.5 0.45 0.0177 Blue/Black 2 sides
GF660—PU223-2016 720 21 0.71 0.0275 Silver Grey 2 sides
TGF580-PU113-2019 620 18.3 0.77 0.0303 Silver grey 1 side
GF800C-PU223-2023 880 26 0.9 0.0354 Silver grey 2 sides
TGF1020—PU111-2025 1070 31.5 1.5 0.0590 Green 1 side
GF660S-PU213-2036 710 20.9 0.7 0.0276 Silver grey 2 sides
GF660S—PU113-2040 790 23 0.70 0.027 Grey 1 side
SL600-PU113-2044 630 18.6 0.7 0.0276 Silver grey 1 side
TGF1000P-PU223-2049 1100 32.4 1.2 0.0472 Silver grey 2 sides
