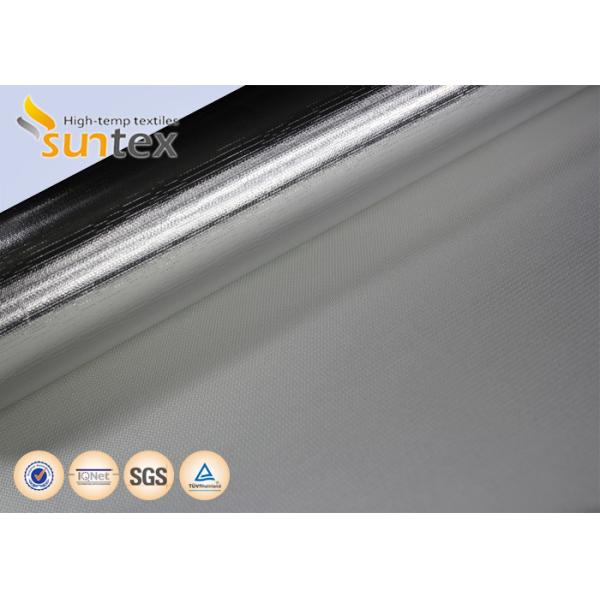

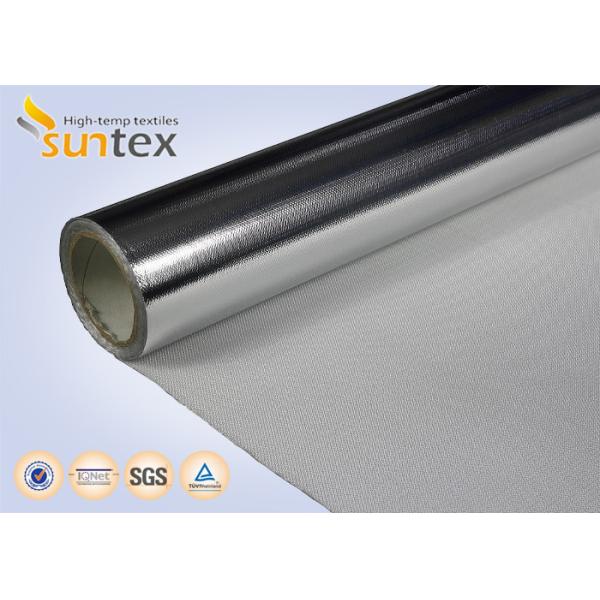

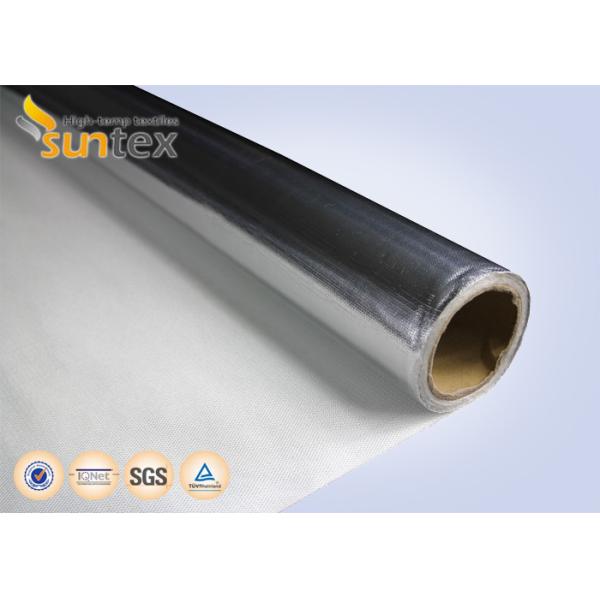

0.4mm Insulation Blanket Aluminum Foil Fiberglass Cloth 550C High Thermal Flange Cover
0.4mm Insulation Blanket Aluminum Foil Fiberglass Cloth 550C High Thermal Flange Cover
0.4mm Insulation Blanket Aluminum Foil Fiberglass Cloth 550C High Thermal Flange Cover
0.4mm Insulation Blanket Aluminum Foil Fiberglass Cloth 550C High Thermal Flange Cover
0.4mm Insulation Blanket Aluminum Foil Fiberglass Cloth 550C High Thermal Flange Cover
0.4mm Insulation Blanket Aluminum Foil Fiberglass Cloth 550C High Thermal Flange Cover
Specifications
Brand Name :
SUNTEX
Model Number :
GF430-AL114-6002
Place of Origin :
China
MOQ :
20 rolls
Payment Terms :
T/T; L/C, Paypal...
Supply Ability :
500000sqm/month
Delivery Time :
5-20 days
Packaging Details :
Each roll in carton, several cartons in a pallet
Color :
Silver
Application :
Fittings and flange covers
Weight :
450g/sq.mtr
Working temperature :
Up to 550 C
Treatment :
Aluminum foil single side
Property :
Heat resistant
Description

0.4mm Insulation Blanket Aluminum Foil Fiberglass Cloth 550C High Thermal Flange Cover

Product Description

Aluminum foil/film laminated fiberglass fabrics

The combination of laminating an aluminum metallic/film heat shield to a layer of protective fiberglass insulation, using fiberglass as the base cloth and special fire-resistant adhesive agent, it can protect personnel or equipment by reflecting radiant heat. Our aluminum foil coated fiberglass cloth has many excellent properties such as the smooth surface on the aluminum foil, non-water permeability, good hermetic and weather resistance, strong light reflection, good stretching resistance in length and breadth, non-breath ability.

-One side or both sides aluminum foil/film laminated available.

-The thickness of aluminum foils available from 0.0007mm to 3mm

-Width of fabrics available from 1000mm to 3000mm.

Main applications:

1.Thermal insulating materials of the steam heating pipelines
2.Fireproof packing materials
3.Wrapping materials of oil transportation pipelines and steam pipelines

4.Heat-retardant curtains or screens

5.Thermal insulation covers, mattress, and pads

6.Welding/fire protection

7.Safety cloth and apron

8.Other fire and smoke control systems

BASE FABRIC Base fabric style No. GF430
(Metric) (English) Test methods
Weave 4H Satin Crowfoot
Yarn
Warp EC9 33 1*4 ECG 150 1/4
Weft EC9 33 1*4 ECG 150 1/4
Construction
Warp 18 ends /cm 48 ± 3 ends/inch
Weft 12.6 picks /cm 32 ± 3 picks/inch
Weight 430 ± 20 g/m2 12.6 ± 0.58 oz/yd2 ASTM D3776-96
Thickness 0.37 ± 0.02 mm 0.0145 ± 0.0008 inch ASTM D1777-96
COATED FABRIC Coating style No. AL114-6002
Coating Aluminum foil (14 microns) laminated ,one side
Weight 460 ± 20 g/m2 13.5 ± 0.59 oz/yd2 ASTM D3776-96
Thickness 0.40 ± 0.03 mm 0.04 ± 0.0012 inch ASTM D1777-96
Color Silver
Flame resistance Non-combustible
Temp resistance

Glass fabric up to 5500C (10000F)

Aluminum foil up to 1500C (3000F)


RELATED PRODUCT

PRODUCT SELECTION GUIDE

Style No. Weight Thickness
(g/m2) Oz/yd) (mm) (inch)
GF200-AL114--6001 250 7.3 0.21 0.08
GF430-AL114--6002 470 13.8 0.42 0.016
GF580-AL122--6005 630 18.5 0.75 0.03
TGF1000-AL118--6007 1050 31 1.5 0.059
