Chemical Resistant Ptfe Hashima Fusing Machine Belt Customized Size Ptfe Fusing

Specifications

Brand Name :

Suntex

Model Number :

SL1200

Place of Origin :

Jiangsu, China

MOQ :

Negotiable

Price :

Negotiable

Payment Terms :

L/C, D/P, T/T

Supply Ability :

300000m/month

Delivery Time :

5-20 days

Packaging Details :

Fabric rolls packed in cartons loaded on pallets or according to customers' requirements.

Alkali content :

Alkali Free

Yarn type :

E-Glass

Thickness :

1.3mm

Weight :

1200g/m2

Width :

from 1m to 2m or customized

Weave type :

twill woven or plain woven or customized

Coating :

two sides vermiculite coated

Color :

brown/yellow

Base Material :

silica fiberglass cloth

Standing temperature :

up to 1000 degree C

Good features :

high temperature resistance, good flame retardant ability

Properties :

weatherproof, water repellent, good chemical resistance

Application 1 :

welding and molten metal splash protection, heat and flame shielding

Application 2 :

chemical plants, oil refineries, ports, and industry fields

Description

Chemical Resistant China Supplier Factory Wholesale Ptfe Hashima Fusing Machine Belt Customized Size Ptfe Fusing

Product Description

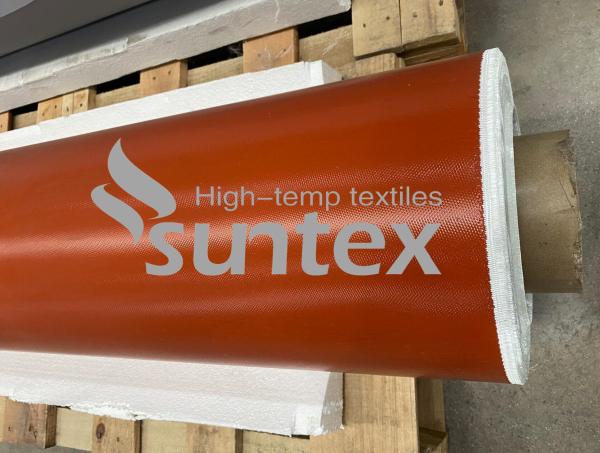

High silica fiberglass fabric can be effectively used at steady-state temperatures in 1000 degrees to 1700 degrees without deterioration of the formation of cristobalite structure. The silica fabric has been specially developed to use in the applications to protect an extreme temperature environment. They also have excellent chemical resistance and electrical insulation properties.

BASE FABRIC	Base fabric style No. SL1200
	(Metric)	(English)	Test methods
Weave	12 H Satin	12 H Satin
Yarn
Warp	EC9 136 1*2	ECG 37 1/2
Weft	EC9 136 1*2	ECG 37 1/3
Construction
Warp	19 ± 1 ends/cm	46 ± 2 ends/inch
Weft	14 ± 1 picks/cm	33 ± 2 picks/inch
Weight	1200 ± 30 g/m²	36± 0.9 oz/yd²	ASTM D3776-96
Thickness	1.4 ± 0.08 mm	0.05± 0.003 inch	ASTM D1777-96

COATED FABRIC	Coating style No.VE216-5022
Coating	Coated with vermiculite , two sides
Weight	1250 ± 30 g/m²	36.76 ± 0.88 oz/yd²	ASTM D3776-96
Thickness	1.45 ± 0.05 mm	0.055 ± 0.0019 inch	ASTM D1777-96
Color	brown
Flame resistance	YES		NF 92507
Temp resistance	The maximum working temperature at 1000 ⁰C The peak Temp.(melt point) 1700 ⁰C

product main application

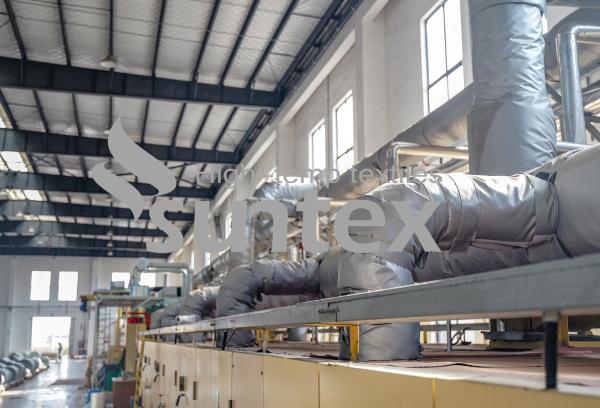

-Insulation jackets, covers, mattress

-Fabric expansion joints

-Fabric ductwork connector

-Fire doors & Fire curtains

-Welding/fire blankets

-Other fire control systems

Product Application
