Specifications
Place of Origin :
China
Brand Name :
Zion communication OR OEM
Certification :
CE, RoHS, VDE, UL, CUL, LPCB
Model Number :
Audio Speaker Cable 14 AWG 4 Cores
MOQ :
20 KM
Packaging Details :
152M, 305M, Pull Box, Pallet
Delivery Time :
25 working days
Payment Terms :
T/T, L/C
Supply Ability :
1000KM / Month
Conductor :
Stranded Bare Copper
Insulation :
CMR Rated PVC
Rip-cord :
Yes
Jacket :
CMR Rated PVC
Color :
Yellow, White, Gray, Purple
Package :
152M, 305M, Pull Box, Pallet
Description

14 AWG 4 Cores CMR Rated PVC Audio Speaker Cable with Stranded OFC Conductor

Quick Detail:

  • Audio Speaker Cable
  • 4 Core Stranded Conductor (19×27)
  • 14 AWG Conductor
  • Stranded Bare Copper Conductor
  • PVC, UL CMR Rated
  • 152M, 305M, Pull Box, Pallet
  • MOQ: 20 KM

Description:

Speaker wire is used to make the electrical connection between loudspeakers and audio amplifiers.

Modern speaker wire consists of two or more electrical conductors individually insulated by plastic

(such as PVC, PE or Teflon) or, less commonly, rubber. The two wires are electrically identical,

but are marked to identify the correct audio signal polarity. Most commonly, speaker wire

comes in the form of zip cord.



The effect of speaker wire upon the signal it carries has been a much-debated topic in the

audiophile and high fidelity worlds. The accuracy of many advertising claims on these points

has been disputed by expert engineers who emphasize that simple electrical resistance is

by far the most important characteristic of speaker wire.

Zion communication using best raw material and best worker to produce Speaker wire to meet high

performance in practical application.Because of good managing methods, Zion communication’S

price of Speaker wire is not high although our quality is really high.

KT1608 Audio Cable 14AWG 4C Stranded Bare Copper PVC CMR (UL) Speaker Cable
Construction Parameters:
Conductor Stranded 14AWG (19×27) Bare Copper
No. of Conductor 4
Nom. Insulation Thickness 0.010"/0.25mm PVC CMR
Nom. Jacket Thickness 0.017"/0.43mm PVC CMR
Overall Cable Diameter 0.287"/7.29mm PVC CMR
Approximate Cable Weight 69 Lbs/1000ft
Flame Rating UL 1666 Riser Flame Test
Electrical Characteristics:
Nom. D.C. R. Resistance @ 20°: 2.7 ohms per 1000ft
Temperature Rating -20° C to 60° C
Operating Voltage 150 V RMS Max
Capacitance Between
Conductors@1KHz
31 pF/ft Nom.
Insulation Colors Black, Red, White, Green
Jacket Colors Grey, Black, Brown, White
RoHS YES
Order Informations:
Marking

Zion communication KT1608 AUDIO CABLE 14AWG 4C Stranded OFC PVC

CMR (UL) Speaker Cable XXX M/FT

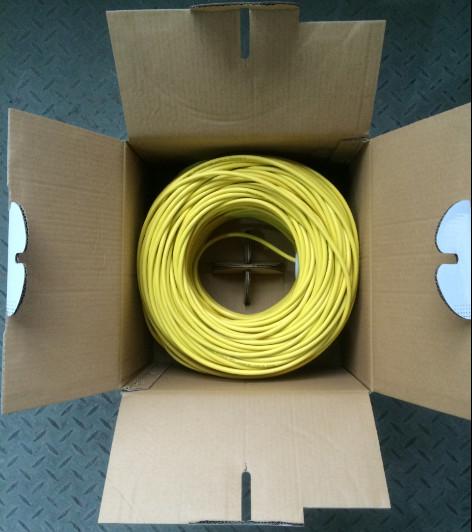

Package 152M, 305M, Pull Box, Pallet
Delivery time Normally 25 days after received the deposit.

Competitive Advantage:

1, From raw materials to final products, we perform intense quality checks to maintain our product quality:

A, Incoming material inspected by QC.

B, Manufacturing Process Control

C: Workers trained daily/weekly/monthly

D: Work instructions manual at each work station

E: 5S system implemented

F: Machine maintenance procedure

G: Quality Control and Final Inspection

The QC staff will check the material, process product

and final product according to the specification or test procedure.

2, Our R&D efforts center on reinforcing and developing element technologies

needed to support the future growth and success for customers and Zion communication.

3, We know customers have urgent needs.

We are skilled at effective communication to interact with customers.

In order to provide prompt service, we can answer for you 7*24 hours.

4, We can Quickly and professionally answer for the inquire

5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us

6, Intime delivery

14 AWG 4 Cores CMR Rated PVC Audio Speaker Cable With Stranded OFC Conductor
