PUR S 17/PUR S 27 Power And Control Cables Flexible PUR Insulated And PUR Jacketed
PUR S 17/PUR S 27 Power And Control Cables Flexible PUR Insulated And PUR Jacketed
Specifications
Brand Name :
Zion communication OR OEM
Model Number :
Flexible Control Cable
Certification :
CE, RoHS, VDE, UL
Place of Origin :
China
MOQ :
10 KM
Payment Terms :
T/T, L/C
Supply Ability :
1000KM / Month
Delivery Time :
25 working days
Packaging Details :
500FT/PULL BOX, 1000FT/Wooden Spool,Pallet
Conductor :
Extra fine stranded bare copper
Insulation :
Polyurethane
Jacket :
Polyurethane
Color :
black
Description

POWER & CONTROL CABLE

https://www.zion-communication.com/Power-and-Control-Cables-products-catalog.html

PUR S 17/PUR S 27

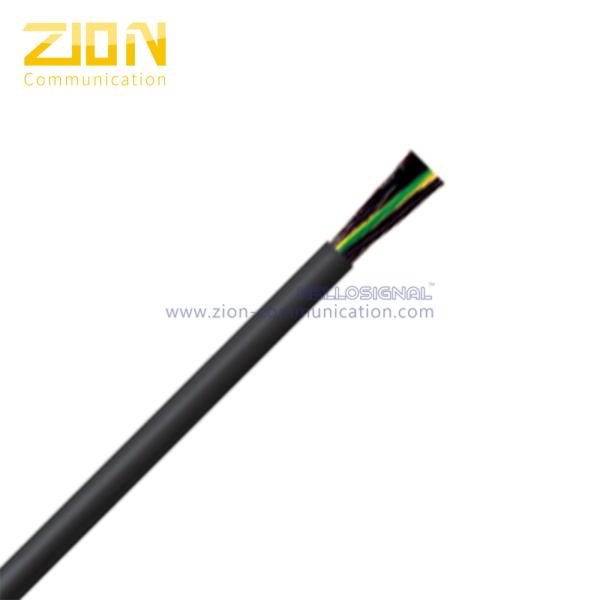

PUR S 17/PUR S 27 Power And Control Cables Flexible PUR Insulated And PUR Jacketed
▉ Application
PUR S 17/PUR S 27 is a highly flexible PUR-insulated
and PUR-jacketed control cable. It has excellent oil and abrasion resistance
and cold-temperature performance.
▉ Recommended Applications
Forestry equipment; farming equipment; utility trucks; cold-temperature applications where abrasion resistance and flexibility are required
▉ Construction
Conductors: Extra fine stranded bare copper
Insulation: Polyurethane
Jacket: Polyurethane; black
▉ Application Advantage
• Very good cold-temperature performance
• Excellent oil and abrasion resistance
• Halogen-free
• Cold climate/rugged applications
▉ Technical data
Minimum Bend Radius for installation : 6 x cable diameter
Temperature Range 30°C to +80°C
Nominal Voltage 300/500V
Test Voltage 3000V
Conductor Stranding Class 6 fine wire
Color Code HELLOSIGNAL® PUR S 17 : Chart 9, page 675
HELLOSIGNAL® PUR S 27 : Numbered conductors
Approvals CE & RoHS
▉ PUR S 17 Product List
Item No. Number of
Conductors		 Nominal Outer(in) Copper.weight (lbs/mft) Approx.weight (lbs/mft)
20 AWG (0.50 mm²)
7142700 2 0.209 7 22
7142701 12 0.378 40 40
19 AWG (0.75 mm²)
7141810 2 0.228 13 11
7141811 3 0.236 19 15
7141812 4 0.264 25 22
7141813 12 0.417 75 64
7141820 15 0.476 94 73
7141821 18 0.500 113 88
7141822 25 0.606 156 121
12 AWG (4.00 mm²)
7141825 2 0.280 18 20
7141826 3 0.287 27 31
7141830 12 0.531 109 117
▉ PUR S 27 Product List
Item No. Number of
Conductors		 Nominal Outer(in) Copper.weight (lbs/mft) Approx.weight (lbs/mft)
20 AWG (0.50 mm²)
7141840 3 0.217 10 11
7141841 4 0.240 13 13
19 AWG (0.75 mm²)
7141845 3 0.236 13 15
7141846 4 0.264 25 22
7141850 5 0.287 31 26
7141851 7 0.339 44 33
7141852 12 0.417 75 58
7141860 25 0.606 156 121
16AWG (1.50 mm²)
7141865 4 0.319 36 40
▉ Order Informations
Marking HELLOSIGNAL PUR S 17/PUR S 27 XXXFT/M
Package 100M/Reel, 300M/Wooden Spool
Delivery time Normally 25 days after received the deposit.
