Specifications
Brand Name :
Zion communication OR OEM
Model Number :
Data Center Equipment
Certification :
ISO, CE, RoHS, UL
Place of Origin :
CHINA
MOQ :
1,000 PCS
Payment Terms :
T/T, L/C
Supply Ability :
30,000 PCS / Month
Delivery Time :
Normally 10 workingdays
Packaging Details :
1 PC/Plastic Bag, PCS/Carton
Model :
Wall Mount Rack Cabinet
Bnad :
Zion Communication
Cord :
ZCNC-02
Color :
Black,Grey
Loading Capacity :
60kg
Description

More detail please visit:

https://www.zion-communication.com/Copper-System-Equipment.html

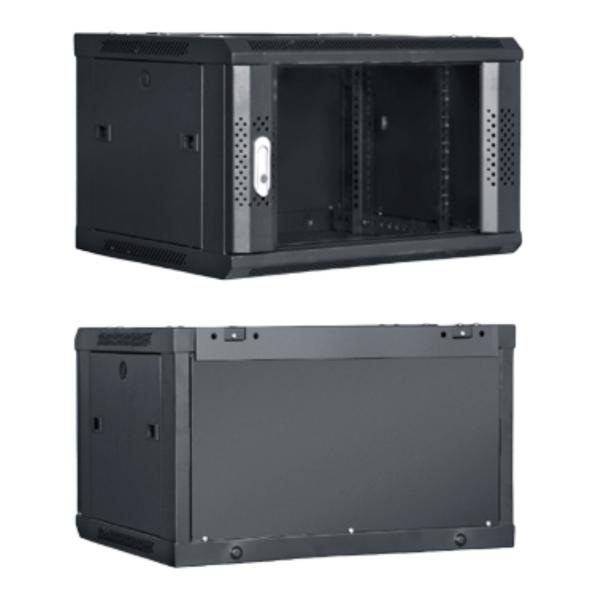

ZCNC-02 Wall Mount Rack Cabinet
Technical Data NC Wall Mount Rack Cabinet -02 , Date Center Accessories , Manufacturer from China - Zion Communiation
Materials:
· SPCC high quality cold rolled steel
· Surface process: degreasing; plckling;
phosphating; spray paint
· Thickness: Mounting profile 1.5mm; Others 1.0-1.2mm
Colour:
· RAL9004 (black); RAL7035(gray)
Standard
· Compliant with ANSI/EIA; RS-310-D; IEC297-2;
DIN41491;PART1; DIN41494;PAR7; GB/T3047.2-92; ETSI.
Also meets 19-inch international universal standards,
metric standards and ETS standards
Features
· Modular design wall cabinet,multiple forms of front door areavailable.
· 19 inch single-open wall cabinet, convenient and simple installation.03
· Steady structure with 60KG static load.
· Front door and side door are easy assembly and disassembled.Andfibers entry from the top and bottom.
· Available in sizes from 4U to 27U as requirements.
· Profiles of 19”could be removed and adjusted.
· Bulk packaging is available to save more space and freight.

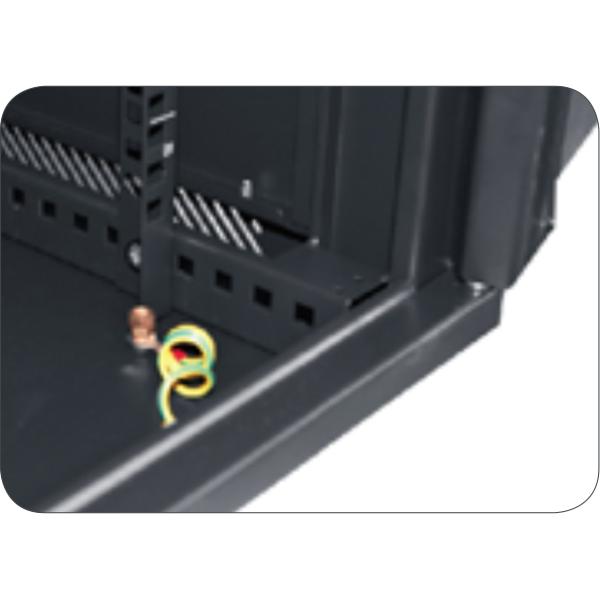

Mian Install the Fitting
NC Wall Mount Rack Cabinet -02 , Date Center Accessories , Manufacturer from China - Zion Communiation NC Wall Mount Rack Cabinet -02 , Date Center Accessories , Manufacturer from China - Zion Communiation NC Wall Mount Rack Cabinet -02 , Date Center Accessories , Manufacturer from China - Zion Communiation

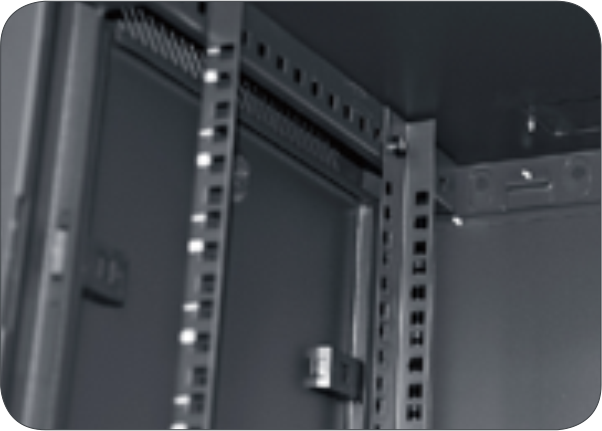

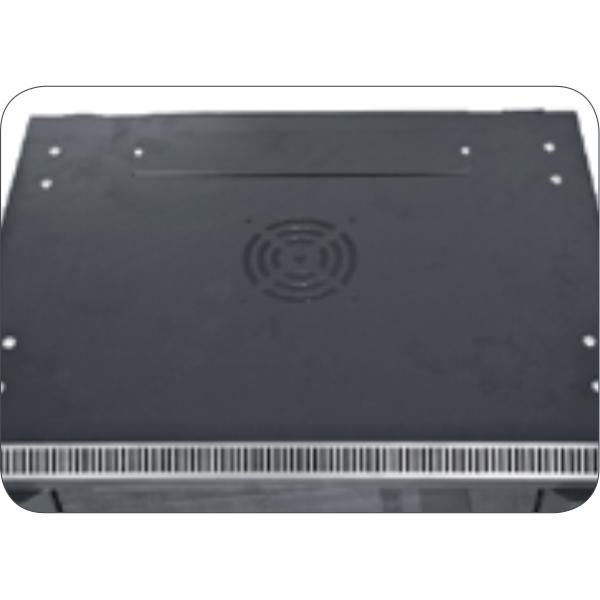

Mounting angle Top cover Mounting profile

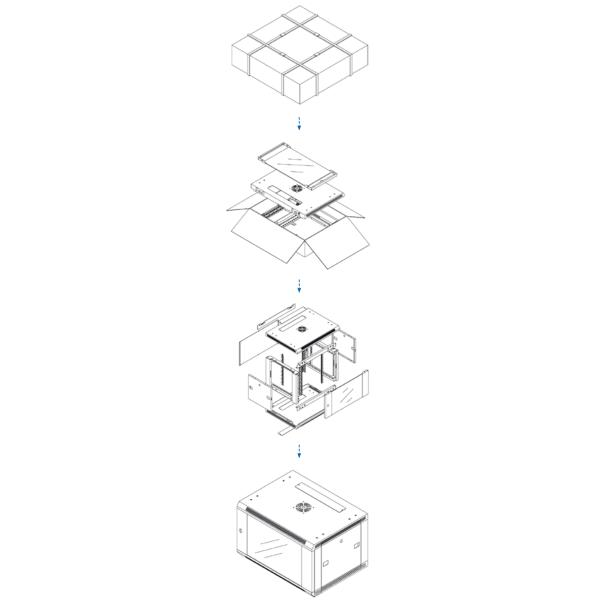

Main Part Pakeage
NC Wall Mount Rack Cabinet -02 , Date Center Accessories , Manufacturer from China - Zion Communiation NC Wall Mount Rack Cabinet -02 , Date Center Accessories , Manufacturer from China - Zion Communiation

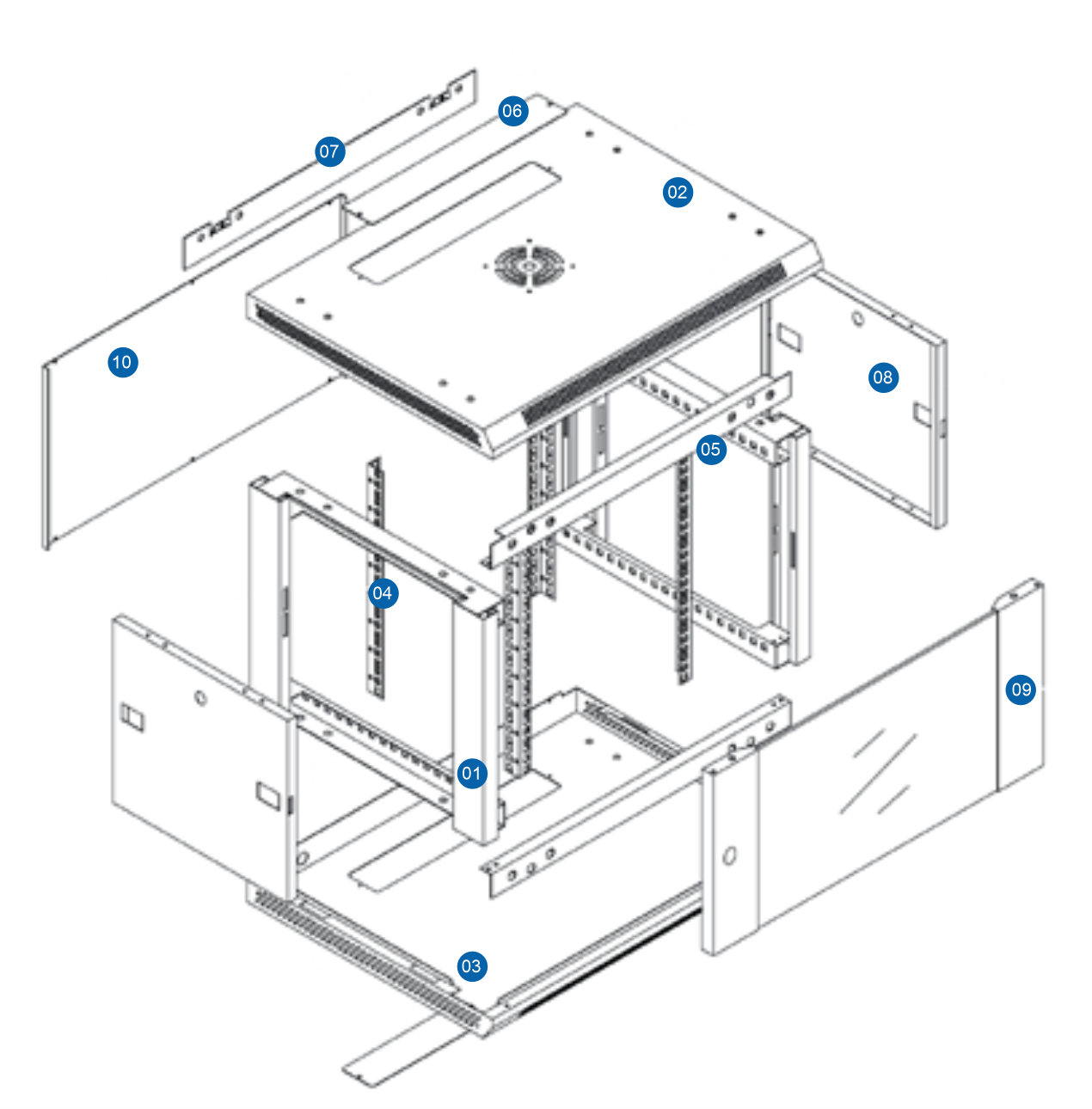

NO. ITEM QTY SPCCT (mm)
1 Frame 2PCS 1.5
2 Top cover 1PCS 1.0
3 Bottom panel 1PCS 1.0
4 Mounting profile 4PCS 1.5
5 Supporting tray 0/2PCS 1.5
6 Panel 2PCS 1.0
7 Hanger 1PCS 1.5
8 Side panel 2PCS 0.8
9 Front door 1PCS 1.2
10 Rear door 1PCS 1.2
Remark: 120 and above are euipped with 2 PCS strengthen panel, while 9u and below are not equipped.
Ordering Information
Model Width
(mm)		 Depth(D) (mm) Height
(mm)		 U Bulk packaging
dimension Unit: M		 Bulk packaging
volume unit: m²
ZCNC.6404-2WMC 600 450 274 4U 0.62x0.47x0.13 0.0379
ZCNC.6504-2WMC 500 0.62x0.57x0.13 0.0459
ZCNC.6604-2WMC 600 0.62x0.62x0.13 0.05
ZCNC.6406-2WMC 600 450 363 6U 0.62x0.47x0.13 0.0379
ZCNC.6506-2WMC 500 0.62x0.57x0.13 0.0459
ZCNC.6606-2WMC 600 0.62x0.62x0.13 0.05
ZCNC.6409-2WMC 600 450 496 9U 0.62x0.47x0.13 0.0379
ZCNC.6509-2WMC 500 0.62x0.57x0.13 0.0459
ZCNC.6609-2WMC 600 0.62x0.62x0.13 0.05
ZCNC.6412-2WMC 600 450 629 12U 0.62x0.65x0.21 0.0846
ZCNC.6512-2WMC 500 0.62x0.65x0.21 0.0846
ZCNC.6612-2WMC 600 0.62x0.65x0.21 0.0846
ZCNC.6415-2WMC 600 450 762 15U 0.62x0.78x0.21 0.1016
ZCNC.6515-2WMC 500 0.62x0.78x0.21 0.1016
ZCNC.6615-2WMC 600 0.62x0.78x0.21 0.1016
ZCNC.6418-2WMC 600 450 896 18U 0.62x0.91x0.21 0.1185
ZCNC.6518-2WMC 500 0.62x0.91x0.21 0.1185
ZCNC.6618-2WMC 600 0.62x0.91x0.21 0.1185
ZCNC.6422-2WMC 600 450 1073 22U 0.62x1.09x0.21 0.1419
ZCNC.6522-2WMC 500 0.62x1.09x0.21 0.1419
ZCNC.6622-2WMC 600 0.62x1.09x0.21 0.1419
ZCNC.6427-2WMC 600 450 1295 27U 0.62x1.31x0.21 0.1706
ZCNC.6527-2WMC 500 0.62x1.31x0.21 0.1706
ZCNC.6627-2WMC 600 0.62x1.31x0.21 0.1706
