N/A Splitter 106kpa Fiber Cross Connect Cabinet 144F Capacity
N/A Splitter 106kpa Fiber Cross Connect Cabinet 144F Capacity
N/A Splitter 106kpa Fiber Cross Connect Cabinet 144F Capacity
N/A Splitter 106kpa Fiber Cross Connect Cabinet 144F Capacity
N/A Splitter 106kpa Fiber Cross Connect Cabinet 144F Capacity
N/A Splitter 106kpa Fiber Cross Connect Cabinet 144F Capacity
N/A Splitter 106kpa Fiber Cross Connect Cabinet 144F Capacity
N/A Splitter 106kpa Fiber Cross Connect Cabinet 144F Capacity
Specifications
Brand Name :
Zion communication OR OEM
Model Number :
Optical System Equipment
Certification :
ISO, CE, RoHS, UL
Place of Origin :
CHINA
MOQ :
1,000 PCS
Payment Terms :
T/T, L/C
Supply Ability :
30,000 PCS / Month
Delivery Time :
Normally 10 workingdays
Packaging Details :
1 PC/Plastic Bag, PCS/Carton
Model :
Fibre Network Unit
Bnad :
HELLOSIGNAL
Cord :
ZCOCC-F144-1/2/3F/2W
Capacity :
144F
Description

144F Fiber Optic Cross Connect Cabinet Outdoor , FTTH Drop Cabinet , From China Manufaturer

More detail please visit:

https://www.zion-communication.com/Fiber-Optical-System-Equipment.html

Fiber Cross Connect Cabinet

Technical Data

Connector Type:

SC FC

Insulated resistance:

≥2*10⁴MΩ/500V(DC)

Atmospheric pressure:

70kpa-106kpa

Mechanical Durability Test:

≥1000 times

Relative humidity:

≤95%(40°C)

Color:

Gray

Operating Temperature:

-40°C~+60°C

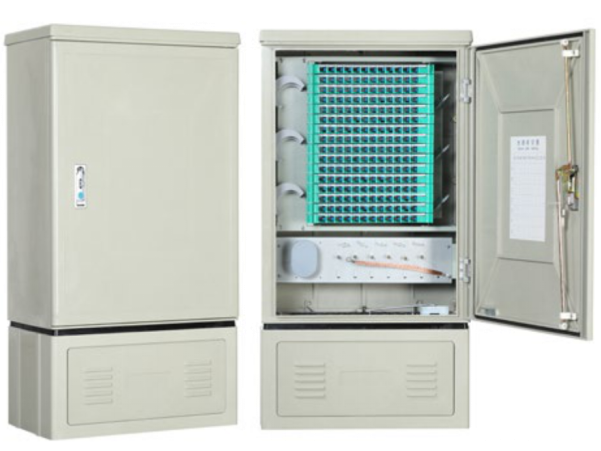

ZCOCC-F144-1F

Detail Information

Material:

SMC

Fiber Optical Splitter:

N/A

Dimension,
W*H*D(mm):

1030*550*308

Number of Trunk
Distribution Modules:

1

Capacity:

144F

Number of Branch
Distribution Modules:

12

Door Type:

Single-Sided front door

Installation:

Floor standing

N/A Splitter 106kpa Fiber Cross Connect Cabinet 144F Capacity

ZCOCC-F144-2F

Detail Information

Material:

SMC

Fiber Optical Splitter:

12*1:8 module PLC splitter

Dimension,
W*H*D(mm):

1030*550*308

Number of Trunk
Distribution Modules:

1

Capacity:

144F

Number of Branch
Distribution Modules:

12

Door Type:

Single-Sided front door

Installation:

Floor standing

N/A Splitter 106kpa Fiber Cross Connect Cabinet 144F Capacity

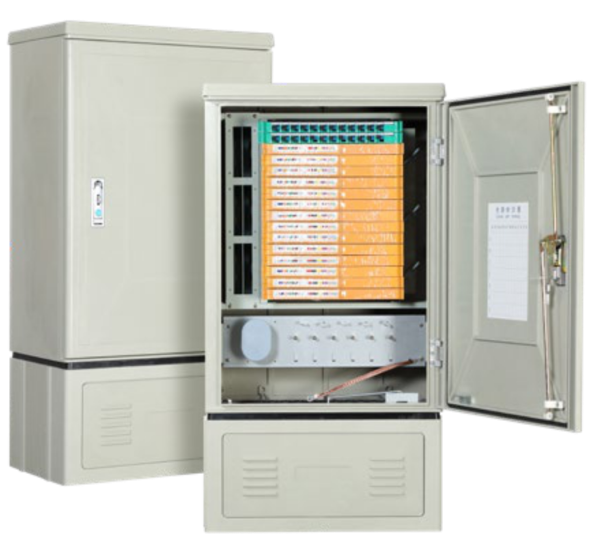

ZCOCC-F144-3F

Detail Information

Material:

SMC

Fiber Optical Splitter:

12*1:8 cassette PLC splitter

Dimension,
W*H*D(mm):

1030*550*308

Number of Trunk
Distribution Modules:

1

Capacity:

144F

Number of Branch
Distribution Modules:

12

Door Type:

Single-Sided front door

Installation:

Floor standing

N/A Splitter 106kpa Fiber Cross Connect Cabinet 144F Capacity

ZCOCC-F144-2W

Detail Information

Material:

SMC

Fiber Optical Splitter:

12*1:8 module PLC splitter

Dimension,
W*H*D(mm):

770*550*308

Number of Trunk
Distribution Modules:

1

Capacity:

144F

Number of Branch
Distribution Modules:

12

Door Type:

Single-Sided front door

Installation:

Wall-mounted

N/A Splitter 106kpa Fiber Cross Connect Cabinet 144F Capacity
