Specifications
Brand Name :
Zion communication OR OEM
Model Number :
Data Center Equipment
Certification :
ISO, CE, RoHS, UL
Place of Origin :
CHINA
MOQ :
1,000 PCS
Payment Terms :
T/T, L/C
Supply Ability :
30,000 PCS / Month
Delivery Time :
Normally 10 workingdays
Packaging Details :
1 PC/Plastic Bag, PCS/Carton
Model :
Server Rack Cabinet
Bnad :
Zion Communication
Cord :
ZCIDC-05
Capacity :
42U
Depth :
770mm, 870mm, 970mm ,1070mm
Description

More detail please visit:

https://www.zion-communication.com/Copper-System-Equipment.html

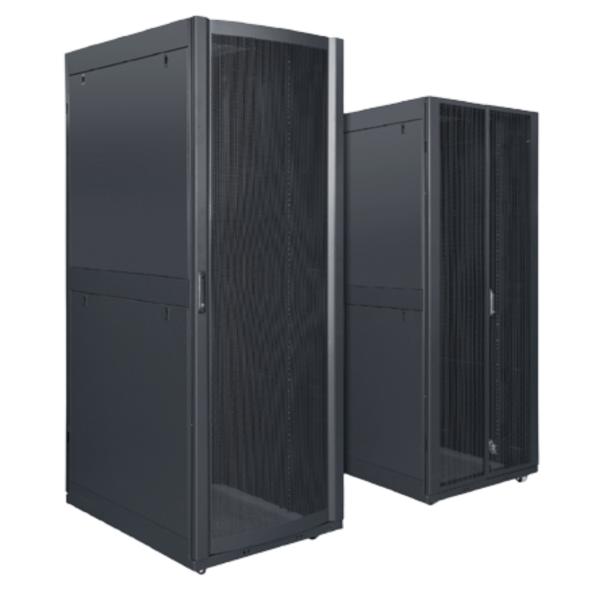

ZCIDC-05 Server Cabinet
Technical Data Server Rack Cabinets IDC-05 42U , Date Center Accessories , from China Manufacturer - Zion Communiation
Materials:
· SPCC high quality cold rolled steel
· Surface process: degreasing; phosphating; spray paint
· Thickness: Mounting profile 2.0mm; Others 1.2-1.5mm
Colour:
· RAL9004 (black); others could be required
Standard
· Compliant with ANSI/EIA; RS-210-D; IEC297-2;
DIN41491;PART1; DIN41494;PAR7;
GB/T2047.2-92; ETSI
Features
· Curved mesh front door with folio mesh rear door ensures ventilation and visibility of the cabinet.
· Movable caster and fixed feet can be used simultaneously, which allow the cabinet to bear about 1200KG.
· Top panel has numerous fixed cable holes, mounting column comes with cable management function.
· Removable doors in all directions are easy to operate for all angles.
· Easy assembly makes system operation very simple.
· Large ventilation area of more than 70% of the door area.
· Height: 42U
· Depth: 770mm, 870mm, 970mm ,1070mm.
· Flexible packaging ensures cabinet’s storage and delivery.
· Best choice for data center.
Mian Install the Fitting
Server Rack Cabinets IDC-05 42U , Date Center Accessories , from China Manufacturer - Zion Communiation Server Rack Cabinets IDC-05 42U , Date Center Accessories , from China Manufacturer - Zion Communiation Server Rack Cabinets IDC-05 42U , Date Center Accessories , from China Manufacturer - Zion Communiation

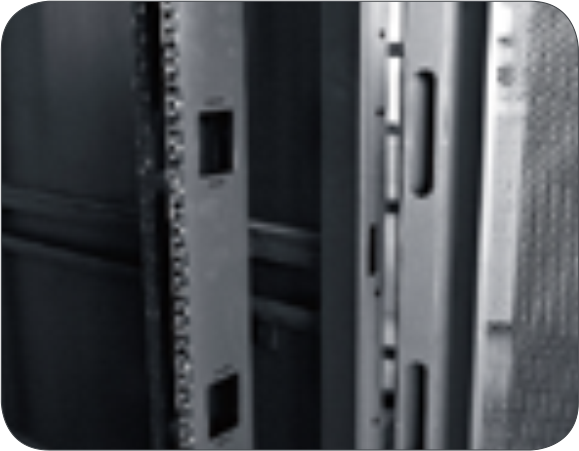

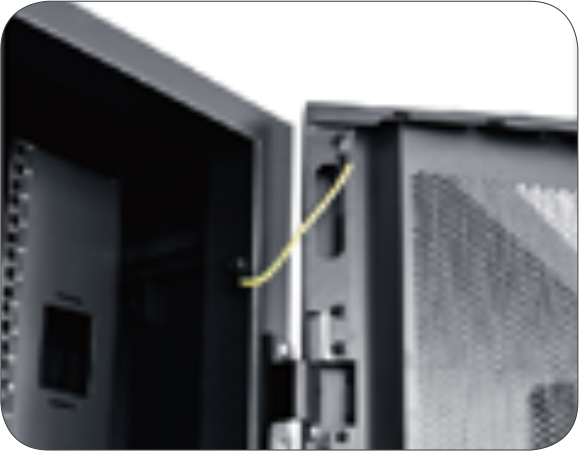

Top cover Ground cable Cable management
Main Part Server Rack Cabinets IDC-05 42U , Date Center Accessories , from China Manufacturer - Zion Communiation
NO. ITEM QTY SPCCT (mm)
1 Frame 2PCS 2.0
2 Mounting angle 6PCS 1.5
3 Mounting profile 4PCS 2.0
4 Top cover 1PCS 1.2
5 Fan tray 1PCS 1.2
6 Fan tray cover 1PCS 1.2
7 Cable entrance cover 4PCS 1.2
8 Supporting tray 4PCS 2.0
9 Hinge 6PCS /
10 Caster 4PCS /
11 Side panel 4SET 1.2
12 Single-open front door 1PCS 1.2
13 Double section rear door 1PCS 1.2
Ordering Information
Server Rack Cabinets IDC-05 42U , Date Center Accessories , from China Manufacturer - Zion Communiation
Model Width
(mm)		 Depth(D) (mm) Height
(mm)		 U
ZCIDC.8842-5 SHSC 800 770 2000 42U
ZCIDC.8942-5 SHSC 870
ZCIDC.8042-5 SHSC 970
ZCIDC.8142-5 SHSC 1070
Remark: Information in the sheet refers to the height of cabinet without castor

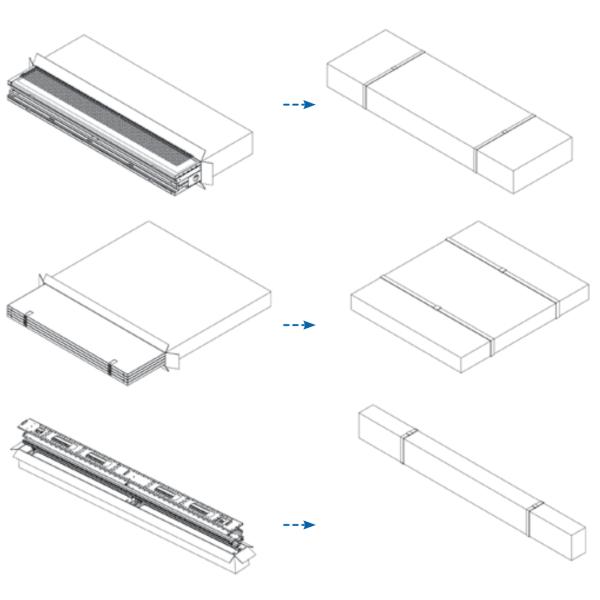

Package Information
Server Rack Cabinets IDC-05 42U , Date Center Accessories , from China Manufacturer - Zion Communiation The door and vertical frame
Side door
Mounting profile
Package Sheet
Model Specification Door and frame(m²) Side door(m²) Mounting profile(m²) CBM
ZCIDC.6842-3 SHSC 600X770X42U 0.2644 0.0578 0.0634 0.3855
ZCIDC.6942-3 SHSC 600X870X42U 0.0663 0.3940
ZCIDC.6042-3 SHSC 600X970X42U 0.0748 0.4025
ZCIDC.6142-3 SHSC 600X1070X42U 0.0833 0.4110
ZCIDC.8842-5 SHSC 800X770X42U 0.3511 0.0578 0.0634 0.4722
ZCIDC.8942-5 SHSC 800X870X42U 0.0663 0.4807
ZCIDC.8042-5 SHSC 800X970X42U 0.0748 0.4892
ZCIDC.8142-5 SHSC 800X1070X42U 0.0833 0.4977
