Specifications
Brand Name :
Zion communication OR OEM
Model Number :
Data Center Equipment
Certification :
ISO, CE, RoHS, UL
Place of Origin :
CHINA
MOQ :
1,000 PCS
Payment Terms :
T/T, L/C
Supply Ability :
30,000 PCS / Month
Delivery Time :
Normally 10 workingdays
Packaging Details :
1 PC/Plastic Bag, PCS/Carton
Model :
Server Rack Cabinet
Bnad :
Zion Communication
Cord :
ZCIDC-01
Capacity :
42U, 47U
Depth :
800mm, 900mm, 1000mm ,1100mm and 1200mm
Description

More detail please visit:

https://www.zion-communication.com/Copper-System-Equipment.html

ZCIDC-01 Server Cabinet
Technical Data
Materials: Date Center , IDC Server Rack 42/47U Cabinet , from China Manufacturer - Zion Communiation
· SPCC high quality cold rolled steel
· Surface process: degreasing; phosphating; spray paint
· Thickness: Mounting profile 2.0mm;
Others 1.2-1.5mm
Colour:
· RAL9004 (black);others could be required
Standard
·Compliant with ANSI/EIA; RS-210-D; IEC297-2;
DIN41491;PART1; DIN41494;PAR7;
GB/T2047.2-92; ETSI
Features

· It is composed of two different size of cabinet (width: 600+300mm, so the total width is 900mm), which makes the

structure stronger and can load about 1000 KG.

· Mesh material in all directions: two piece of front single-door together with rear three side-doors ensure the

cabinet has a good heat dissipation area.

· The installation and disassembly of side doors is fast and convenient, which makes maintenance much easier and

more effcient.
· Movable caster and fixed feet can be used simultaneously, which makes the moving of cabinets easier.

· Replaceable hinges have been installed on the door and protected of top cable holes by a rubber cover, which are

flexible and safe.
· Height: 42U, 47U
· Depth: 800mm, 900mm, 1000mm ,1100mm and 1200mm.
· The depth(25mm/unit) and inner height(1U/unit) are adjustable.
· Flexible packaging ensures cabinet’s storage and delivery.

Mian Install the Fitting
Date Center , IDC Server Rack 42/47U Cabinet , from China Manufacturer - Zion Communiation Date Center , IDC Server Rack 42/47U Cabinet , from China Manufacturer - Zion Communiation Date Center , IDC Server Rack 42/47U Cabinet , from China Manufacturer - Zion Communiation

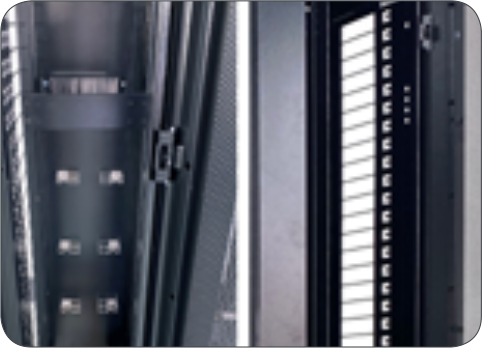

Top cover Cable management

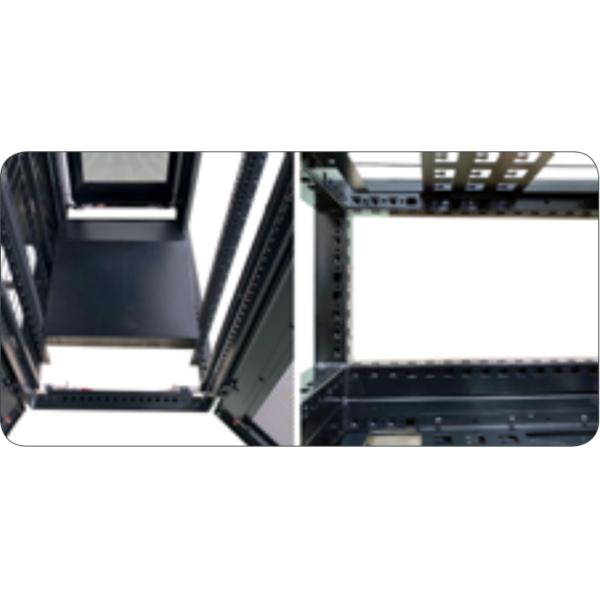

Bottom wind aisle

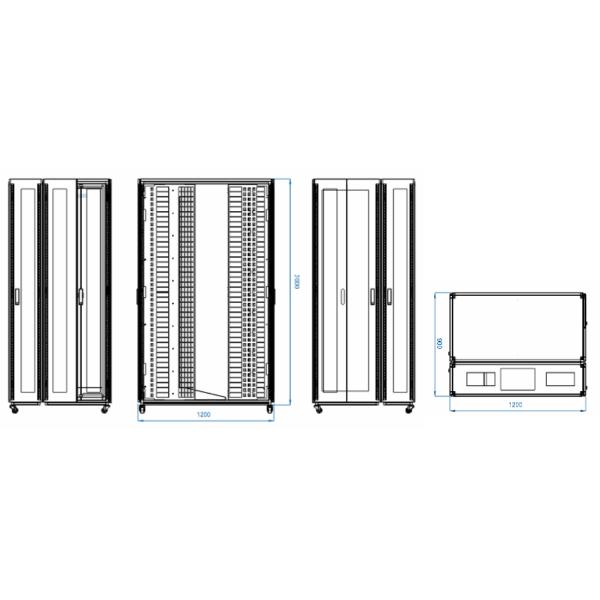

Main Part Date Center , IDC Server Rack 42/47U Cabinet , from China Manufacturer - Zion Communiation
NO. ITEM QTY SPCCT (mm)
1 Frame 1PCS 1.5
2 Side of top cover 1PCS 1.5
3 Side door 1PCS 1.5
4 Front single-door 1PCS 1.2
5 Main cabinet body 1PCS 1.5
6 Side cabinet body 1PCS 1.5
7 Rear double-door 3PCS 1.2
8 Cable managerment slot 1PCS 1.5
9 Side front door 1PCS 1.2
10 Wind aisle 1PCS 1.5
11 Caster 4SET /
Ordering Information
Date Center , IDC Server Rack 42/47U Cabinet , from China Manufacturer - Zion Communiation
Model Width
(mm)		 Depth(D) (mm)

Height

(mm)

 U
ZCIDC.6842-1 SHSC 600 800 1975 42U
ZCIDC.6942-1 SHSC 900
ZCIDC.6042-1 SHSC 1000
ZCIDC.6142-1 SHSC 1100
ZCIDC.6242-1 SHSC 1200
ZCIDC.8842-1 SHSC 800 800 1975 42U
ZCIDC.8942-1 SHSC 900
ZCIDC.8042-1 SHSC 1000
ZCIDC.8142-1 SHSC 1100
ZCIDC.8242-1 SHSC 1200
ZCIDC.9842-1 SHSC 600+300 800 1975 42U
ZCIDC.9942-1 SHSC 900
ZCIDC.9042-1 SHSC 1000
ZCIDC.9142-1 SHSC 1100
ZCIDC.9242-1 SHSC 1200
ZCIDC.6847-1 SHSC 600 800 2175 47U
ZCIDC.6947-1 SHSC 900
ZCIDC.6047-1 SHSC 1000
ZCIDC.6147-1 SHSC 1100
ZCIDC.6247-1 SHSC 1200
ZCIDC.8847-1 SHSC 800 800 2175 47U
ZCIDC.8947-1 SHSC 900
ZCIDC.8047-1 SHSC 1000
ZCIDC.8147-1 SHSC 1100
ZCIDC.8247-1 SHSC 1200
ZCIDC.9847-1 SHSC 600+300 800 2175 47U
ZCIDC.9947-1 SHSC 900
ZCIDC.9047-1 SHSC 1000
ZCIDC.9147-1 SHSC 1100
ZCIDC.9247-1 SHSC
