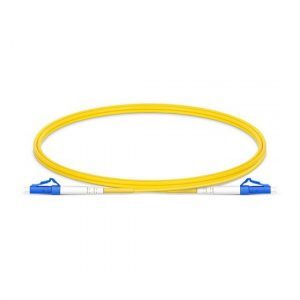

LC To LC Uniboot Fiber Patch Cable G652D G657A1/2 G655 Fiber Unit
LC To LC Uniboot Fiber Patch Cable G652D G657A1/2 G655 Fiber Unit
LC To LC Uniboot Fiber Patch Cable G652D G657A1/2 G655 Fiber Unit
LC To LC Uniboot Fiber Patch Cable G652D G657A1/2 G655 Fiber Unit
LC To LC Uniboot Fiber Patch Cable G652D G657A1/2 G655 Fiber Unit
LC To LC Uniboot Fiber Patch Cable G652D G657A1/2 G655 Fiber Unit
Specifications
Brand Name :
Zion communication OR OEM
Model Number :
LC
Certification :
ISO, CE, RoHS, UL
Place of Origin :
CHINA
MOQ :
1,000 PCS
Payment Terms :
T/T, L/C
Supply Ability :
30,000 PCS / Month
Delivery Time :
Normally 10 workingdays
Packaging Details :
1 PC/Plastic Bag, PCS/Carton
Fiber Unit :
G652D , G657A1/2 , G655
Connector :
LC
Jacket :
LSZH or PVC...
Color :
12 colours as per IEC 60304
Package :
1 PC/Plastic Bag, PCS/Carton
Description

Fiber Optic Patch Cord

SC LC FC ST/APC UPC 0.9/2.0/3.0mm Single Mode/Multimode PVC/LSZH Fiber Optic patch cord/pigtails.

Inquire Now

LC To LC Uniboot Fiber Patch Cable G652D G657A1/2 G655 Fiber Unit

Fiber Patch Cord — LC Uniboot Patch Cords

LC To LC Uniboot Fiber Patch Cable G652D G657A1/2 G655 Fiber Unit

LC To LC Uniboot Fiber Patch Cable G652D G657A1/2 G655 Fiber Unit
LC Uniboot SM LC APC Uniboot

Structure information
Cord Patch Cord & Pigtall
A Side Connector Type SC / LC / ST / FC / D4 / E2000 / MU····
Ferrule Type UPC APC
B Side Connector Type SC / LC / ST / FC / D4 / E2000 / MU····
Ferrule Type UPC APC
Fiber Model SM G652D G657A1 G657A2 G657B3 G655 ·····
MM OM1 OM2 OM3-150 OM3-300 OM4-550 OM5
Cable Diameter Φ0.9mm Φ2.0mm Φ3.0mm ·····
Core Number SX DX ·····
Jacket Material PVC LSZH OFNR RE TPU ·····
Color Yellow Blue Green Customized
Cable Length 1m 2m 3m 5m 10m ·····

Technical Specifcation
Connector Type FC / SC / LC / ST / D4 / E2000 / MU ···
Fiber Type SM MM
Insertion Loss(Typic) ≤0.2 dB ≤0.2 dB
Insertion Loss(Max) ≤0.3 dB ≤0.3 dB
Return Loss APC ≥60 dB ≥35dB
UPC ≥50 dB ≥35dB
Mating Durability ≤0.2 dB
Durability ≥1000 times
Operating Temperature (℃) -20~85
Operating Temperature (℃) -40~85

LC To LC Uniboot Fiber Patch Cable G652D G657A1/2 G655 Fiber Unit LC UPC to LC UPC Duplex G.652.D Single Mode PVC 0.9mm -2m(6ft) FOPC 1111D111-2 (7242101) SM(OS2)G.652.D/G.657.A1/G.657.A2 , ,
LC To LC Uniboot Fiber Patch Cable G652D G657A1/2 G655 Fiber Unit LC UPC to LC UPC Duplex G.652.D Single Mode PVC 2.0mm -2m(6ft) FOPC 1111D112-2(7242102) SM(OS2)G.652.D/G.657.A1/G.657.A2 , ,
LC To LC Uniboot Fiber Patch Cable G652D G657A1/2 G655 Fiber Unit LC UPC to LC UPC Duplex OM1 Multimode PVC 2.0mm -2m(6ft) FOPC 1111D412-2(7242103) OM1 G.652.D/G.657.A1/G.657.A2 , ,
LC To LC Uniboot Fiber Patch Cable G652D G657A1/2 G655 Fiber Unit LC UPC to LC UPC Duplex OM2 Multimode PVC 2.0mm-2m(6ft) FOPC 1111D512-2(7242104)OM2 G.652.D/G.657.A1/G.657.A2 , ,
LC To LC Uniboot Fiber Patch Cable G652D G657A1/2 G655 Fiber Unit LC/UPC to LC/UPC Dulplex OM3 Multimode PVC 2.0mm-1m(3ft) FOPC 1111D612-1(7242105)OM3 G.652.D/G.657.A1/G.657.A2 , ,
LC To LC Uniboot Fiber Patch Cable G652D G657A1/2 G655 Fiber Unit LC/UPC to LC/UPC Dulplex OM4 Multimode PVC 2.0mm-1m(3ft) FOPC 1111D712-1(7242106)OS2 ( G.652.D/G.657.A1/G.657.A2) , ,
LC To LC Uniboot Fiber Patch Cable G652D G657A1/2 G655 Fiber Unit LC UPC to LC UPC Simplex G.652.D Single Mode PVC 0.9mm-2m(6ft) FOPC 1111S111-2(7242107)OS2 ( G.652.D/G.657.A1/G.657.A2) , ,
LC To LC Uniboot Fiber Patch Cable G652D G657A1/2 G655 Fiber Unit LC UPC to LC UPC Simplex G.652.D Single Mode PVC 2.0mm-2m(6ft) FOPC 1111S112-2(7242108)OS2 ( G.652.D/G.657.A1/G.657.A2) , ,
LC To LC Uniboot Fiber Patch Cable G652D G657A1/2 G655 Fiber Unit LC UPC to LC UPC Simplex OM1 Multimode PVC 2.0mm-2m(6ft) FOPC 1111S412-2(7242109)OS2 ( G.652.D/G.657.A1/G.657.A2) , ,
LC To LC Uniboot Fiber Patch Cable G652D G657A1/2 G655 Fiber Unit LC UPC to LC APC Simplex G.652.D Single Mode PVC 2.0mm-2m(6ft) FOPC 1112S112-2(7242110)OS2 ( G.652.D/G.657.A1/G.657.A2) , ,
LC To LC Uniboot Fiber Patch Cable G652D G657A1/2 G655 Fiber Unit LC APC to LC APC Duplex G.652.D Single Mode PVC 2.0mm-2m(6ft) FOPC 1212D112-2(7242111)SM(OS2)G.652.D/G.657.A1/G.657.A2 , ,
LC To LC Uniboot Fiber Patch Cable G652D G657A1/2 G655 Fiber Unit LC APC to LC APC Simplex G.652.D Single Mode PVC 2.0mm-2m(6ft) FOPC 1212S112-2(7242112)OS2 ( G.652.D/G.657.A1/G.657.A2) , ,
