AHFX-BS Automotive Cable Halogen Free Polyolefin
AHFX-BS Automotive Cable Halogen Free Polyolefin
Specifications
Brand Name :
Zion communication OR OEM
Model Number :
Automotive Cable
Certification :
CE, RoHS, VDE, UL, CUL, LPCB
Place of Origin :
China
MOQ :
20 KM
Payment Terms :
T/T, L/C
Supply Ability :
1000KM / Month
Delivery Time :
25 working days
Packaging Details :
100M, 200M, Roll, Carton
Conductor :
Tin plated copper
Insulation :
Fluororubber
Braided :
Shield tin plated copper
Sheath :
Halogen free Polyolefine
Standard Compliance :
KIS-ES-1121
Technical Parameters :
Operating temperature: –40 °C to +200°C
Description

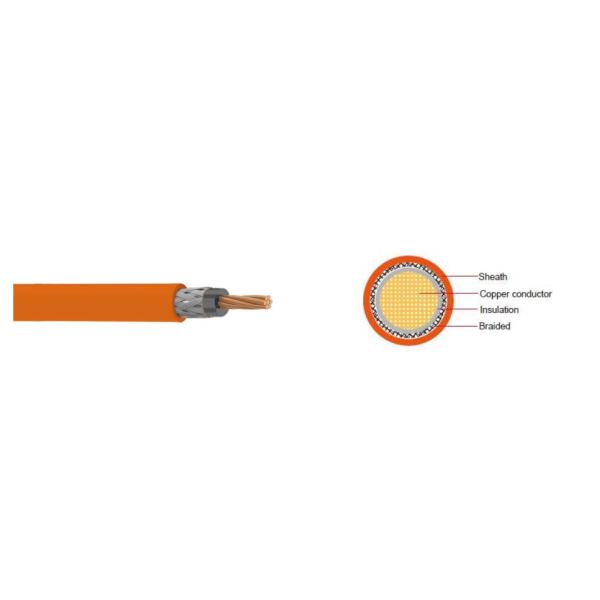

AHFX-BS Automotive Cable
Product Description:
Conductor Tin plated copper
Insulation Fluororubber
Braided Shield tin plated copper
Sheath Halogen free Polyolefine
Standard Compliance KIS-ES-1121
Technical Parameters Operating temperature: –40 °C to +200°C
Rated Voltage: 600V
Application:
This Fluororubber insulated single-core cable is used for HEV automobiles.
AHFX-BS Automotive Cable Halogen Free Polyolefin
Zion's Hot Types of AHFX-BS Automotive cable
Conductor Insulation Cable
Nominal
cross-
section		 No. and Dia. of Wires Diameter
Max.		 Electrical resistance at 20°C max. Thickness
wall Nom.		 Diameter of Core Diameter Width Diameter Height Weight approx.
mm2 No./mm mm mΩ/m mm mm mm mm Kg/km
1x3 65/0.26 2.40 5.65 4.05 3.55 90.00 5.60 5.30
1x5 65/0.32 3.00 3.72 4.90 4.30 90.00 7.30 6.50
1x8 154/0.26 4.00 2.43 5.90 5.30 90.00 8.30 7.50
1x15 171/0.32 5.30 1.44 7.80 7.20 90.00 10.75 9.85
1x20 247/0.32 6.50 1.00 9.00 8.40 90.00 11.95 11.05
1x25 323/0.32 7.40 0.76 10.60 9.80 90.00 13.50 12.50
1x30 361/0.32 7.80 0.68 11.00 10.20 90.00 13.90 12.90
1x40 494/0.32 9.10 0.52 12.30 11.50 90.00 16.25 15.15
1x50 608/0.32 10.10 0.42 13.75 12.85 90.00 17.70 16.50
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
