23AWG Cat6 MCC5 Media Composite Cable With 2xTV 100
23AWG Cat6 MCC5 Media Composite Cable With 2xTV 100
Specifications
Brand Name :
Zion communication OR OEM
Model Number :
Media Composite Cable
Certification :
CE, RoHS, VDE, UL, CUL, LPCB
Place of Origin :
China
MOQ :
20 KM
Payment Terms :
T/T, L/C
Supply Ability :
1000KM / Month
Delivery Time :
25 working days
Packaging Details :
100M, 200M, Roll, Carton
Conductor :
Bare Copper
Size :
1.02mm
Insulation :
FPE
Overall Screen 1 :
Bare Copper Foil
Overall Screen 2 :
Bare Copper Wire Braid, (≥ 55% Coverage)
Sheath :
Low Smoke Halogen Free (LSHF)
Colour :
1 x Black, 1 xWhite
Description

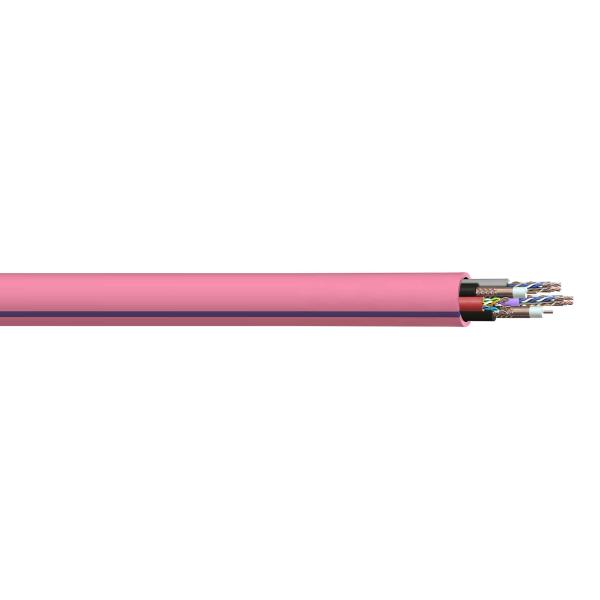

23AWG Cat6 MCC5 Media Composite Cable With 2xTV 100

MCC5
23AWG Cat6 MCC5 Media Composite Cable With 2xTV 100
Construction:
1 x Cat 5E UTP
Conductor Material & Size Bare Copper, 24(1)AWG
Insulation Material HDPE
Number of Pairs 4
Pair Identification White/Blue, Blue/White
White/Orange, Orange/White
White/Green, Green/White
White/Brown, Brown/White
Sheath Material Low Smoke Halogen Free (LSHF)
Sheath Colour Red
2 x Cat 6 UTP
Conductor Material & Size Bare Copper, 23(1)AWG
Insulation Material HDPE
Number of Pairs 4
Pair Identification White/Blue, Blue/White
White/Orange, Orange/White
White/Green, Green/White
White/Brown, Brown/White
Sheath Material Low Smoke Halogen Free (LSHF)
Sheath Colour 1 x Grey, 1 x Violet
2 x TV 100
Conductor Material Bare Copper
Conductor Size 1.02mm
Insulation Material FPE
Overall Screen 1 Bare Copper Foil
Overall Screen 2 Bare Copper Wire Braid, (≥ 55% Coverage)
Sheath Material Low Smoke Halogen Free (LSHF)
Sheath Colour 1 x Black, 1 xWhite
Overall Construction:
Sheath Material Low Smoke Halogen Free (LSHF)
Sheath Colour Pink + Violet Stripe
Electrical Characteristics:
Cat 5E UTP
Nominal Impedance 100 ± 15 Ω (1-100MHz)
Max. Conductor Resistance@ 20°c ≤ 9.50 Ω/100m
Max. Conductor Resistance Unbalanced ≤ 5.0 %
Mutual Capacitance ≤ 5.6 nF/100m
Capacitance Unbalanced to Earth ≤ 300 pF/ 100m
Max. Delay Skew ≤ 45 ns/ 100m
Voltage Rating 30 V
Test Voltage 2.5kV (AC)
Cat 6 UTP
Nominal Impedance 100 ± 15 Ω (1-250MHz)
Max. Conductor Resistance@ 20°c ≤ 9.50 Ω/100m
Max. Conductor Resistance Unbalanced ≤ 5.0 %
Mutual Capacitance ≤ 5.6 nF/100m
Capacitance Unbalanced to Earth ≤ 330 pF/ 100m
Max. Delay Skew ≤ 45 ns/ 100m
Voltage Rating 30 V
Test Voltage 2.5kV (AC)
2 x TV 100
Nominal Impedance 75 ± 3 Ω
Max. Conductor Resistance@ 20°c ≤ 23.5 Ω/km
Outer Conductor Resistance@ 20°c ≤ 15 Ω/km
Capacitance 53 ± 3 pF/m
NVP 83 %
TV 100 Electrical Performance
Attenuation Return Loss
Frequency
(MHz)		 Attenuation
(dB/100m)		 Frequency
(MHz)		 Attenuation
(dB/100m)		 Frequency
(MHz)		 dB
5 1.6 860 19.5 30 – 470 ≥ 23
50 4.6 1000 21.5 470 – 862 ≥ 20
100 6.5 1750 29.0 862 - 2150 ≥ 18
200 9.5 2150 32.5
460 15.0
Cat 5E UTP Transmission Performance
Frequency 1 4 10 16 20 31.25 62.5 100 155 200 300 350 MHz
Attenuation 2.0 4.10 6.5 8.2 9.30 11.7 17.0 22.0 26.6 30.7 38.7 41.4 dB
Return Loss 20.0 23.0 25.0 25.0 25.0 23.6 21.5 20.1 10.1 9.0 7.2 6.6 dB
NEXT 65.3 56.3 50.3 47.2 45.8 42.9 38.4 35.3 29.2 27.3 24.4 23.2 dB
PS NEXT 62.3 53.3 47.3 44.4 42.8 39.9 35.4 32.3 27.0 25.2 22.3 21.2 dB
ELFEXT 65.0 52.0 44.0 39.9 38.0 34.1 28.1 24.0 17.5 15.3 11.8 10.5 dB
PSELFEXT 61.0 49.0 41.0 36.9 35.0 31.1 25.1 21.0 11.8 9.6 6.1 4.7 dB
Cat 6 UTP Transmission Performance
Frequency 1 4 10 16 20 31.25 62.5 100 200 250 300 400 500 MHz
Attenuation 2.03 3.78 5.95 7.6 8.47 10.67 15.38 19.8 28.98 32.85 34.0 41.1 47.1 dB
Return Loss 20.0 23.0 25.0 25.0 25.0 23.6 21.5 20.1 18.0 17.3 9.2 8.0 7.0 dB
NEXT 74.3 65.3 59.3 56.2 54.8 51.9 47.7 44.3 39.8 38.3 34.0 31.9 30.4 dB
PS NEXT 72.3 63.3 57.3 54.2 52.8 49.9 45.4 42.3 37.8 36.3 31.4 29.3 27.6 dB
ELFEXT 67.8 55.8 49.7 47.8 41.8 37.9 31.9 27.8 21.8 19.8 14.6 12.1 10.2 dB
PSELFEXT 64.8 52.8 44.8 40.7 38.8 34.9 28.9 24.8 18.8 16.8 11.6 9.1 7.2 dB
Physical Characteristics:
Overall Diameter 18.7 ± 1.0mm
Bend Radius 15 x OD
Temperature Rating -10°C to 70°C
Weight 250 kg/km
Standards:
Cat 5E UTP LSHF
Manufactured in Accordance to TIA/EIA 568-C.2, ISO/IEC 11801
Approval HDBaseT
Cat 6 UTP LSHF
Manufactured in Accordance to TIA/EIA 568-C.2, ISO/IEC 11801
Approval HDBaseT
Overall Construction:
Flame Retardant BS EN 60332-1-2
Low Smoke Generation BS EN 61034-2
Halogen Gas Emission BS EN 60754-1&2
RoHS3 Compliant Yes
CE Compliant LVD (2014/35/EU), CPR (305/2011)
CPR Classification Eca (EN50575:2014+A1:2016)
