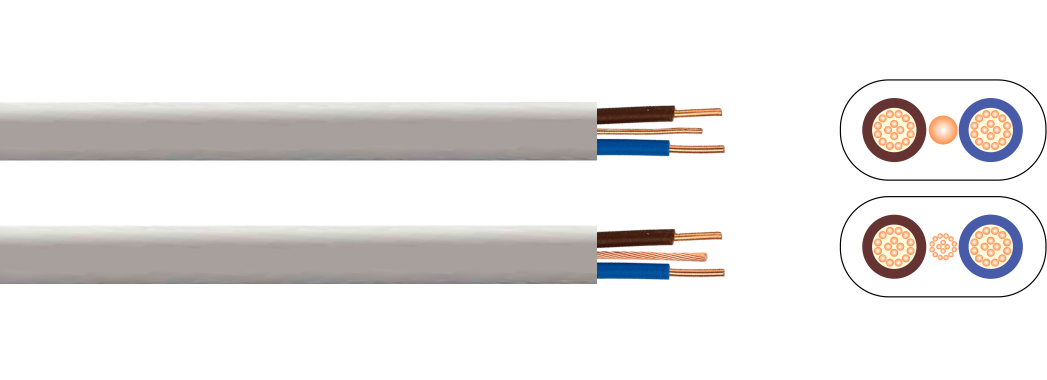

Twin And Earth Cable
Twin And Earth Cable
Specifications
Brand Name :
Zion communication OR OEM
Model Number :
Twin And Earth Cable
Certification :
CE, RoHS, VDE, UL, CUL, LPCB
Place of Origin :
China
MOQ :
20 KM
Payment Terms :
T/T, L/C
Supply Ability :
1000KM / Month
Delivery Time :
25 working days
Packaging Details :
100M, 200M, Roll, Carton
Conductor :
RE: 1mm² to 2.5mm²: Class 1 solid copper
Circuit Protection :
1mm² to 2.5mm²: Class 1 solid copper
Conductor (Earth) :
4mm² to 16mm²: Class 2 stranded copper
Insulation :
Polyvinyl Chloride (PVC)
Sheath :
Polyvinyl Chloride (PVC)
Description
Twin And Earth Cable

Twin And Earth Cable

Twin And Earth Cable
Application: Cable Standards:
This cable has a bare protective conductor
plus 1, 2 or 3 cores.
Used for fixed installations in dry or
damp premises clipped direct to surface,
on trays or in free air.
Where mechanical protection is required,
it can be laid in conduit or trunking.		 BSEN 50363-3, BS 6004
Flame Retardant according to IEC/EN 60332-1-2
Product Description:
Conductor RE: 1mm² to 2.5mm²: Class 1 solid copper
RM: 4mm² to 16mm²: Class 2 stranded copper
Circuit Protection
Conductor (Earth)		 1mm² to 2.5mm²: Class 1 solid copper
4mm² to 16mm²: Class 2 stranded copper
Insulation Polyvinyl Chloride (PVC)
Sheath Polyvinyl Chloride (PVC)
Characteristics:
Voltage Rating Uo/U 300/500V
Temperature Rating -5°C to +70°C
Minimum Bending Radius Fixed: 6 x overall diameter
Core Identification:
1 Core: Brown
2 Core: Brown Blue
2 Core: Brown Blue
3 Core: Brown Blue Black
Should not be installed at temperatures below 0°C or above +60°C
Dimensions:
Zion Code No. Of
Cores		 Nominal Cross Sectional Area(mm²) Nominal Thickness
Of Insulation
(mm)		 Nominal overall
diameter
(mm)		 Nominal overall
diameter
(mm)		 Nominal overall
diameter
(mm)		 Nominal overall
diameter
(mm)		 Nominal
Weight
Kg/km
TAEC2x1.0 2 1 1 1 0.6 0.9 4.35 x 7.95 68
TAEC2x1.5 2 1.5 1 1 0.7 0.9 4.85 x 8.90 87
TAEC2x2.5 2 2.5 1 1.5 0.8 1 5.65 x 10.65 120
TAEC2x4.0 2 4 2 1.5 0.8 1 6.30x 11.95 172
TAEC2x6.0 2 6 2 2.5 0.8 1.1 7.10x 13.70 235
TAEC2x10 2 10 2 4* 1 1.2 8.70x 17.25 373
TAEC2x16 2 16 2 6* 1 1.3 9.85 x 20.0 530
TAEC3x1.0 3 1 1 1 0,6 0.9 4.35 x 9.80 91
TAEC3x1.5 3 1.5 1 1 0.7 0.9 4.85 x 11.2 115
Conductors:
Nominal Cross Sectional Area
(mm²)		 MAXIMUM RESISTANCE OF CONDUCTOR AT 20ºC
ohms/km
Plain Wires
1 18.1
1.5 12.1
2.5 7.41
Class 2 Stranded Conductors for Single Core and Multi-Core Cables
Nominal Cross Sectional Area (mm²) Current Carrying Capacity Amps MAXIMUM RESISTANCE OF CONDUCTOR AT 20ºC
ohms/km
Annealed Copper Conductor
Circular Plain Wires
4 7 4.61
6 7 3.08
10 7 1.83
16 7 1.15
The above table is in accordance with EN 60228
