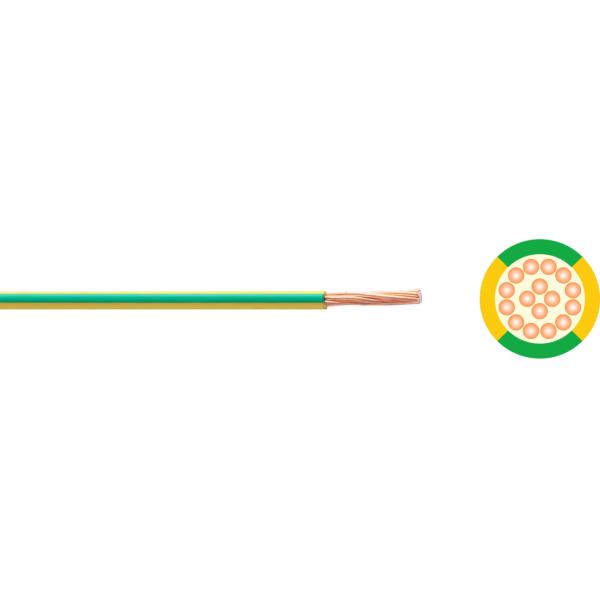

H05V-K / H07V-K Flexible Cable
H05V-K / H07V-K Flexible Cable
Specifications
Brand Name :
Zion communication OR OEM
Model Number :
H05V-K / H07V-K Flexible Cable
Certification :
CE, RoHS, VDE, UL, CUL, LPCB
Place of Origin :
China
MOQ :
20 KM
Payment Terms :
T/T, L/C
Supply Ability :
1000KM / Month
Delivery Time :
25 working days
Packaging Details :
100M, 200M, Roll, Carton
Conductor :
Class 5 flexible copper
Insulation :
PVC (Polyvinyl Chloride)
Description
H05V-K / H07V-K Flexible Cable

H05V-K / H07V-K Flexible Cable

H05V-K / H07V-K Flexible Cable
Application: Cable Standards:
PVC panel wiring for use in the switch control, relay and
instrumentation panels of power switchgear and for purposes
such as internal connectors in rectifier equipment, motor
starters and controllers.		 EN 50525-2-31, EN 60228
Flame Retardant according to IEC/EN 60332-1-2
Product Description:
Conductor Class 5 flexible copper
Insulation PVC (Polyvinyl Chloride)
Characteristics:
Voltage Rating Uo/U H05V-K: 300/500V
H07V-K: 450/750V
Temperature Rating -30°C to +70°C
-5°C to +70°C
Minimum Bending Radius Fixed: 6 x overall diameter
Core Identification:
1.5mm2 & 2.5mm2
Brown Black Green/Yellow
Grey Blue Violet
White Orange
4mm2 upto 300mm2
Brown Black Green/Yellow
Grey Blue
400mm2, 500mm2 & 630mm2
Green/Yellow
Should not be installed at temperatures below 0°C or above +40°C
H05V-K Dimensions:
Nominal Cross Sectional Area (mm²) Nominal Cross Sectional Area (mm²) Nominal Overall Diameter Area (mm) NOMINAL WEIGHT
kg/km
H05V-K0.5 0.5 2.2 9.0
H05V-K0.8 0.8 2.4 11.0
H05V-K1.0 1.0 2.5 14.0
H07V-K Dimensions:
Nominal Cross Sectional Area (mm2) Nominal Cross Sectional Area (mm²) Nominal Overall Diameter Area (mm) NOMINAL WEIGHT
kg/km
H07V-K1.5 1.5 2.9 20.0
H07V-K2.5 2.5 3.6 31.0
H07V-K4.0 4.0 4.1 46.0
H07V-K6.0 6.0 4.7 75.0
H07V-K10 10.0 6.1 125.0
H07V-K16 16.0 7.3 199.0
H07V-K25 25.0 9.0 299.0
H07V-K35 35.0 10.2 421.0
H07V-K50 50.0 12.1 539.0
H07V-K70 70.0 13.8 730.0
H07V-K95 95.0 16.3 973.0
Conductors:
Nominal Cross Sectional Area (mm²) Maximum Diameter
Of Wires In Conductor
(mm)		 Maximum Resistance Of Conductor At 20ºC
Plain Wires Metal-Coated Wires
0.50 0.21 39.000 40.100
0.75 0.21 26.000 26.700
1.00 0.21 19.500 20.000
1.50 0.26 13.300 13.700
2.50 0.26 7.980 8.210
4.00 0.31 4.950 5.090
6.00 0.31 3.300 3.390
10.00 0.41 1.910 1.950
16.00 0.41 1.210 1.240
25.00 0.41 0.780 0.795
35.00 0.41 0.554 0.565
50.00 0.41 0.386 0.393
70.00 0.51 0.272 0.277
95.00 0.51 0.206 0.210
The above table is in accordance with EN 60228
Current Carrying Capacity
Nominal Cross
Sectional Area		 In A Thermal Insulated Wall
Amps		 On A Wall
Amps		 In Free Air
Amps
2 Core 3 Core 2 Core 3 Core 1 Core
0.50 - - - - -
0.75 - - - - 15
1.00 - - - - 19
1.50 14.5 13.5 17.5 15.5 24
2.50 19.5 18 24 21 32
4.00 26 24 32 28 42
6.00 34 31 41 36 54
10.00 46 42 57 50 73
16.00 61 56 76 68 98
25.00 80 73 101 89 129
35.00 99 89 125 110 158
50.00 119 108 151 134 198
70.00 151 136 192 171 245
95.00 182 164 232 207 292
