PVC Battery Cable
PVC Battery Cable
Specifications
Brand Name :
Zion communication OR OEM
Model Number :
PVC Battery Cable
Certification :
CE, RoHS, VDE, UL, CUL, LPCB
Place of Origin :
China
MOQ :
20 KM
Payment Terms :
T/T, L/C
Supply Ability :
1000KM / Month
Delivery Time :
25 working days
Packaging Details :
100M, 200M, Roll, Carton
Conductor :
Class 6 extra flexible copper conductor
Insulation :
TPE (Thermoplastic Elastomer)
Sheath :
PVC (Polyvinyl Chloride)
Description
PVC Battery Cable

PVC Battery Cable

PVC Battery Cable
Application: Cable Standards:
PVC battery cable has a wide range of applications in
DC battery systems in the automotive industry,
process control industry and is widely used in
automation. It is used to provide power to a
variety of electrical vehicles and connection
to DC-operated conveyor systems etc.

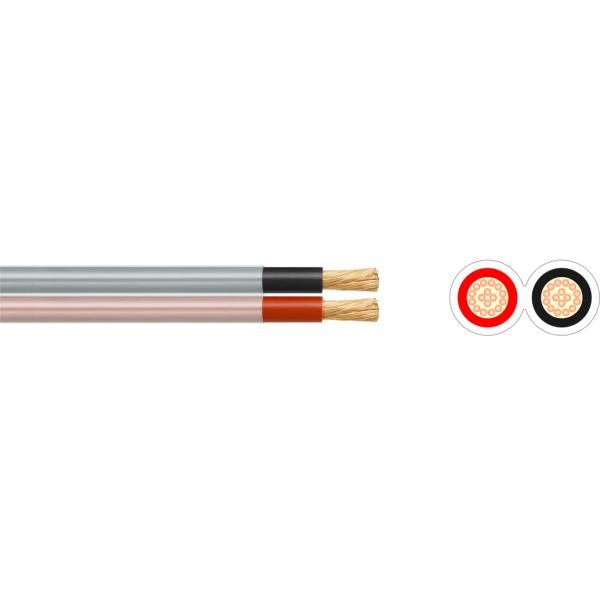

PVC battery cable is a flexible double-insulated
twin-core cable laid up in a figure of 8 configurations
with a clear outer sheath.
For indoor or outdoor use in the dry or wet.		 Figure of 8 sheath configuration based on
VDE0250
BS EN 60332-1-2
Product Description:
Conductor Class 6 extra flexible copper conductor
Insulation TPE (Thermoplastic Elastomer)
Sheath material PVC (Polyvinyl Chloride)
Characteristics:
Voltage Rating Uo/U 450/750V
Temperature Rating Flexed: -20°C to +70°C
Minimum Bending Radius Flexed: 6 x overall diameter
Core Identification:
Core: Black Red
Dimensions:
Zion Code No. Of
Cores		 Nominal Cross Sectional Area (mm2) Nominal Thickness Of Insulation (mm) Nominal Thickness Of Sheath
(mm)		 Nominal Overall Diameter
(mm)		 Nominal Weight
(Kg/Km)
7195-2×2.5 2 2.50 1.00 1.0 4.4 x 10.8 90.0
7195-2×4 2 4.00 1.00 1.0 6.5 x 14.5 120.0
7195-2×6 2 6.00 1.00 1.0 7.1 x 15.5 190.0
7195-2×10 2 10.00 1.00 1.2 7.9 x 17.6 294.0
7195-2×16 2 16.00 1.00 1.2 10 x 21.5 420.0
7195-2×25 2 25.00 1.10 1.3 11.2 x 24.3 627.0
7195-2×35 2 35.00 1.10 1.3 12.4 x 25.9 824.0
7195-2×50 2 50.00 1.20 1.4 14.5 x 30.5 1132.0
7195-2×70 2 70.00 1.60 1.6 17.2 x 36.5 1600.0
7195-2×95 2 95.00 1.60 1.0 18.4 x 38.6 2080.0
* Class 6 Flexible Copper Conductors for Single Core and Multi-Core Cables
Conductors:
Nominal Cross Sectional Area (mm2) Maximum Diameter Of Wires In Conductor(mm) Maximum Resistance Of Conductor At 20℃ Ohms/km
Plain Wires
2.5 0.16 7.980
4 0.16 4.950
6 0.21 3.300
10 0.21 1.910
16 0.21 1.210
25 0.21 0.780
35 0.21 0.554
50 0.31 0.386
70 0.31 0.272
95 0.31 0.206
* Class 6 Flexible Copper Conductors for Single Core and Multi-Core Cables
* The above table is in accordance with BS EN 60228 (previously BS 6360)
Current Carrying Capacity
No. Of Cores Nominal Cross Sectional Area (mm2) CURRENT RATING AT 60ºC
Amps
2 2.5 32.0
2 4.0 42.0
2 6.0 54.0
2 10.0 73.0
2 16.0 98.0
2 25.0 129.0
2 35.0 158.0
2 50.0 198.0
2 70.0 245.0
2 95.0 292.0
