FTTH Indoor Outdoor 2 Hilos Self-Support Fiber Optic Cable FTTH Single Mode Drop Cable GJYXCH/GJYXFCH 2KM Price

GJYXFCH(GJYXCH)-Small FTTH Drop Fiber Optic Cables Self-Supporting Wires 1.7*3.8LSZH

Introduction

The typical GJYXFDCH / GJYXDCH Self-supporting drop optical cable includes central optical Ribbon fibre(s) with 2 parallel FRP/Steel wires as the strength members placed on both sides,and an additional strength member(steelwire),Finally a LSZH sheath is extruded outside.

Features

Simple structure, light weight, high tensile strength and metal-free
Novel groove design, easily strip and splice, simplified installation and maintenance
Low smoke, zero halogen and flame retardant sheath, environment-friendly, good safety

Product Series

• GJXFH: FRP Strength Member+2.0*3.0LSZH
• GJXH: Steel Wire Strength Member+2.0*3.0 LSZH
• GJXH-Small Diamter: Steel Wire Strength Member+1.6*2.0 LSZH
• GJX(F)DH: Ribbon Fibers+2.0*4.0LSZH
• GJYX(F)CH: Self-Supporting Wires+2.0*5.2LSZH
• GJYX(F)CH-Small: Self-Supporting Wires+1.7*3.8LSZH
• GJYXFDCH(GJYXDCH): Self-Supporting Wires+Ribbon Fibers+1.7*3.8LSZH
• GYFJU: Aramid Yarn Strength Round Sheath LSZH
• GYGXY: Central Tube Glass Yarns armor Round Sheath HDPE
• FDC: Flat Drop Cable+Central Tube+3.0*6.0 LSZH
• ASU: Self-Supporting FRP Strength+Tube+7.0/8.0 HDPE
• GYXY-8S: Figure-8 Self-supporting+Aramid Yarns+Tubes+4.6*8.8HDPE
• GYFXBY: Flat Drop Cable+Central Tube+4.6*8.1 LSZH

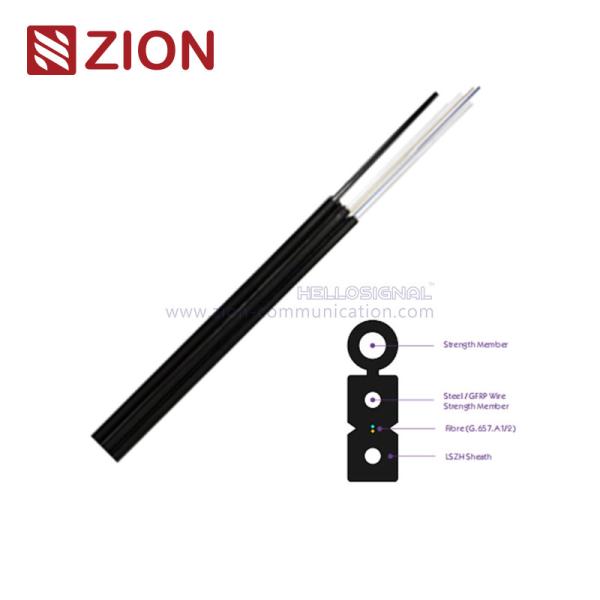

Cross Section

Technical Characteristics

GJYXFCH-1-2 Diametermm: 1.7*3.8

GJYXFCH-1-2 Weight(kg/km): 15.5

GJYXFCH-1-2 Tensile strengthLong/short term(N): 200/400

GJYXFCH-1-2 CrushLong/short term(N/100mm): 500/1000

GJYXFCH-1-2 Bending RadiusStatic/Dynamic: 15/30

GJYXCH-1-2 Diametermm: 1.7*3.8

GJYXCH-1-2 Weight(kg/km): 15.5

GJYXCH-1-2 Tensile strengthLong/short term(N): 200/400

GJYXCH-1-2 CrushLong/short term(N/100mm): 500/1000

GJYXCH-1-2 Bending RadiusStatic/Dynamic: 15/30

Environmental Characteristics

Transport/storage temperature: -20℃~70℃

Delivery Length

Standard length:1000m;Other length availabe
