KX6 2C ×0.50 Figure 8 Cable KX6 with 2 core power CCTV camera security cable
KX6 2C ×0.50 Figure 8 Cable KX6 with 2 core power CCTV camera security cable
Specifications
Brand Name :
hellosignal
Model Number :
CCTV SURVEILLANCE CABLE
Certification :
UL, CE, RoHS
Place of Origin :
China
MOQ :
30 KM
Payment Terms :
T/T, L/C
Supply Ability :
3000KM / Month
Delivery Time :
25 working days
Packaging Details :
500FT, 1000FT Wooden Reel or Spool in Box
Conductor :
Bare Copper
Dielectric :
SPE
Shield :
CCA(85%)
Power Wire Conductor :
CCA
Power wire Diameter of insulation :
PVC (Red,Black)
Jacket :
PVC Green
Description
KX6+2×0.50 PVC - Figure 8(NO.7102071)
Construction Parameters:
Inner Conductor: 7 × 0.20mm Bare Copper
Insulation: 3.70mm SPE
Shield: 96x0.12mmCCA(85%)
Jacket: 6.00mm PVC Green
Power Wire Conductor: 2x16x0.20mm CCA = 0.50mm2 CCA
Power Wire Insulation: 1.60mm PVC in Red & Black
Power Wire Jacket: 4.00mm PVC Green
Electrical Characteristics:
Inner Conductor Resistance 87.5Ω/KM at 20℃
Capacitance 67 ±3 pF/m
Impedance 75 ± 3 Ω
Return Loss between 5 and 1000MHz: > 22dB
Velocity of Propagation 0.85
Sparker Test (VAC) 4
Mechanical and Envrionmental Properties:
Cable Bend Radius 10 times the cable diameter
Operating Temperature Range -20 ℃ to +60℃

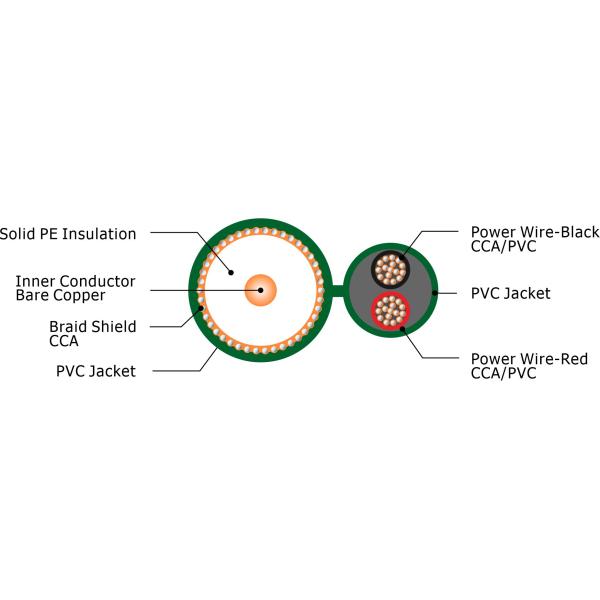

Cross Section:

KX6 2C ×0.50 Figure 8 Cable KX6 with 2 core power CCTV camera security cable
Attenuation (20℃):
Frequency (MHZ) Max Attenuation (dB/100m)
10 5.00
50 8.10
100 13.00
200 18.50
400 22.50
850 34.50
950 37.50
1000 45.00
※Note: The above transmission performance tor the 100M, 20±2℃ under the conditions tested.
Order Informations:
Marking HELLOSIGNAL KX6+2×0.50mm2 Figure 8 CCTV CABLE ...305M
Inner Package 300M or 500M/Wooden Spool/Carton
Delivery time Normally 25 days after received the deposit payment.
Brand HELLOSIGNAL® OR OEM
