RG6/U 2C18AWG CM Figure 8 Coaxial Cable Factory Directly Supplying Competitive Price Rg6 2c Power Coaxial Cables
RG6/U 2C18AWG CM Figure 8 Coaxial Cable Factory Directly Supplying Competitive Price Rg6 2c Power Coaxial Cables
Specifications
Brand Name :
hellosignal
Model Number :
CCTV SURVEILLANCE CABLE
Certification :
UL, CE, RoHS
Place of Origin :
China
MOQ :
30 KM
Payment Terms :
T/T, L/C
Supply Ability :
3000KM / Month
Delivery Time :
25 working days
Packaging Details :
500FT, 1000FT Wooden Reel or Spool in Box
Conductor :
18AWG Copper
Dielectric :
Solid Polyethylene
Shield1 :
Bonded Aluminum Foil Shield
Shield2 :
AL braid wire 95% coverage
Power Wire Conductor :
BC
Power wire Diameter of insulation :
PVC-CM (Red,Black)
Jacket :
PVCPVC-CM
Description

RG6/U+2C18AWG CM Figure 8
75 Ohm CCTV coaxial Cable

NO.7102002
Similar Type:
Catalog
No.		 Cond.Type
&Nom.D.C.R		 Shielding&
%Coverage		 Jacket Power Wire Cond.Type Power wire
OD of
insulation		 Jacket Nom. Capacitance Nom.Imp.Ω
RG6/U
+2C18AWG
Figure 8
NO.7102001		 18AWG(SOL)CCS
87 Ω/km 		1.B.Al/PET
2.AL-Braid 95%		 6.65mm
PVC		 2x18AWG/
(16*0.25mm) BC 		1.9mm
PE/PVC
(Red,Black)		 5.05mm PVC 52±3pF/m 75±3Ω
RG6/U
+2C18AWG CMR
Figure 8
NO.7102003		 18AWG(SOL)Cu
21.2 Ω/km 		1.B.Al/PET
2.BC-Braid 95%		 6.65mm
PVC-CMR		 2x18AWG/
(7*0.38mm) BC		 1.9mm
PVC-CMR
(Red,Black)		 5.05mm PVC-CMR 52±3pF/m 75±3Ω
RG6/U
+2C18AWG CMP
Figure 8
NO.7102004		 18AWG(SOL)Cu
21.2 Ω/km 		1.B.Al/PET
2.BC-Braid 95%		 5.9mm
PVC-CMP		 2x18AWG/
(7*0.38mm) BC		 1.6mm
PVC-CMP
(Red,Black)		 3.8mm PVC-CMP 52±3pF/m 75±3Ω
Construction Parameters:
Inner Conductor 1.02mm/0.04"/18AWG Copper
Dielectric 4.45mm/0.175" Foamed PE
Shield 1 Bonded Aluminum Foil Shield
Shield 2 BC braid wire 95% coverage
Jacket 6.65mm PVC-CM
Power Wire Conductor 2x18AWG/(7*0.38mm) BC
Power wire Diameter of insulation 1.9mm PVC-CM (Red,Black)
Jacket 5.05mmPVC-CM
Application For Use in Longer CCTV Run Lengths
Electrical Characteristics:
Inner Conductor Resistance The Max. at 20℃ shall be < 21.2 Ω/km (6.96 Ω/kft)
Capacitance 52 ±3 pF/m 17±0.3 pF/ft
Impedance 75 ± 3 Ω
Return loss between 5 and 1000MHz: > 22dB
Velocity of Propagation 0.85
Sparker Test (VAC) 4
Mechanical and Envrionmental Properties
Cable bend radius 10 times the cable diameter
Operating Temp Range -20 ℃ to 60℃
Cable diamensions 6.65×5.05mm

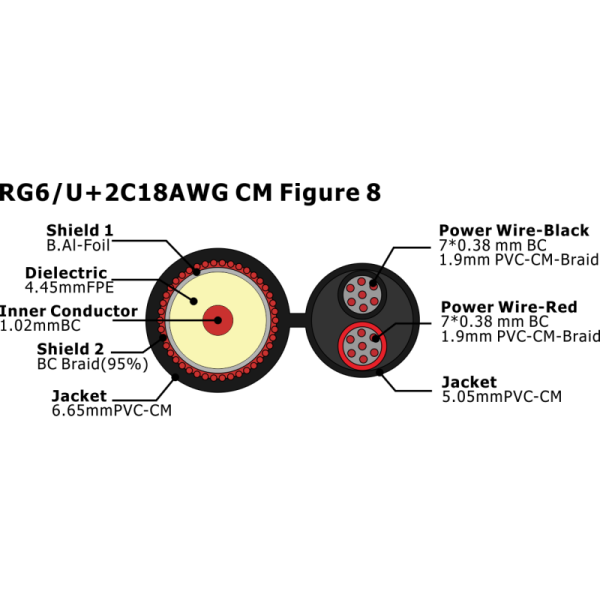

Cross Section
RG6/U 2C18AWG CM Figure 8 Coaxial Cable Factory Directly Supplying Competitive Price Rg6 2c Power Coaxial Cables
Attenuation(20℃):
Frequency (MHZ) Max Attenuation(dB/100ft) Max Attenuation (dB/100m)
5 0.58 1.90
55 1.60 5.25
83 1.95 6.40
187 2.85 9.35
211 3.05 10.00
250 3.30 10.82
300 3.55 11.64
350 3.85 12.63
400 4.15 13.61
450 4.40 14.43
500 4.66 15.29
550 4.90 16.08
600 5.10 16.73
750 5.65 18.54
865 6.10 20.01
1000 6.55 21.49
Order Informations:
Marking HELLOSIGNAL RG6/U+2C18AWG CM Figure 8
CCTV COAXIAL CABLE 7102002 ×××M/FT
Package Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …
Delivery time Normally 25 days after received the deposit.
Brand HELLOSIGNAL® OR OEM
Similar Type:
Catalog
No.		 Cond.Type
&Nom.D.C.R		 Shielding&
%Coverage		 Jacket Power Wire Cond.Type Power wire
OD of
insulation		 Jacket Nom. Capacitance Nom.Imp.Ω
RG6/U
+2C18AWG
Figure 8
NO.7102001		 18AWG(SOL)CCS
87 Ω/km 		1.B.Al/PET
2.AL-Braid 95%		 6.65mm
PVC		 2x18AWG/
(16*0.25mm) BC 		1.9mm
PE/PVC
(Red,Black)		 5.05mm PVC 52±3pF/m 75±3Ω
RG6/U
+2C18AWG CMR
Figure 8
NO.7102003		 18AWG(SOL)Cu
21.2 Ω/km 		1.B.Al/PET
2.BC-Braid 95%		 6.65mm
PVC-CMR		 2x18AWG/
(7*0.38mm) BC		 1.9mm
PVC-CMR
(Red,Black)		 5.05mm PVC-CMR 52±3pF/m 75±3Ω
RG6/U
+2C18AWG CMP
Figure 8
NO.7102004		 18AWG(SOL)Cu
21.2 Ω/km 		1.B.Al/PET
2.BC-Braid 95%		 5.9mm
PVC-CMP		 2x18AWG/
(7*0.38mm) BC		 1.6mm
PVC-CMP
(Red,Black)		 3.8mm PVC-CMP 52±3pF/m 75±3Ω
