RG6/U 2C 18AWG Figure 8 Low Return Loss 75Ohm RG6 Coaxial Cable with 2c Power for CCTV Camera Communication Cable
RG6/U 2C 18AWG Figure 8 Low Return Loss 75Ohm RG6 Coaxial Cable with 2c Power for CCTV Camera Communication Cable
Specifications
Brand Name :
hellosignal
Model Number :
CCTV SURVEILLANCE CABLE
Certification :
UL, CE, RoHS
Place of Origin :
China
MOQ :
30 KM
Payment Terms :
T/T, L/C
Supply Ability :
3000KM / Month
Delivery Time :
25 working days
Packaging Details :
500FT, 1000FT Wooden Reel or Spool in Box
Conductor :
18AWG CCS
Dielectric :
Solid Polyethylene
Shield1 :
Bonded Aluminum Foil Shield
Shield2 :
AL braid wire 95% coverage
Power Wire Conductor :
BC
Power wire Diameter of insulation :
PE/PVC (Red,Black)
Jacket :
PVC
Description

RG6/U+2C18AWG Figure 8
75 Ohm CCTV coaxial Cable

NO.7102001
Similar Type:
Catalog
No.		 Cond.Type
&Nom.D.C.R		 Shielding&
%Coverage		 Jacket Power Wire Cond.Type Power wire
OD of
insulation		 Jacket Nom. Capacitance Nom.Imp.Ω
RG6/U
+2C18AWG CM
Figure 8
NO.7102002		 18AWG(SOL)Cu
21.2 Ω/km 		1.B.Al/PET
2.BC-Braid 95%		 6.65mm
PVC-CM		 2x18AWG/
(7*0.38mm) BC		 1.9mm
PVC-CM
(Red,Black)		 5.05mm PVC-CM 52±3pF/m 75±3Ω
RG6/U+2C
18AWG CMR
Figure 8
NO.7102003		 18AWG(SOL)Cu
21.2 Ω/km 		1.B.Al/PET
2.BC-Braid 95%		 6.65mm
PVC-CMR		 2x18AWG/
(7*0.38mm) BC		 1.9mm
PVC-CMR
(Red,Black)		 5.05mm PVC-CMR 52±3pF/m 75±3Ω
RG6/U
+2C18AWG CMP
Figure 8
NO.7102004		 18AWG(SOL)Cu
21.2 Ω/km 		1.B.Al/PET
2.BC-Braid 95%		 5.9mm
PVC-CMP		 2x18AWG/
(7*0.38mm) BC		 1.6mm
PVC-CMP
(Red,Black)		 3.8mm PVC-CMP 52±3pF/m 75±3Ω
Construction Parameters:
Inner Conductor 1.02mm/0.04"/18AWG CCS
Dielectric 4.45mm/0.175" Foamed PE
Shield 1 Bonded Aluminum Foil Shield
Shield 2 AL braid wire 95% coverage
Jacket 6.65mm PVC
Power Wire Conductor 2x18AWG/(16*0.25mm) BC
Power wire Diameter of insulation 1.9mm PE/PVC (Red,Black)
Jacket 5.05mmPVC
Application For Use in Longer CCTV Run Lengths
Electrical Characteristics:
Inner Conductor Resistance The Max. at 20℃ shall be < 87 Ω/km (26.6 Ω/kft)
Capacitance 52 ±3 pF/m 17±0.3 pF/ft
Impedance 75 ± 3 Ω
Return loss between 5 and 1000MHz: > 22dB
Velocity of Propagation 0.85
Sparker Test (VAC) 4
Mechanical and Envrionmental Properties
Cable bend radius 10 times the cable diameter
Operating Temp Range -20 ℃ to 60℃
Cable diamensions 6.65×5.05mm

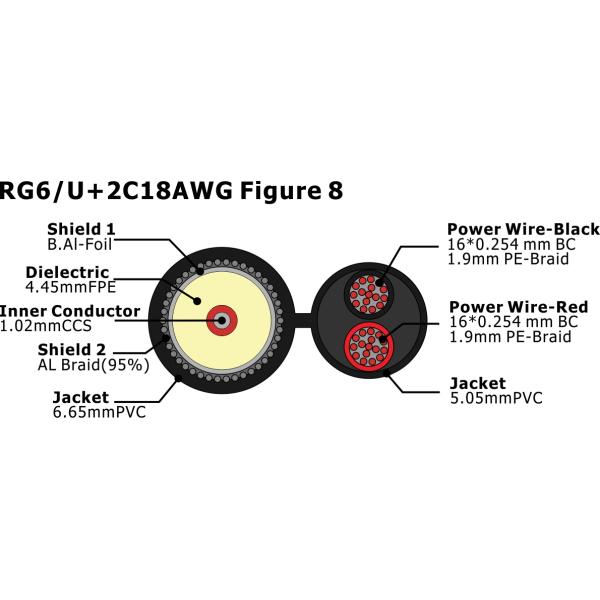

Cross Section
RG6/U 2C 18AWG Figure 8 Low Return Loss 75Ohm RG6 Coaxial Cable with 2c Power for CCTV Camera Communication Cable
Attenuation(20℃):
Frequency (MHZ) Max Attenuation(dB/100ft) Max Attenuation (dB/100m)
5 0.58 1.90
55 1.60 5.25
83 1.95 6.40
187 2.85 9.35
211 3.05 10.00
250 3.30 10.82
300 3.55 11.64
350 3.85 12.63
400 4.15 13.61
450 4.40 14.43
500 4.66 15.29
550 4.90 16.08
600 5.10 16.73
750 5.65 18.54
865 6.10 20.01
1000 6.55 21.49
Order Informations:
Marking HELLOSIGNAL RG6/U+2C18AWG Figure 8
CCTV COAXIAL CABLE 7102001 ×××M/FT
Package Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …
Delivery time Normally 25 days after received the deposit.
Brand HELLOSIGNAL® OR OEM
Similar Type:
Catalog
No.		 Cond.Type
&Nom.D.C.R		 Shielding&
%Coverage		 Jacket Power Wire Cond.Type Power wire
OD of
insulation		 Jacket Nom. Capacitance Nom.Imp.Ω
RG6/U
+2C18AWG CM
Figure 8
NO.7102002		 18AWG(SOL)Cu
21.2 Ω/km 		1.B.Al/PET
2.BC-Braid 95%		 6.65mm
PVC-CM		 2x18AWG/
(7*0.38mm) BC		 1.9mm
PVC-CM
(Red,Black)		 5.05mm PVC-CM 52±3pF/m 75±3Ω
RG6/U+2C
18AWG CMR
Figure 8
NO.7102003		 18AWG(SOL)Cu
21.2 Ω/km 		1.B.Al/PET
2.BC-Braid 95%		 6.65mm
PVC-CMR		 2x18AWG/
(7*0.38mm) BC		 1.9mm
PVC-CMR
(Red,Black)		 5.05mm PVC-CMR 52±3pF/m 75±3Ω
RG6/U
+2C18AWG CMP
Figure 8
NO.7102004		 18AWG(SOL)Cu
21.2 Ω/km 		1.B.Al/PET
2.BC-Braid 95%		 5.9mm
PVC-CMP		 2x18AWG/
(7*0.38mm) BC		 1.6mm
PVC-CMP
(Red,Black)		 3.8mm PVC-CMP 52±3pF/m 75±3Ω
