RG59K 2C 0.5 Figure 8 Solid Bare Copper Conductor Coaxial Antenna Cable 75 Ohm RG59 power cable
RG59K 2C 0.5 Figure 8 Solid Bare Copper Conductor Coaxial Antenna Cable 75 Ohm RG59 power cable
Specifications
Brand Name :
hellosignal
Model Number :
CCTV SURVEILLANCE CABLE
Certification :
UL, CE, RoHS
Place of Origin :
China
MOQ :
30 KM
Payment Terms :
T/T, L/C
Supply Ability :
3000KM / Month
Delivery Time :
25 working days
Packaging Details :
500FT, 1000FT Wooden Reel or Spool in Box
Conductor :
Bare Copper
Dielectric :
Foam FEP
Shield :
BC-Braid(47%)
Jacket :
PVC/PE/LSZH
Power Wire Conductor :
BC
Power wire Diameter of insulation :
HDPE (Red,Black)
Description

RG59K + 2C0.5 Figure 8
75 Ohm CCTV coaxial Cable

NO.7102035
Similar Type:
Coaxial Cable Power Cores
Catalog
No.		 Cond.Type
&Nom.D.C.R		 Dielectric Shielding&
%Coverage		 Jacket Power Wire Cond.Type Power wire
OD of
insulation		 Jacket Nom. Capacitance
RG59 B/U
+2C0.50
Figure 8
NO.7102036		 0.58mm (SOL) BC
54 Ω/km 		Solid
PE		 BC
Braid 95%		 6.00mm
PVC/PE/LSZH		 2x
(16*0.2mm
BC )		 1.9mm
HDPE
(Red,Black)		 5.05mm
PVC/PE/
LSZH		 67±2 pF/m
RG59 B/U
+2C0.50 CCA
Figure 8
NO.7102037 		0.58mm (SOL) BC
54 Ω/km 		Solid
PE		 CCA
Braid 95%		 6.00mm
PVC/PE/LSZH		 2x
(16*0.2mm
CCA )		 1.9mm
HDPE
(Red,Black)		 5.05mm
PVC/PE/
LSZH		 67±2 pF/m
RG59 Micro
+2C0.75
Figure 8
NO.7102040		 7*0.18mm (SOL) BC
54 Ω/km 		Solid
PE		 CCA
Braid 95%		 4.05mm
PVC/PE/LSZH		 2x
(16*0.2mm
CCA )		 1.9mm
HDPE
(Red,Black)		 5.05mm
PVC/PE/
LSZH		 52±3 pF/m
RG59 B/U
+2C0.50 CCA
Figure 8
NO.7102041		 0.5mm (SOL) BC
87.6 Ω/km 		Foam
FEP		 1.Al/PET-Foil
2.CCA -Braid 50%		 5.6mm
PVC/PE/LSZH		 2x
(16*0.2mm
CCA )		 2.0mm PVC
(Red,Black)		 5.05mm
PVC/PE/
LSZH		 69±2 pF/m
RG59CCS
+2x0.75,
Figure 8
NO.7102044 		0.643mm (SOL) CCS
252.83 Ω/km 		Foam
FEP		 1.AL Foil
2.AL wire		 6.00mm
PVC/PE/LSZH		 2x
(16*0.25mm
CCA )		 2.0mm PVC
(Red,Black)		 5.05mm
PVC/PE/
LSZH		 69±2 pF/m
Construction Parameters:
Inner Conductor 0.70mm Bare Copper
Dielectric 0.144"/3.66±0.05mm Foamed Polyethylene
Shield 0.12mm BC-Braid(47%)
Jacket 0.236"/6.00±0.1mm PVC/PE/LSZH
Power Wire Conductor 2x(24*0.15mmBC )
Power wire Diameter of insulation 0.075"/1.9mmHDPE (Red,Black)
Jacket 5.05mm PVC/PE/LSZH
Application For Use in Longer CCTV Run Lengths
Electrical Characteristics:
Inner Conductor Resistance 54 Ohms/KM at 20℃
Capacitance 52 ±3 pF/m 17±0.3 pF/ft
Impedance 75 ± 3 Ω
Return loss between 5 and 1000MHz: > 22dB
Velocity of Propagation 0.85
Sparker Test (VAC) 4
Mechanical and Envrionmental Properties
Cable bend radius 10 times the cable diameter
Operating Temp Range -20 ℃ to 60℃
Cable diamensions 6.0×5.05mm

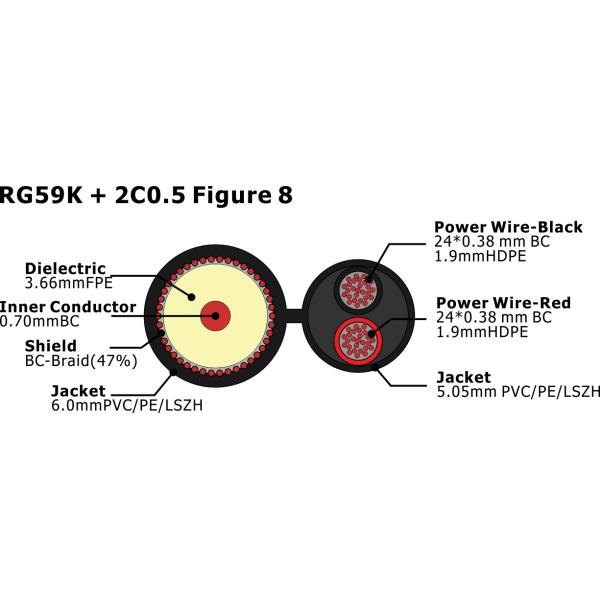

Cross Section
RG59K 2C 0.5 Figure 8 Solid Bare Copper Conductor Coaxial Antenna Cable 75 Ohm RG59 power cable
Attenuation(20℃):
Frequency (MHZ) Max Attenuation(dB/100ft) Max Attenuation (dB/100m)
5 0.82 2.50
10 0.92 2.80
50 2.13 6.50
100 2.92 8.90
200 4.20 12.80
400 6.07 18.50
700 7.51 22.90
900 8.79 26.80
1000 9.25 28.20
Order Informations:
Marking HELLOSIGNAL RG59K + 2C0.5 Figure 8
CCTV COAXIAL CABLE 7102035 ×××M/FT
Package Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …
Delivery time Normally 25 days after received the deposit.
Brand HELLOSIGNAL®OR OEM
