High Quality CCTV Camera RG59+2C Common power siamese coaxial cable
High Quality CCTV Camera RG59+2C Common power siamese coaxial cable
Specifications
Brand Name :
hellosignal
Model Number :
CCTV SURVEILLANCE CABLE
Certification :
UL, CE, RoHS
Place of Origin :
China
MOQ :
30 KM
Payment Terms :
T/T, L/C
Supply Ability :
3000KM / Month
Delivery Time :
25 working days
Packaging Details :
500FT, 1000FT Wooden Reel or Spool in Box
Conductor :
Bare Copper
Dielectric :
Foam FEP
Shield :
BC-Braid(95%)
Jacket :
PVC-CM
Power Wire Conductor :
BC
Power wire Diameter of insulation :
PVC-CM (Red,Black)
Description

RG59/U +2C18AWG CM Common

75 Ohm CCTV coaxial Cable

NO.7102024
Construction Parameters:
Inner Conductor 0.032"/0.81mm/20AWG Bare Copper
Dielectric 0.144"/3.66±0.05mm Foamed Polyethylene
Shield 0.12mmBC-Braid(95%)
Jacket 0.236"/6.00±0.1mm PVC-CM
Power Wire Conductor 2x18AWG/(7*0.38mm) BC
Power wire Diameter of insulation 0.075"/1.90mm PVC-CM (Red,Black)
Jacket 9.5mm PVC-CM
Application For Use in Longer CCTV Run Lengths
Electrical Characteristics:
Inner Conductor Resistance

The Max. at 20℃ shall be

< 33.5 Ω/km (10.3 Ω/kft)
Capacitance 52 ±3 pF/m 17±0.3 pF/ft
Impedance 75 ± 3 Ω
Return loss between 5 and 1000MHz: > 22dB
Velocity of Propagation 0.85
Sparker Test (VAC) 4
Mechanical and Envrionmental Properties
Cable bend radius 10 times the cable diameter
Operating Temp Range -20 ℃ to 60℃
Cable diamensions 9.5mm

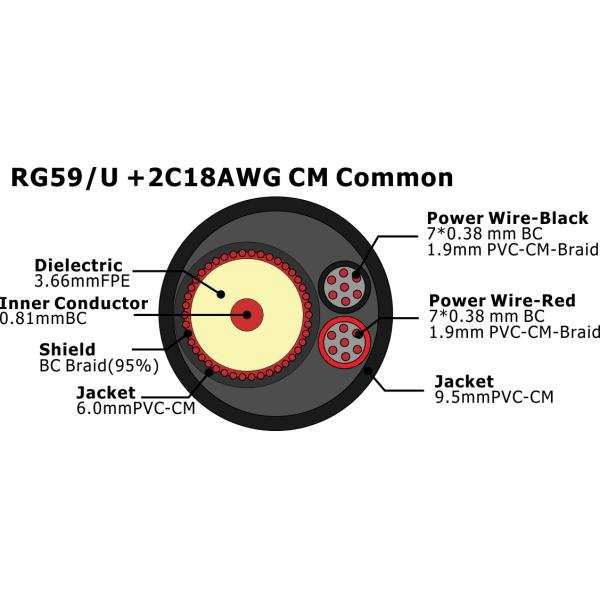

Cross Section
High Quality CCTV Camera RG59+2C Common power siamese coaxial cable
Attenuation(20℃):
Frequency (MHZ) Max Attenuation(dB/100ft) Max Attenuation (dB/100m)
5 0.86 2.82
55 2.05 6.73
83 2.45 8.04
187 3.60 11.81
211 3.80 12.47
250 4.10 13.45
300 4.45 14.60
350 4.80 15.75
400 5.10 16.73
450 5.40 17.72
500 5.70 18.70
550 5.95 19.52
600 6.20 20.34
750 6.97 22.87
865 7.52 24.67
1000 8.12 26.64
Order Informations:
Marking HELLOSIGNAL RG59U +2C18AWG CM Common
CCTV COAXIAL CABLE 7102024 ×××M/FT
Package Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …
Delivery time Normally 25 days after received the deposit.
Brand HELLOSIGNAL® OR OEM
