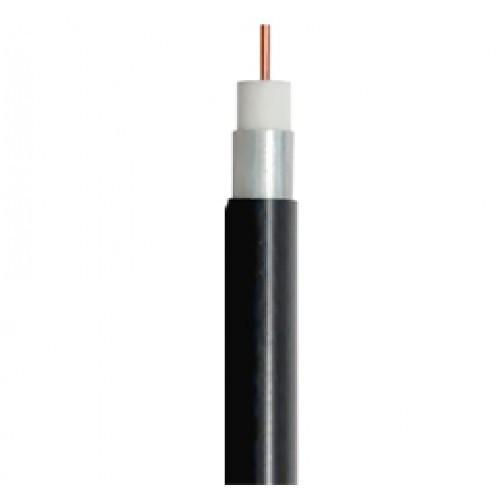

Trunk Coax Cable PS 700 CATV Distribution/Feeder 750 Coaxial Trunk Cable, Seamless Aluminum Tube CATV coaxial Cable
Trunk Coax Cable PS 700 CATV Distribution/Feeder 750 Coaxial Trunk Cable, Seamless Aluminum Tube CATV coaxial Cable
Specifications
Brand Name :
Zion communication OR OEM
Model Number :
PS
Certification :
UL, ETL, CE, RoHS
Place of Origin :
China
MOQ :
30 KM
Payment Terms :
T/T, L/C
Supply Ability :
1000KM / Month
Delivery Time :
Normally 15 working days
Packaging Details :
500M, 1000M, Wooden Drum, Pallet
Inner Conductor :
0.163" /4.14mm/ 6AWG CCA
Dielectric :
0.653"/16.59mm Foamed PE
Shield 1 :
0.703"/17.86mm Welding Smooth Aluminum Tube
Shield Thickness :
0.025" /0.63mm
Jacket :
0.765" /19.43mm PE
Jacket Thickness :
0.030"/0.76mm
Description

Trunk Coax Cable PS 700 CATV Distribution/Feeder 750 Coaxial Trunk Cable, Seamless Aluminum Tube CATV coaxial CableTrunk Coax Cable PS 700

75 Ohm CATV coaxial Cable

NO.7100413
Construction Parameters:
Inner Conductor 0.163" /4.14mm/ 6AWG CCA
Dielectric 0.653"/16.59mm Foamed PE
Shield 1 0.703"/17.86mm Welding Smooth Aluminum Tube
Shield Thickness 0.025" /0.63mm
Jacket 0.765" /19.43mm PE
Jacket Thickness 0.030"/0.76mm
Application For Use in Longer CATV Run Lengths
Electrical Characteristics:
Inner Conductor Resistance The Max. at 20℃ shall be<1.93 Ω/km
Capacitance 50 ± 3 pF/m
Impedance 75 ± 2 Ω
Return loss between 5 and 1000MHz: > 22dB
Velocity of Propagation 0.89
Sparker Test (VAC) 4
Mechanical and Envrionmental Properties
Cable bend radius 10 times the cable diameter
Operating Temp Range -20 ℃ to 60℃
Cable diamensions 0.765" /19.43mm PE
Cross Section
Trunk Coax Cable PS 700 CATV Distribution/Feeder 750 Coaxial Trunk Cable, Seamless Aluminum Tube CATV coaxial Cable
Attenuation(20℃):
Frequency (MHZ) Nominal (dB/100m) Max Attenuation (dB/100m)
5.00 0.36 0.36
55.00 1.15 1.18
83.00 1.44 1.48
211.00 2.36 2.40
250.00 2.59 2.66
300.00 2.85 2.95
350.00 3.12 3.22
400.00 3.35 3.45
450.00 3.54 3.67
500.00 3.77 3.90
550.00 3.97 4.10
600.00 4.17 4.30
750.00 4.72 4.89
865.00 5.15 5.32
1000.00 5.54 5.74
Order Informations:
Marking

HELLOSIGNAL Trunk Coax Cable PS 700

CATV COAXIAL CABLE 7100413 ×××M/FT
Package Inquired Length on wooden Spool,pallet …
Delivery time Normally 25 days after received the deposit.
Brand HELLOSIGNAL® OR OEM
