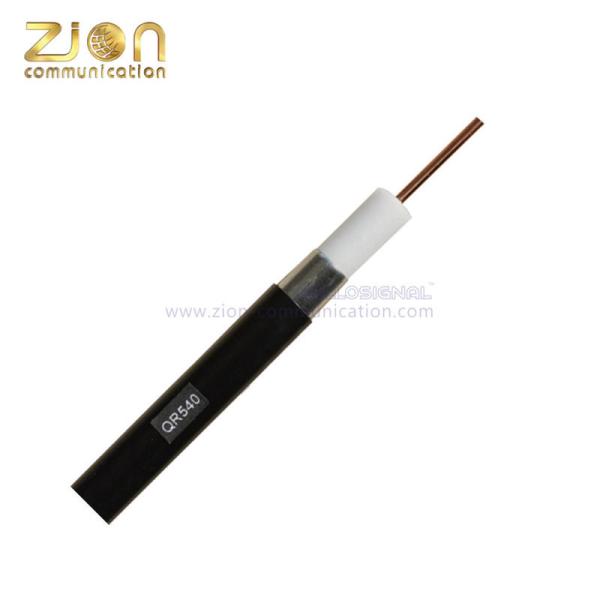

Self Supporting Trunk Cable QR 540 75ohm Copper Or Ccs Trunk Coaxial Cable
Self Supporting Trunk Cable QR 540 75ohm Copper Or Ccs Trunk Coaxial Cable
Specifications
Brand Name :
Zion communication OR OEM
Model Number :
QR
Certification :
UL, ETL, CE, RoHS
Place of Origin :
China
MOQ :
30 KM
Payment Terms :
T/T, L/C
Supply Ability :
1000KM / Month
Delivery Time :
Normally 15 working days
Packaging Details :
500M, 1000M, Wooden Drum, Pallet
Inner Conductor :
9AWG 3.15mm CCA
Dielectric :
13.03mm Foamed PE
Outer Conductor :
13.72mm Welding Aluminum Tube
Jacket :
15.49mm PE Black
Jacket Thickness :
0.89mm
Description
Trunk Cable QR540
75 Ohm CATV Coaxial Cable
NO.7100416
Construction Parameters:
Inner Conductor 9AWG 3.15mm CCA Self Supporting Trunk Cable QR 540 75ohm Copper Or Ccs Trunk Coaxial Cable
Dielectric 13.03mm Foamed PE
Outer Conductor 13.72mm Welding Aluminum Tube
Jacket 15.49mm PE Black
Jacket Thickness 0.89mm
Application For Use in Longer CATV Run Lengths
Electrical Characteristics:
Inner Conductor Resistance The Max. at 20℃ shall be <3.34 Ω/km
Capacitance 50 ± 3 pF/m
Impedance 75 ± 2 Ω
Return loss between 5 and 1000MHz: > 22dB
Velocity of Propagation 87%
Sparker Test (VAC) 4
Mechanical and Environmental Properties:
Cable Bend Radius 10 times the cable diameter
Operating Temperature Range -40 ℃ to +85℃
Cable Diamensions 15.49mm PE Black
Cross Section:

Self Supporting Trunk Cable QR 540 75ohm Copper Or Ccs Trunk Coaxial Cable
Attenuation(20℃):
Frequency (MHZ) Max Attenuation (dB/100m)
5 0.46
55 1.54
211 3.12
250 3.38
300 3.71
350 4.03
400 4.33
450 4.59
500 4.89
550 5.12
600 5.38
750 6.07
865 6.56
1000 7.12
Order Informations:
Marking HELLOSIGNAL Trunk Cable QR540 ×××M
Package Inquired Length on Wooden Drum, Pallet …
Delivery time Normally 25 days after received the deposit.
Brand HELLOSIGNAL® OR OEM
