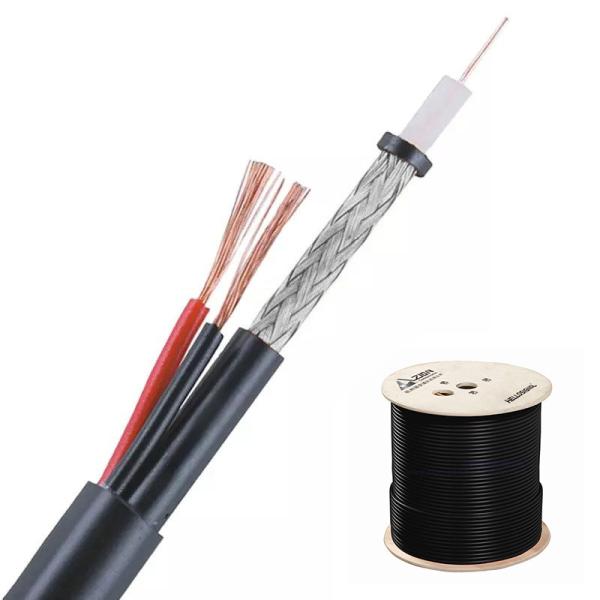

HD80+2×0.75 75 Ohm CCTV coaxial Cable NO.7102140 |
Similar Type: |
Coaxial Cable | Power Cores | Overall OuterSheath |
Catalog No. | Cond.Type &Nom.D.C.R | Dielectric | Shielding& %Coverage | Jacket | Power Wire Cond.Type | Power wire OD of insulation | Jacket | Nom. Capacitance |
HD80+2×0.50 NO.7102139 | 0.80mm (SOL)Cu | Foam FEP | 1.AL/Pet/Al 2.TC-Braid 70% | 5.0mm PVC | 2x (16×0.19mm CU) | 1.8mmPVC (Red,Black) | 8.3×6.5mm PVC Common | 52 ±3 pF/m |
HD80+2×1.00 NO.7102141 | 0.80mm (SOL)Cu | Foam FEP | 1.AL/Pet/Al 2.TC-Braid 70% | 5.0mm PVC | 2x (32×0.19mm CU) | 2.2mmPVC (Red,Black) | 8.7×6.5mm PVC Common | 52 ±3 pF/m |
Construction Parameters: |
Inner Conductor | 0.80mm Cu |
Dielectric | 3.5mm Foamed Polyethylene |
Shield 1 | AL/Pet/Al |
Shield 2 | TC 70% |
Jacket | 5.0mm PVC |
Power Wire Conductor | 2x(24×0.19mmCU ) |
Power wire Diameter of insulation | 2.0mmPVC(Red,Black) |
Jacket | 8.5×6.55mm PVC Common |
Application | For Use in Longer CCTV Run Lengths |
Electrical Characteristics: |
Inner Conductor Resistance | The Max. at 20℃ shall be < 34.5 Ω/km |
Capacitance | 52 ±3 pF/m 15.8 ±1 pF/ft |
Impedance | 75 ± 3 Ω |
Return loss | between 5 and 1000MHz: > 20dB |
Velocity of Propagation | 0.82 |
Sparker Test (VAC) | 3 |
|
Mechanical and Envrionmental Properties |
Cable bend radius | 10 times the cable diameter |
Operating Temp Range | -20 ℃ to 60℃ |
Cable diamensions | 8.5×6.55mm |
|
Cross Section |
 |
Attenuation(20℃): |
Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) |
1 | | 1.40 |
5 | | 1.90 |
10 | | 2.60 |
50 | | 5.80 |
100 | | 8.20 |
200 | | 11.30 |
400 | | 16.90 |
700 | | 22.10 |
900 | | 25.90 |
1000 | | 27.50 |
|
Order Informations: |
Marking | HELLOSIGNAL HD80+2×0.75 CCTV COAXIAL CABLE 7102140 ×××M/FT |
Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … |
Delivery time | Normally 25 days after received the deposit. |
Brand | HELLOSIGNAL® OR OEM |
|
