2X26 AWG CCTV Camera RG59/RG6/RG11/RG58 Coaxial Cable With Power 75ohm
2X26 AWG CCTV Camera RG59/RG6/RG11/RG58 Coaxial Cable With Power 75ohm
Specifications
Brand Name :
hellosignal
Model Number :
CCTV SURVEILLANCE CABLE
Certification :
UL, CE, RoHS
Place of Origin :
China
MOQ :
30 KM
Payment Terms :
T/T, L/C
Supply Ability :
3000KM / Month
Delivery Time :
25 working days
Packaging Details :
500FT, 1000FT Wooden Reel or Spool in Box
Conductor :
20AWG CCS
Dielectric :
Foamed Polyethylene
Shield :
AL-Braid(40%)
Power Wire Conductor :
CCA
Power wire Diameter of insulation :
HDPE(Red,Black,Blue)
Jacket :
PVC
Description

RG59 67% + 2X26 AWG

75 Ohm CCTV coaxial Cable

NO.7102103
Construction Parameters:
Inner Conductor 0.032"/0.81mm/20AWG CCS
Dielectric 0.144"/3.66±0.05mm Foamed Polyethylene
Shield 0.12mmAL-Braid(67%)
Jacket 6.0mmPVC
Power Wire Conductor 2x(10*0.12mmCCA )
Power wire Diameter of insulation 0.91HDPE(Red,Black)
Jacket 3.0mmPVC
Application For Use in Longer CCTV Run Lengths
Electrical Characteristics:
Inner Conductor Resistance

The Max. at 20℃ shall be < 139.5 Ω/km

42.5Ω/1000ft
Capacitance 52 ±3 pF/m 15.8 ±1 pF/ft
Impedance 75 ± 3 Ω
Return loss between 5 and 1000MHz: > 22dB
Velocity of Propagation 0.85
Sparker Test (VAC) 4
Mechanical and Envrionmental Properties
Cable bend radius 10 times the cable diameter
Operating Temp Range -20 ℃ to 60℃
Cable diamensions 6.0×3.0mm

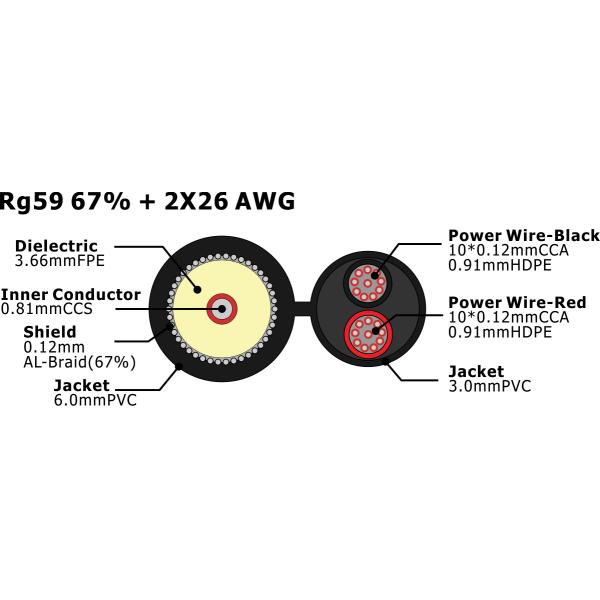

Cross Section
2X26 AWG CCTV Camera RG59/RG6/RG11/RG58 Coaxial Cable With Power 75ohm
Attenuation(20℃):
Frequency (MHZ) Max Attenuation(dB/100ft) Max Attenuation (dB/100m)
5 0.86 2.82
55 2.05 6.73
83 2.45 8.04
187 3.60 11.81
211 3.80 12.47
250 4.10 13.45
300 4.45 14.60
350 4.80 15.75
400 5.10 16.73
450 5.40 17.72
500 5.70 18.70
550 5.95 19.52
600 6.20 20.34
750 6.97 22.87
865 7.52 24.67
1000 8.12 26.64
Order Informations:
Marking HELLOSIGNAL RG59 67% + 2X26 AWG
CCTV COAXIAL CABLE 7102103 ×××M/FT
Package Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …
Delivery time Normally 25 days after received the deposit.
Brand HELLOSIGNAL® OR OEM
