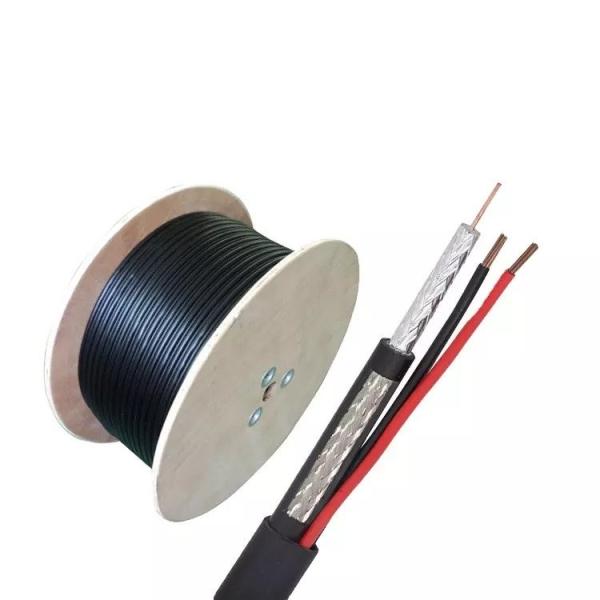

HD80+2×0.50 Coaxial cable Copper wire HD80 with power cable for CCTV communication antenna satellite cable
HD80+2×0.50 Coaxial cable Copper wire HD80 with power cable for CCTV communication antenna satellite cable
Specifications
Brand Name :
hellosignal
Model Number :
CCTV SURVEILLANCE CABLE
Certification :
UL, CE, RoHS
Place of Origin :
China
MOQ :
30 KM
Payment Terms :
T/T, L/C
Supply Ability :
3000KM / Month
Delivery Time :
25 working days
Packaging Details :
500FT, 1000FT Wooden Reel or Spool in Box
Conductor :
Cu
Dielectric :
Foamed Polyethylene
Shield1 :
AL/Pet/Al
Shield2 :
TC 70%
Power Wire Conductor :
CU
Power wire Diameter of insulation :
PVC (Red,Black)
Jacket :
PVC Common
Description

HD80+2×0.50

75 Ohm CCTV coaxial Cable

NO.7102139
Construction Parameters:
Inner Conductor 0.80mm Cu
Dielectric 3.5mm Foamed Polyethylene
Shield 1 AL/Pet/Al
Shield 2 TC 70%
Jacket 5.0mm PVC
Power Wire Conductor 2x(16×0.19mmCU )
Power wire Diameter of insulation 1.8mmPVC(Red,Black)
Jacket 8.3×6.5mm PVC Common
Application For Use in Longer CCTV Run Lengths
Electrical Characteristics:
Inner Conductor Resistance The Max. at 20℃ shall be < 34.5 Ω/km
Capacitance 52 ±3 pF/m 15.8 ±1 pF/ft
Impedance 75 ± 3 Ω
Return loss 20dB
Velocity of Propagation 0.83
Sparker Test (VAC) 3
Mechanical and Envrionmental Properties
Cable bend radius 10 times the cable diameter
Operating Temp Range -20 ℃ to 60℃
Cable diamensions
Cross Section
HD80+2×0.50 Coaxial cable Copper wire HD80 with power cable for CCTV communication antenna satellite cable
Attenuation(20℃):
Frequency (MHZ) Max Attenuation(dB/100ft) Max Attenuation (dB/100m)
1 1.40
5 1.90
10 2.60
50 5.80
100 8.20
200 11.30
400 16.90
700 22.10
900 25.90
1000 27.50
Order Informations:
Marking HELLOSIGNAL HD80+2×0.50
CCTV COAXIAL CABLE 7102139 ×××M/FT
Package Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …
Delivery time Normally 25 days after received the deposit.
Brand HELLOSIGNAL® OR OEM
