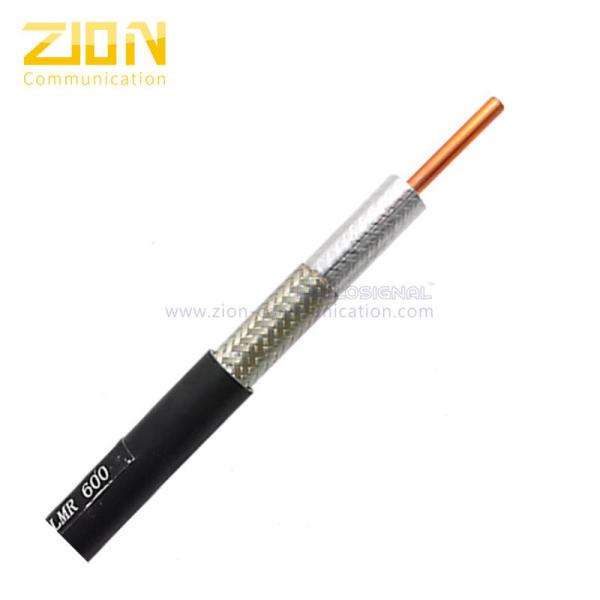

High quality Low loss 600 series coaxial cable with PE sheath
High quality Low loss 600 series coaxial cable with PE sheath
Specifications
Brand Name :
Zion communication OR OEM
Model Number :
LLC Coax Cable
Certification :
ISO, CE, RoHS, UL
Place of Origin :
China
MOQ :
1 KM
Payment Terms :
T/T, L/C
Supply Ability :
1000KM / Month
Delivery Time :
25 working days
Packaging Details :
100M, 300M, Wooden Reel, Carton
Inner Conductor :
Copper Clad Aluminum
Dielectric :
Foamed PE
Shield :
Bonded Aluminum polyester tape
Outer Conductor :
Tinned Copper Braid
Jacket :
PE Black
Description
LLC 600 CCA NO.7101009
Construction Parameters:
Inner Conductor 4.47±0.03mm Copper Clad Aluminium Wire
Dielectric 11.56±0.15mm Foamed PE
Shield Bonded Aluminum polyester tape
Outer Conductor 12.45mm Tinned Copper Braid
Jacket 14.99±0.2mm PE Black
More choice of Jacket FRPE / PVC / PVC W
Electrical Characteristics:
Capacitance 76.6 pF/m

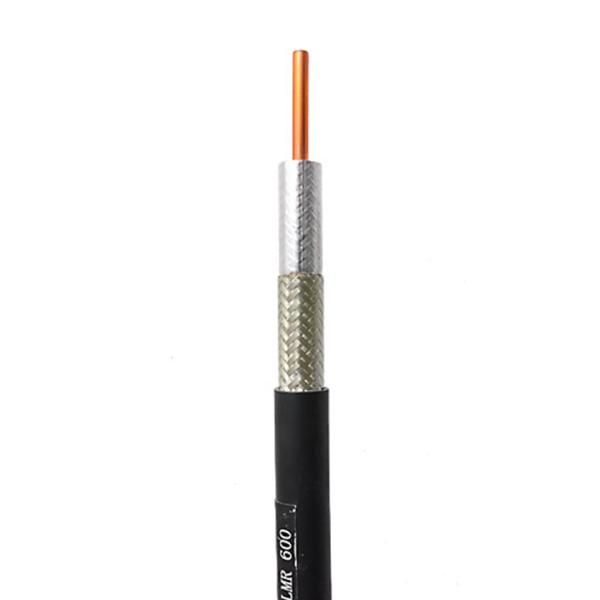

High quality Low loss 600 series coaxial cable with PE sheath
Impedance 50±2 Ω
Velocity of Propagation 85%
Peak Power Rating 40 KW
Max.Operating Frequency 6 GHz
Insulation Resistantce >5000 M Ω.km
Shielding Effectiveness > 90 dB
Inner Conductor DC Resistance 1.7 Ω/km
Outer Conductor DC Resistance 3.9 Ω/km
VSWR ≤ (Return loss≥dB)
30MHz-3000MHz 1.20 (20)
Mechanical and Envrionmental Properties:
Cable Bend Radius Installation: 38.1mm
Repeated: 152.4mm
Compressive flat force
Maximum tension 158.9 kg
Bending Moment 3.73 N-m
Flat Plate Crush Stength 1.07 kg/mm
Recommended
Temperature		 Storage: - 70 ℃ to +85℃
Installation: - 40 ℃ to +85℃
Operating: - 40 ℃ to +85℃
Cross Section:

High quality Low loss 600 series coaxial cable with PE sheath
Attenuation(20℃):
Frequency (MHZ) Max Attenuation(dB/100m) Avg.Power(KW)
30 1.40 5.51
50 1.80 4.24
150 3.20 2.41
220 3.90 1.97
450 5.60 1.35
900 8.20 0.93
1500 10.90 0.70
1800 12.10 0.63
2000 12.80 0.59
2500 14.50 0.52
3000 15.70 0.48
5800 23.80 0.32
Order Informations:
Marking HELLOSIGNAL LLC 600 CCA 50 Ohm COAXIAL CABLE ×××M
Package 500M/Wooden Drum, 1000M/Wooden Drum
Delivery time Normally 25 days after received the deposit.
Brand HELLOSIGNAL® OR OEM
Whatsapp/WeChat 0086 18268009191
Email info@zion-communication.com
