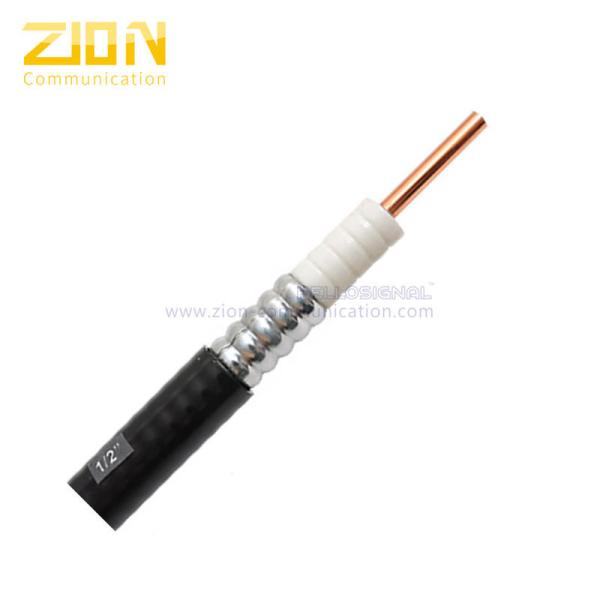

1/2 AL RF Corrugated 50 ohm coaxial cable Annular Corrugated Aluminum Tube coax cable
1/2 AL RF Corrugated 50 ohm coaxial cable Annular Corrugated Aluminum Tube coax cable
Specifications
Brand Name :
Zion communication OR OEM
Model Number :
RF Corrugated Coax Cable
Certification :
ISO, CE, RoHS, UL
Place of Origin :
China
MOQ :
1 KM
Payment Terms :
T/T, L/C
Supply Ability :
1000KM / Month
Delivery Time :
25 working days
Packaging Details :
100M, 300M, Wooden Reel, Carton
Inner Conductor :
Copper Clad Aluminum Wire
Insulation :
Foamed PE
Outer Conductor :
Annular Corrugated Aluminum Tube
Jacket :
PE, Black
Peak Power Rating :
40 KW
Max. Operating Frequency :
8.8 GHz
Description
1/2" AL RF Corrugated 50 ohm coaxial cable
NO.7101107
Construction Parameters:
Inner Conductor 4.80±0.05mm Copper Clad Aluminum Wire
Insulation 12.00±0.20mm Foamed PE
Outer Conductor 13.90±0.15mm Annular Corrugated Aluminum Tube
Jacket 15.70±0.20mm PE, Black
Jacket Thickness ＞0.80mm
Application

Electrical Characteristics:
Capacitance 76 pF/m 1/2
Impedance 50 Ω
Velocity of Propagation 0.88
Peak Power Rating 40 KW
Peak Voltage 1.8 KV
Insulation Resistantce >10000 MΩ.km
Insulation Voltage 6 KV
Inner Conductor DC Resistance 1.62 Ω/km
Outer Conductor DC Resistance 3.70 Ω/km
VSWR
800MHz-1000MHz 1.15
1700MHz-2500MHz 1.15
2500MHz-3000MHz 1.2
Mechanical and Envrionmental Properties:
Bending Radius (Single Bend) 80 mm
Bending Radius (Repeated Bend) 125 mm
Operating Temp Range -55 to +85 ℃
Cable Diamensions 15.70±0.20mm
Attenuation(20℃):
Frequency (MHZ) Attenuation (dB/100m) Average Power (KW)
150 3.00 3.23
300 4.25 2.19
450 5.32 1.82
800 7.22 1.34
900 7.70 1.26
1500 10.16 0.96
1800 11.23 0.87
2000 11.9 0.82
2400 13.17 0.72
3000 14.93 0.65
Order Informations:
Marking HELLOSIGNAL 1/2" AL RF COAXIAL CABLE ××× M
Package Inquired Length on Wooden Drum and Pallet.
Delivery time Normally 25 days after received the deposit.
Brand HELLOSIGNAL® OR OEM
