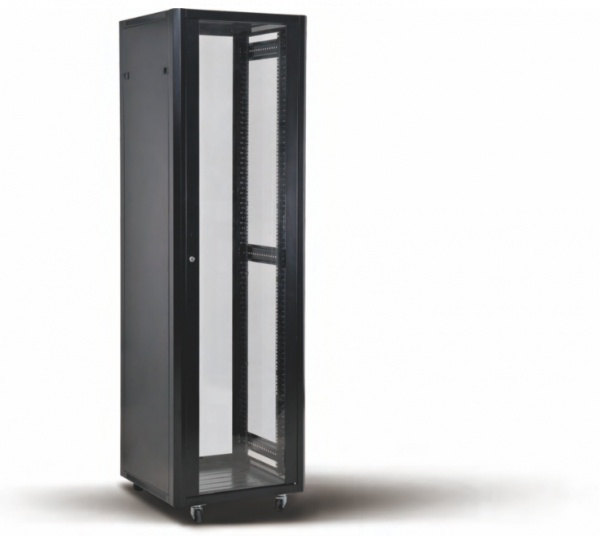

TE Rack Cabinets Data server rack 37U outdoor 19 inch ddf network server cabinet
TE Rack Cabinets Data server rack 37U outdoor 19 inch ddf network server cabinet
Specifications
Brand Name :
Zion communication
Model Number :
TE Rack Cabinets
Place of Origin :
CHINA
MOQ :
20pcs
Payment Terms :
T/T
Supply Ability :
no limit
Delivery Time :
Normally 25 days after received the deposit.
Packaging Details :
10 PC / Plastic Bag
Materials :
SPCC Cold Rolled Steel
19″ rails :
2.0mm
others :
1.2mm
Static loading :
400KG
Description

Technical Data

Materials:
· SPCC Cold Rolled Steel; · 19″ rails: 2.0mm;
· others:1.2mm.
Colour:
· ZCTE.■■■■.■■.0■■: RAL7035.
· ZCTE.■■■■.■■.1■■: RAL9004.
Loading Capacity:
· Static loading:400KG.

COMPLIANCE (Reference Standard)

· Comply with ANSI/EIA RS-310-D
· IEC60297-2
· DIN41494;PART1; DIN41494;PART7.

Quality advantages of cabinet prod

· Our cabinet products are made of high-quality SPCC thick cold-rolled steel plates, processed by advanced condensation technology, and have excellent compression and seismic resistance;

· The surface is galvanized with square hole-resistant strip fingerprint aluminum, and the The factory’s automatic production of molds and laser cutting make the products stable, exquisite and delicate;

· With a complete art production chain, each part of the product is degreasing, pickling, phosphating, and electrostatic spraying, which greatly improves the product’s quality. Anti-oxidation and anti-corrosion ability;

· The finished product has undergone strict quality inspection, screening and control, and fully meets the above-mentioned standards to ensure that Zion’s products must be exquisite.

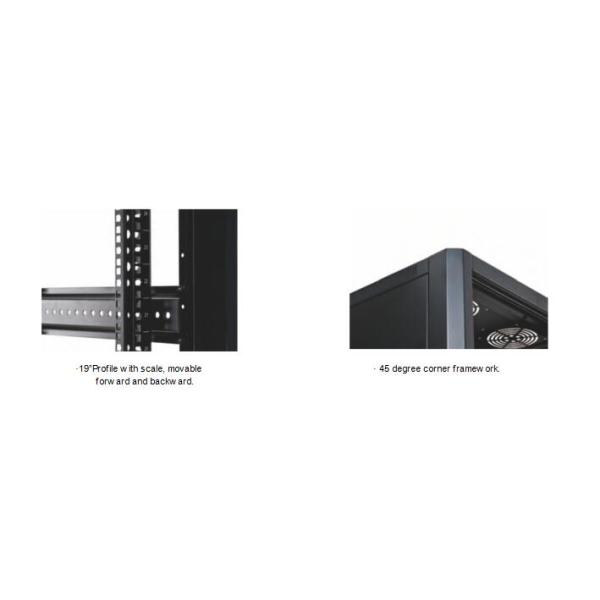

Feature

TE Rack Cabinets Data server rack 37U outdoor 19 inch ddf network server cabinet

· Exquisite design with precise dimension and craftsmanship;

· Within the cavity in front and back the door be style;

· Adjustable feet and heavy duty castors are available simultaneously;

· Modular quick disassembling;

· Optional installation of plinth to enable cabinets fixation, under-base cable entry/ventilation;

· Eficient and reliable cabinet connection by baying kit;

· Removable side panel&rear door to Quick open steel door ease maintain.

TE Rack Cabinets Data server rack 37U outdoor 19 inch ddf network server cabinet

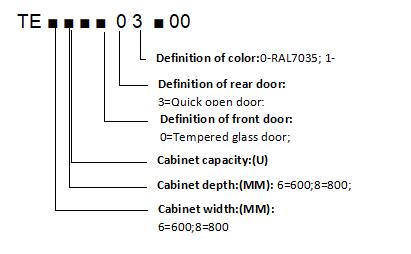

Definition Of Cord

TE Rack Cabinets Data server rack 37U outdoor 19 inch ddf network server cabinet TE Rack Cabinets Data server rack 37U outdoor 19 inch ddf network server cabinet

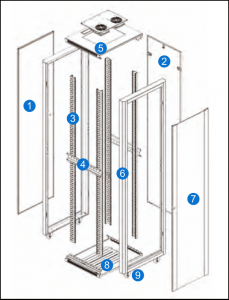

Main Part

S/N Specification Qty Material Surface Finish Remark
1 Read door 1 SPCC t1.0 Powder coated ·····
2 Side panel 2 SPCC t1.0 Powder coated ·····
3 19″rails 4 SPCC t2.0 Powder coated ·····
4 Mounting angle 2 SPCC t1.0 Powder coated ·····
5 Top cover 1 SPCC t1.0 Powder coated ·····
6 Frame 2 SPCC t1.0 Powder coated ·····
8 Front door 1 ····· ····· Tempered glass door
8 Bottom 1 SPCC t1.0 Powder coated ·····
9 2″ heavy duty castor 4 ····· ····· ·····

Hardware kits with cabinet:

A M12 adjustable feet 4 Steel zinc-plated Height:100MM
B M6 screw & nuts 20 Steel zinc-plated 40pcs for over 27U
C Trox tooling 1 Steel zinc-plated ·····

Specification:

Company Number Part Number. Width
(mm)		 Depth(D)
(mm)		 Capacity
(U)		 Height(H)
(mm)
7243269 ZCTE.6621.TENC 600 600 21 1020
7243270 ZCTE.6627.TENC 27 1290
7243271 ZCTE.6636.TENC 36 1690
7243272 ZCTE.6642.TENC 42 1955
7243273 ZCTE.6647.TENC 47 2180
7243274 ZCTE.8842.TENC 800 800 42 1955
7243275 ZCTE.8847.TENC 47 2180
