8 Fibers MTP to LC 8F Single mode Fiber Optic MTP-LC 2.0mm Straight harness Cables

Specifications

Brand Name :

HELLOSIGNAL® OR OEM

Place of Origin :

CHINA

MOQ :

50pcs

Payment Terms :

T/T

Supply Ability :

no limit

Delivery Time :

Normally 25 days after received the deposit.

Packaging Details :

10 PC / Plastic Bag

Durability :

<0.3dB typical change, 200 matings

Interchangeability :

≤0.2dB

Insert-pull Test :

Above 600 times, IL＜0.5dB

Tensile strength :

>70N

Operating Temperature (℃） :

-40 to + 85°C

Description

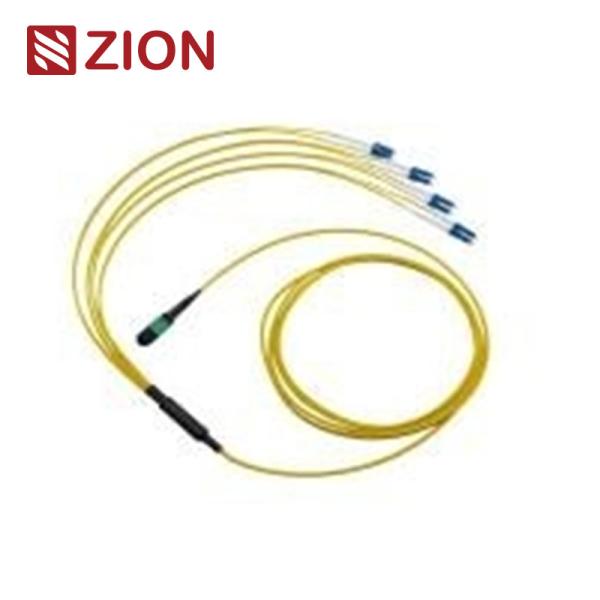

8F MTP SM Fiber Optic MTP-LC 2.0mm Straight harness Cables

Zion Code and Description

Zion Code: ZCM21A12HIAX
Zion Description: 8F MTP SM Fiber Optic MTP-LC 2.0mm Straight harness Cables

The MTP connector is a type of fiber connecter. MTP (Multi-Fiber Push On) is a multi-core fiber connecter type. The MTP high -density fiber pre -connection system is currently mainly used in the application of high -density environments of data centers, the application of optical fiber to the building, and the internal connection applications inside the optical transceiver equipment such as the optical device, 40G, 100G, QSFP+.

MTP connector types are distinguished according to the EIA/TIA-604-5 regulations: core numbers (array number), male head (Male, Female), polarity (PC or APC).

8 cores MTP to Duplex( 4xLC uniboot);Simplex ( 4xLC ) Straight harness Cables assemblies.
MTP- LC/SC/FC/ST Straight harness Cables are terminated with MTP and LC/SC/FC/ST connector on both ends. The 8pcsDuplex( 4xLC uniboot);Simplex ( 4xLC ) fanout cables are optimized for 40G QSFP+ PLR4 to 10G SFP+ LR optics direct connection and high-density data center applications. have same length . It's specifically designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.

SM 8F MTP- LC/SC/FC/ST Straight harness Cables are optimized for 40G QSFP+ PLR4 to 10G SFP+ LR optics direct connection and high-density data center applications.This 8 Fiber harness cable is used for a direct connection between QSFP+ to (4) SFP+ ports with no patch panels or intermediate trunks in between.

Connectors’ Industrial Standard

MPO Singlemode Reference: EIA/TIA-604-5

MPO Singlemode Housing Details: SM APC: Green connectors+black boot (Standard Loss MTP)
SM APC: Yellow connectors+black boot (Super low loss MTP)

MPO Multimode Reference: EIA/TIA-604-5

MPO Multimode Housing Details: OM1&OM2 PC: Beige connectors+black boot (Standard Loss MTP)
OM3&OM4 PC: Aqua connectors+black boot (Standard&Super low loss MTP)
OM3&OM4 PC: Heather Violet connectors+black boot (Standard loss MTP)

Meets IEC Standard IEC-61754-7; IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant Structured cabling per TIA-568-C
10G Fiber Channel Compliant
40G and 100G IEEE 802.3

Other connectors’ Industrial Standard

SC: TIA/EIA, FOCIS3, GR-326.NTT-SC IEC61754-4 and JIS C5973
LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.
FC: EIA /TIA-604-04, FOCIS4, NTT-FC, GR-326. IEC61754-13 and JIS C5973
ST: TIA/EIA, FOCIS2, GR-326. IEC61754-2 and JIS C5973 Etc
E2000: IEC61754-15

Available for

G657A1 MTP-LC, MTP-SC,MTP-FC,MTP-SC,MTP-ST,MTP-E2000
G657A2/B2 MTP-LC, MTP-SC,MTP-FC,MTP-SC,MTP-ST,MTP-E2000
G657B3 MTP-LC, MTP-SC,MTP-FC,MTP-SC,MTP-ST,MTP-E2000 OM1 62.5/125 MTP-LC, MTP-SC,MTP-FC,MTP-SC,MTP-ST,MTP-E2000
OM2 50/125 MTP-LC, MTP-SC,MTP-FC,MTP-SC,MTP-ST,MTP-E2000
OM3 50/125 MTP-LC, MTP-SC,MTP-FC,MTP-SC,MTP-ST,MTP-E2000
OM4 50/125 MTP-LC, MTP-SC,MTP-FC,MTP-SC,MTP-ST,MTP-E2000
OM5 50/125 MTP-LC, MTP-SC,MTP-FC,MTP-SC,MTP-ST,MTP-E2000

Optical Specifications

Insertion Loss (MPO)(IEC 61300-3-34)Singlemode (APC 8-degree polished): Standard loss:≤0.75dB(max), ≤0.50dB(Typical);Super Low loss:≤0.35dB(max), ≤0.20dB(Typical)

Insertion Loss(MPO)(IEC 61300-3-34) Multimode (PC Flat polish): Standard loss:≤0.6dB(max), ≤0.50(Typical);Super Low loss:≤0.35dB(max) , ≤0.20dB(Typical)

Insertion loss(LC/SC/FC/ST)(IEC 61300-3-6)Single mode (APC 8-degree polished): ≤0.3dB

Insertion loss(LC/SC/FC/ST)(IEC 61300-3-6)Multimode (PC Flat polish): ≤0.3dB

Return Loss (MPO) Singlemode (APC 8-degree polished): ≥60dB(8degree polishing)

Return Loss (MPO) Multimode (PC Flat polish): ≥25dB

Return loss(LC/SC/FC/ST): APC≥60dB; UPC≥50dB

Return loss(LC/SC/FC/ST): ≥35dB

Durability: <0.3dB typical change (200 matings)

Interchangeability: ≤0.2dB

Insert-pull Test: 500times, IL＜0.5dB

Tensile strength: >70N

Plug -in times:>600

Operating Temperature Singlemode (APC): -40°C to +85°C

Features

Low insertion loss, high return loss
MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
Economical solution for mass-termination of fiber
Designed for low loss and standard loss SM and MM applications
Ruggedized round cable, oval cable and bare ribbon options available
Color coded housings available to differentiate fiber type, polish type and/or connector grade
Good in repeatability and exchangeability

Application

12F MPO- LC/SC/FC/ST Straight harness Cables designed for 40G LR4 PSM, 40GBASE-SR4, 40G QSFP+ PLR4 and highdensity data center. It is optimized for 10/40/100G high-density data center applications.
All of OMC’s MPO Connectors are from Senko/Nissin/Sumitomo. MPO Fiber Patch Cord is a kind of high density cable assemblies which is generally use in three areas.

The Data Center application with high dense degree environment
The optical fiber to the building
The internal connector application in fiber equipment.
