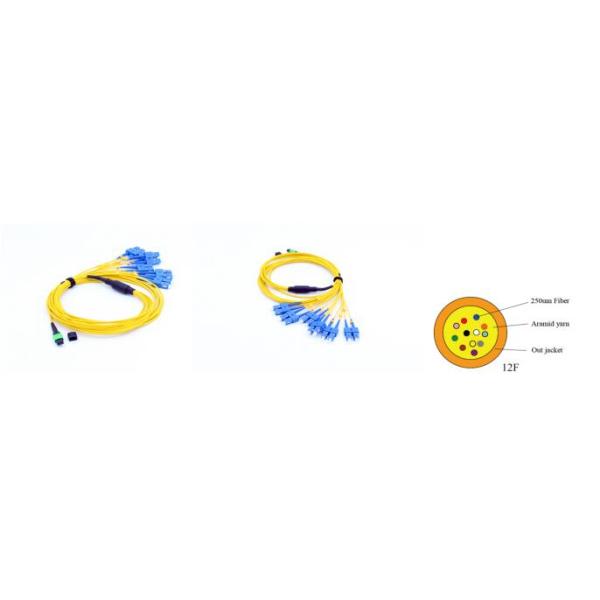

12F MPO SM Fiber Optic MPO-LC 2.0mm Straight Harness Cables
Product Description
The 12F MPO Single-Mode Fiber Optic MPO-LC 2.0mm Straight Harness Cable is a robust, high-performance
fiber optic solution designed to streamline cable management and ensure superior connectivity in high-density environments.
Featuring a 12-fiber MPO to 6 LC Duplex (6xLC uniboot) or 12 LC Simplex fanout design, this cable is optimized for
applications such as 40G QSFP+ PLR4 to 10G SFP+ LR optics direct connections and other high-speed data center use cases.
This harness cable is especially suited for:
- Data center environments demanding efficient space utilization and reduced cable clutter.
- Fiber-to-the-building (FTTB) solutions.
- High-performance internal fiber equipment interconnections for devices like QSFP+ and SFP+.
Key Features
- Low Insertion Loss and High Return Loss: Ensures efficient data transmission and signal integrity.
- Plug-and-Play Design: Pre-terminated for rapid deployment.
- High-Density Design: Reduces cable bulk, optimizes airflow, and saves valuable rack space.
- Color-Coded Housings: Simplifies identification of fiber and polish types.
- Durability and Reliability: Engineered for 200 matings with minimal loss changes.
- Wide Compatibility: Supports single-mode and multimode applications across multiple standards.
Connector Details
MPO Connector (Single-Mode APC)
- Standard Loss: ≤0.75dB (max), ≤0.50dB (typical)
- Super Low Loss: ≤0.35dB (max), ≤0.20dB (typical)
- Return Loss: ≥60dB (8-degree polishing)
LC/SC/FC/ST Connectors
- Insertion Loss: ≤0.3dB
- Return Loss:
- APC: ≥60dB
- UPC: ≥50dB
Industrial Compliance
- MPO Connectors: IEC 61754-7 standard
- LC/SC/FC/ST Connectors: IEC61754 series, GR-326, TIA/EIA compliance
- Meets Standards: IEC-61754-7, Telcordia GR-1435-CORE, TIA-604-5 (FOCIS5), TIA-568-C
- Supported Applications: IEEE 802.3 for 10G, 40G, and 100G Ethernet
Optical Specifications
- Insertion Loss (MPO):
- Standard Loss: ≤0.75dB (max), ≤0.50dB (typical)
- Super Low Loss: ≤0.35dB (max), ≤0.20dB (typical)
- Insertion Loss (LC/SC/FC/ST): ≤0.3dB
- Return Loss (MPO): ≥60dB for single-mode
- Durability: ≤0.3dB typical change over 200 matings
- Tensile Strength: >70N
Applications
- 40G LR4 PSM, 40GBASE-SR4, and 40G QSFP+ PLR4 interconnections.
- 10G/40G/100G high-density data center connections.
- Fiber-to-the-building (FTTB) for internal and external network connections.
- Direct QSFP+ to SFP+ connectivity without the need for intermediate patch panels.
Available Fiber Types
- Single-Mode: G657A1, G657A2/B2, G657B3
- Multimode: OM1, OM2, OM3, OM4, OM5
Advantages
- High Quality: Factory pre-terminated, tested, and shipped with certified test reports.
- Space Efficiency: Compact cable design minimizes cable volume, improving airflow in dense environments.
- Time-Saving Deployment: Plug-and-play setup reduces installation time and complexity.
- Reliable and Repeatable Performance: Designed for long-term use with consistent results.
