Zion Code and Description

• Zion Code: 7236032

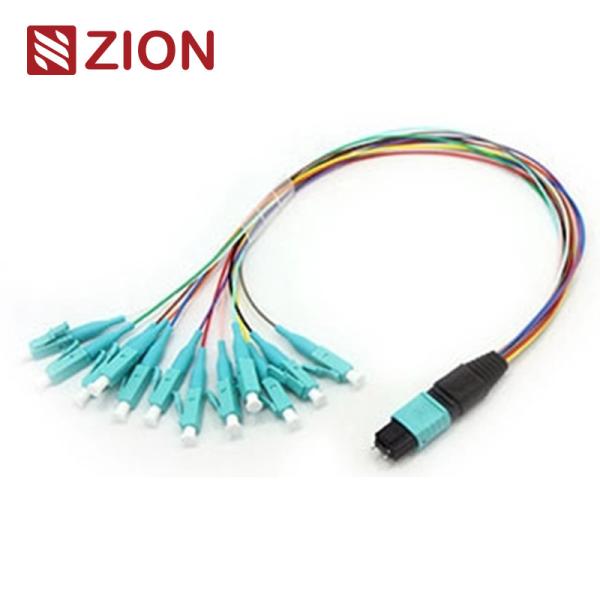

• Zion Description: 12F MPO (Male) - LC Fan-out 0.9mm 30-35cm Patch Cable

Overview

The 12F MPO (Male) - LC Fan-out 0.9mm 30-35cm Patch Cable is a high-performance fiber optic cable

designed for high-density applications in data centers and optical networks. The MPO (Multi-Fiber Push On)

connector is known for its high density, making it ideal for environments requiring dense fiber management,

such as data centers, fiber-to-building applications, and internal fiber transceiver connections.

Key Features

• Connector Type: MPO (Male) to LC/SC/FC/ST connectors.
• Cable Diameter: 0.9mm, optimized for flexibility and high-density installations.
• Length: 30-35 cm for shorter patching requirements.

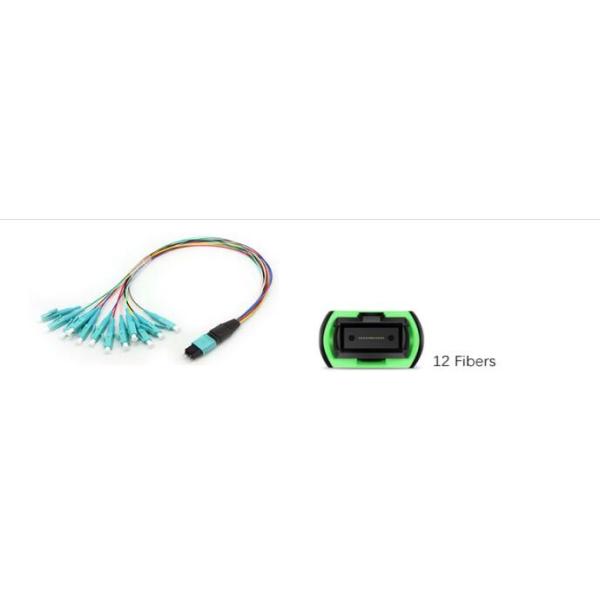

• Fiber Count: 12 fibers, providing a balance between high fiber density and manageable cable size.

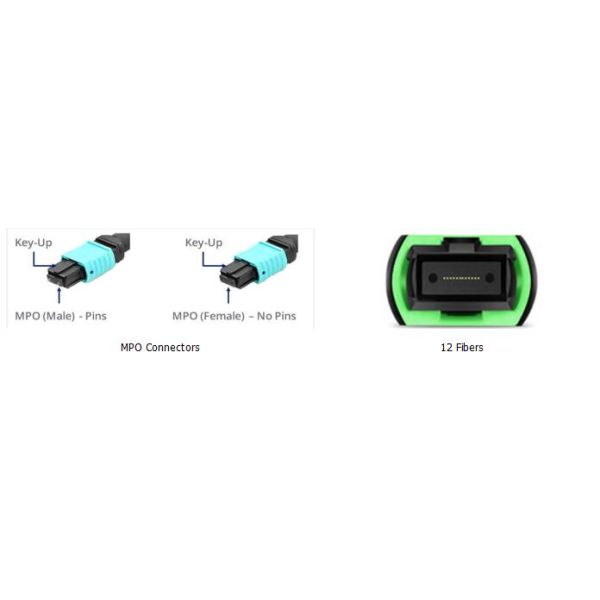

• MPO Connector: Male, suitable for 40G and 100G applications (e.g., 40G LR4 PSM, 40GBASE-SR4, 40G QSFP+ PLR4).
• Optical Specifications:

Insertion Loss (MPO): Standard loss ≤0.75dB, super low loss ≤0.35dB.

Return Loss (MPO): ≥60dB for Singlemode (APC 8-degree polishing), ≥25dB for Multimode.

Insertion Loss (LC/SC/FC/ST): ≤0.3dB.

Return Loss (LC/SC/FC/ST): ≥60dB for APC, ≥50dB for UPC.

• Applications:

Direct connection between high-speed equipment, such as QSFP+ to SFP+ ports.

High-density data center environments, reducing cable clutter and optimizing space.

Optical fiber to the building and internal connection in fiber transceiver equipment.

Industrial Standards

• MPO Connectors: Compliant with IEC 61754-7, Telcordia GR-1435-CORE, JIS C5982, and TIA-604-5.
• Other Connectors: SC, LC, FC, and ST connectors comply with industry standards such as TIA/EIA, FOCIS, and IEC 61754.

Applications

• Data Center High-Density Environments: Designed to save space while providing a reliable fiber connection.
• Fiber Optic to the Building (FTTB): Suitable for building infrastructure connections.
• Internal Fiber Equipment: Optimized for fiber equipment requiring high-performance connectivity.

Zion Communication's MPO–LC Fanout 0.9mm Patch Cables:

• Zion Code: ZCM16117X

Zion Description: 8F MPO (Male) - LC Fan-out 0.9mm 30-35cm Patch Cable

• Zion Code: ZCM16127X

Zion Description: 12F MPO (Male) - LC Fan-out 0.9mm 30-35cm Patch Cable

• Zion Code: ZCM16157X

Zion Description: 24F MPO (Male) - LC Fan-out 0.9mm 30-35cm Patch Cable

• Zion Code: ZCM26117X

Zion Description: 8F MTP (Male) - LC Fan-out 0.9mm 30-35cm Patch Cable

• Zion Code: ZCM26127X

Zion Description: 12F MTP (Male) - LC Fan-out 0.9mm 30-35cm Patch Cable

• Zion Code: ZCM26157X

Zion Description: 24F MTP (Male) - LC Fan-out 0.9mm 30-35cm Patch Cable

Material’s details

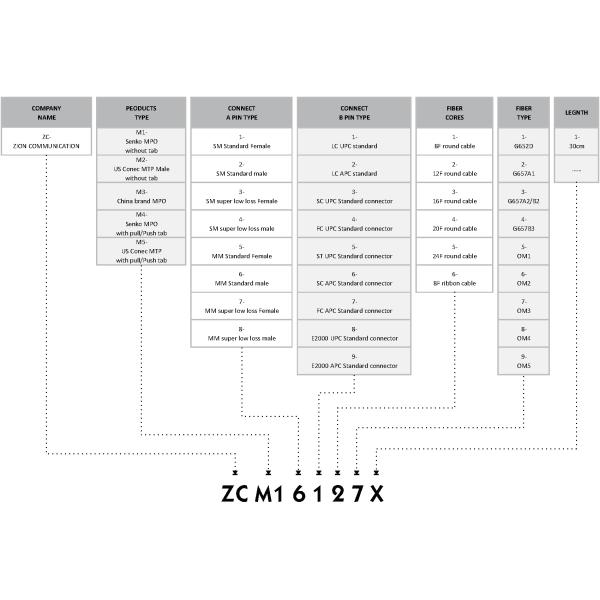

Naming Rules&Order Confirmation Information:

Connector Fiber Channel

Packaging

This easily taken and well-protected fiber optical cable package has been labelled and marked by OMC as default .

Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods Qty .

Packing can be customized.

OEM/ODM service for you

• Cable color, printing word, material of cable jacket, connector’s color
• OEM Label, Identify ring, cable’s label,box, shipping marks
• Different quality Level.
