Technical Index

Model No.			ZCSC-D144-02(7231210)
Color			Black
Capacity			144 cores
Protection Level			IP68
Material			PP,PC,PC+ABS
Sealing Method For Inlets			Heat-shrink seal
Inlet/outlet			1+4
Inlet cable Dia			Ф16-Ф28
Outlet cable Dia			Ф8-Ф20
Relative humidity			≤95%(＋30℃)
Atmospheric pressure			62～101kPa
Dimension(L*W*D,MM)			455*Ф148
Inner box size(MM)			465*230*210
Outer box size(MM)			645*475*480
Gross weight(KG)			15.5
Pcs/Carton(PCS)			6

Overview

ZION COMMUNICATION Model No. ZCSC-D144-02 is one of the main equipment for user access points, applied for protective connection and distribution between two or more cables. The primary function is to connect distribution cable and indoor cable in the open air. It’s widely used in communication systems, cable TV, optical cable network systems and others by virtue of steady structure, good sealing performance and easy construction.

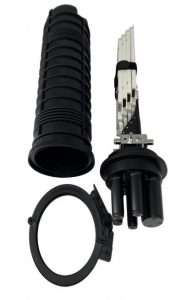

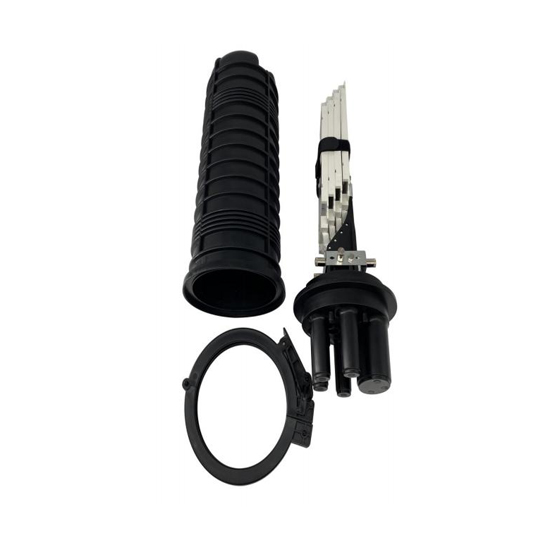

Pictures for reference

Inspection and test

• Meeting the appearance and structure requirements of 5.2 of YD/T 590.2-2005,YD/T 778-2011
• Meeting the transportation test requirements of the 6.9 of YD/T778-2011
• Meeting the common technical requirements for plastic parts of CB 867—83
• Protection Level: IP68 test
• Meeting the common package requirements for communication equipment of GB3873-1993
• Flame retardant performance: non-flame retardant

The parts of fiber optical splice closure

Box bottom, box cover, cable holder, holder for strengthening cable part, splice tray, transparent cover for splice tray, magic cable tie, plate for installing splice tray, sealing part for box body, box hoop and other accessory.

The packaging, transportation and storage

Package

• The size of Inner box size: 465*230*210mm
• The size of Outer box size :645*475*480mm(6pcs/carton)

Transportation and storage

• Avoid raining, sun exposuring and squeezing during transportation
• Products should be stored in the warehouse avoiding moisture, sun, fire. The storage temperature should

be from 25℃～+40℃

Note: Special parts that are easily damaged during transportation should be protected carefully

Installation method

Aerial mounting

1–Fiber optical splice closure 2–Hanger 3—Steel wire

Pole mounting

1– Fixed plate 2– Mounting plate 3—U-bolt 4—telephone pole
