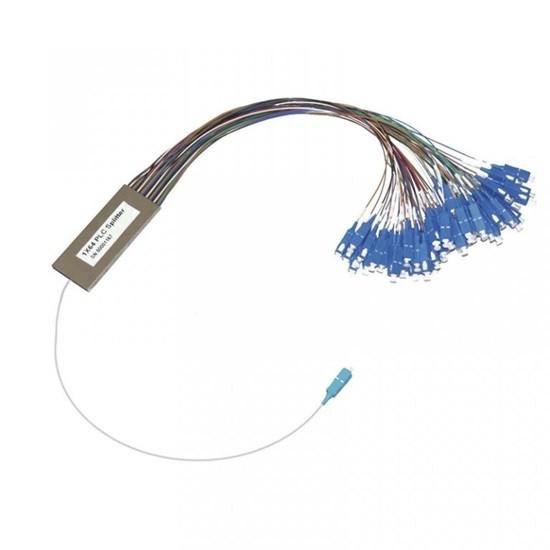

PLC Splitter 1×64 Single Mode Blockless PLC Fiber Optic Splitter(7233215)
PLC Splitter 1×64 Single Mode Blockless PLC Fiber Optic Splitter(7233215)
Specifications
Brand Name :
HELLOSIGNAL® OR OEM
Model Number :
PLC Splitter
Place of Origin :
CHINA
MOQ :
20pcs
Payment Terms :
T/T
Supply Ability :
no limit
Delivery Time :
Normally 25 days after received the deposit.
Packaging Details :
10 PC / Plastic Bag
Operating Wavelength (nm) :
1260~1650nm
Fiber Length :
1m or 1.5m or Requested
Operating Temperature (℃) :
-40 ～ 85
Connector Type :
SC/APC,SC/UPC,LC FC ST
Description

Fiber Optic Splitter

1*4/1*8/1*16/1*32 Single Mode/Multimode with SC LC FC ST/APC UPC connectors FBT/PLC OPTIC SPLITTER

Inquire Now
PLC Splitter 1×64 Single Mode Blockless PLC Fiber Optic Splitter(7233215)

PLC Splitter 1×64 Single Mode Blockless PLC Fiber Optic Splitter(7233215)

1X64 PLC Fiber Optic Splitter Application:

  • FTTH, LAN, PON & Optical CATV
  • Local ring net, Optical fiber communication system
  • Optical fiber test equipment, Optical fiber sensor

1X64 PLC Fiber Optic Splitter Specification

PLC Splitter Type 1×64 PLC Splitter
Configuration Type 1×64
Operating Wavelength (nm) 1260~1650nm
Fiber Length 1m or 1.5m or Requested
Directivity (≥) dB 55
Package Style Blockless
Fiber Type Singlemode G657A1 or G652D
Fiber Diameter 0.9mm
Polarization Dependent Loss (≤) dB 0.4
Wavelength Dependent Loss (≤) dB 0.8
Typical Insertion Loss (≤) dB 19.7
Insertion Loss (≤) dB 21.2
Loss Uniformity (≤) dB 2.5
Operating Temperature (℃) -40 ～ 85
Storage Temperature (℃) -40 ～ 85
Sealing Package Dimension (mm) 60*12*4
Blockless Sealing Package Dimension (mm) 100*40*6
Connector Type SC/APC,SC/UPC,LC FC ST
Brand HELLOSIGNAL® OR OEM
Delivery time Normally 25 days after received the deposit.
MOQ 20pcs

Introduction to 1X64 PLC Fiber Optic Splitter

PLC Splitter 1×64 Blockless mini Steel tube type Fiber Optic PLC Splitter, Singlemode, 900μm SC/APC connectors. Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.Huiyuan provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.

Performance Specifications:

Parameter 1 x N PLC Splitter; 2 x N PLC Splitter
Parameter 1×2 1×4 1×8 1×16 1×32 1×64 1×128
2×2 2×4 2×8 2×16 2×32 2×64 2×128
Operating Wavelength(mm) 1260~1650
Fiber Type G657A1 or Customized
Insertion Loss (dB)
(P/S Grade)		 1 x N 3.8/4.0 7.2/7.4 10.3/10.7 13.5/13.7 16.5/16.9 20.5/21.0 23.8/24.2
2 x N 3.9/4.2 7.3/7.6 10.5/11 14.4/14.6 17.4/17.9 21.0/21.5 24.5/25.0
Loss Uniformity (dB) < 0.4 < 0.6 < 0.8 < 1.0 < 1.5 < 2.0 < 2.5
PDL(dB) < 0.2 < 0.2 < 0.2 < 0.3 < 0.3 < 0.4 < 0.4
Return Loss (dB) > 55 > 55 > 55 > 55 > 55 > 55 > 55
Directivity ( dB) > 55 > 55 > 55 > 55 > 55 > 55 > 55
Wavelength Dependent Loss (dB) < 0.5 < 0.5 < 0.5 < 0.5 < 1.0 < 1.0 < 1.0
Fiber Length (m) 1m or Customized
Temperature Stability(- 20~+80°C) < 0.5
Operating Temperature (°C) – 20~+80
Storage Temperature (°C) – 40~+80
Maximum Power Handing(mW) 500.0

Notice:Above specifications are for devices without connector. Add an additional 0.2dB loss per connector.

Important Alternative Information

A B D F F
Port Package Fiber Diameter Fiber Length Connector
0102 = 1×2
0104 = 1×4
0108 = 1×8
0116 = 1×16
0132 = 1×32
0164 = 1×64
1128 = 1×128
0202 = 2×2
0204 = 2×4
0208= 2×8
0216 = 2×16
0232=2×32
0264 = 2×64
2128 = 2×128		 1=Bare
2=Blockless
3=ABS Box Module
4=lnsert Box
5=Pallet Type
6=Rackmount
Z=Customized		 0=250 um
1=900 um
2=2.0mm
3=3.0mm		 0=0.5m
1=1.0m
2=1.5m
3=2.0m
4=3.0m
5=4.0m
Z=Customized		 0=None
1=FC/APC
2=FC/UPC
3=SC/APC
4=SC/UPC
5=LC/APC
6=LC/UPC
7=ST
Z=Customized
