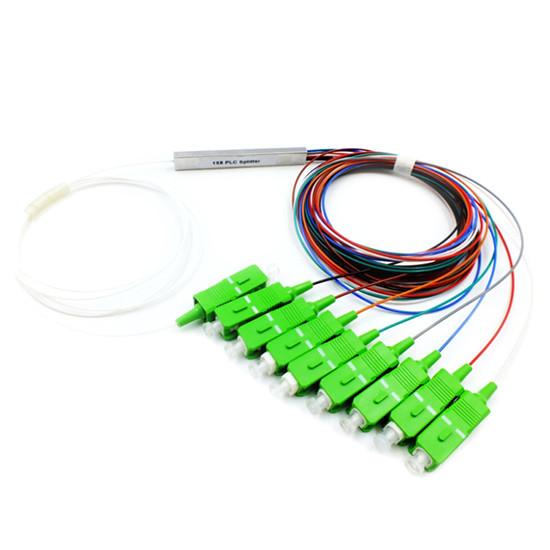

1×8 Fiber PLC Splitter Single Mode Blockless PLC Fiber Optic Coupler(7233202)
1×8 Fiber PLC Splitter Single Mode Blockless PLC Fiber Optic Coupler(7233202)
Specifications
Brand Name :
HELLOSIGNAL® OR OEM
Model Number :
PLC Splitter
Place of Origin :
CHINA
MOQ :
20pcs
Payment Terms :
T/T
Supply Ability :
no limit
Delivery Time :
Normally 25 days after received the deposit.
Packaging Details :
10 PC / Plastic Bag
Operating Wavelength (nm) :
1260~1650nm
Fiber Length :
1m or 1.5m or Requested
Bandwidth (nm) :
20nm
Operating Temperature (℃) :
-40 ～ 85
Connector Type :
SC/APC,SC/UPC,LC FC ST
Description

Fiber Optic Splitter

1*4/1*8/1*16/1*32 Single Mode/Multimode with SC LC FC ST/APC UPC connectors FBT/PLC OPTIC SPLITTER

Inquire Now
1×8 Fiber PLC Splitter Single Mode Blockless PLC Fiber Optic Coupler(7233202)

1×8 Fiber PLC Splitter Single Mode Blockless PLC Fiber Optic Coupler(7233202)

1×8 Fiber PLC Splitter Application:

  • FTTH, LAN, PON & Optical CATV
  • Local ring net, Optical fiber communication system
  • Optical fiber test equipment, Optical fiber sensor

1×8 Fiber PLC Splitter Specification

Input & Output 1×8 PLC Splitter
Configuration Type 1×8
Operating Wavelength (nm) 1260~1650nm
Fiber Length 1m or 1.5m or Requested
Bandwidth (nm) 20nm
Package Style Blockless
Fiber Type Singlemode G657A1 or G652D
Fiber Diameter 0.9mm
Polarization Dependent Loss (≤) dB 0.3
Wavelength Dependent Loss (≤) dB 0.3
Typical Insertion Loss (≤) dB 10.2
Insertion Loss (≤) dB 10.7
Loss Uniformity (≤) dB 0.8
Operating Temperature (℃) -40 ～ 85
Storage Temperature (℃) -40 ～ 85
Sealing Package Dimension (mm) 50*4*4
Blockless Sealing Package Dimension (mm) 60*7*4
Connector Type SC/APC,SC/UPC,LC FC ST
Brand HELLOSIGNAL® OR OEM
Delivery time Normally 25 days after received the deposit.
MOQ 20pcs

Introduction to 1×8 Fiber PLC Splitter

1×8 Fiber PLC Splitter Single Mode Blockless PLC Fiber Optic Coupler can integrate multiple functions onto a single chip to significantly reduce size and cost. It is widely used in PON networks to realize optical signal power management. The following figure shows 1X8 blockless PLC fiber splitter interconnected with GPON OLT and ONT through fiber optic splice closure.

PLC (Planar Lightwave Circuit) Splitters are Single Mode Splitters with an even split ratio from one input fiber to multiple output fibers. This 1×8 Fiber PLC Splitter with 1 input and 8 output fibers with an even split ratio across all fibers regardless of input wavelength. PLC Splitters are availble with 900µm loose tube singlemode fiber and terminated or unterminated as per your needs. Unconnectorized PLC splitters come with no connectors for easy splicing or connectorization. Connectorized PLC Splitters are available with your choice of Fiber Optic Connectors: LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, and ST/UPC.

Performance Specifications:

Parameter 1 x N PLC Splitter; 2 x N PLC Splitter
Parameter 1×2 1×4 1×8 1×16 1×32 1×64 1×128
2×2 2×4 2×8 2×16 2×32 2×64 2×128
Operating Wavelength(mm) 1260~1650
Fiber Type G657A1 or Customized
Insertion Loss (dB)
(P/S Grade)		 1 x N 3.8/4.0 7.2/7.4 10.3/10.7 13.5/13.7 16.5/16.9 20.5/21.0 23.8/24.2
2 x N 3.9/4.2 7.3/7.6 10.5/11 14.4/14.6 17.4/17.9 21.0/21.5 24.5/25.0
Loss Uniformity (dB) < 0.4 < 0.6 < 0.8 < 1.0 < 1.5 < 2.0 < 2.5
PDL(dB) < 0.2 < 0.2 < 0.2 < 0.3 < 0.3 < 0.4 < 0.4
Return Loss (dB) > 55 > 55 > 55 > 55 > 55 > 55 > 55
Directivity ( dB) > 55 > 55 > 55 > 55 > 55 > 55 > 55
Wavelength Dependent Loss (dB) < 0.5 < 0.5 < 0.5 < 0.5 < 1.0 < 1.0 < 1.0
Fiber Length (m) 1m or Customized
Temperature Stability(- 20~+80°C) < 0.5
Operating Temperature (°C) – 20~+80
Storage Temperature (°C) – 40~+80
Maximum Power Handing(mW) 500.0
Notice:Above specifications are for devices without connector. Add an additional 0.2dB loss per connector.

Important Alternative Information

A B D F F
Port Package Fiber Diameter Fiber Length Connector
0102 = 1×2
0104 = 1×4
0108 = 1×8
0116 = 1×16
0132 = 1×32
0164 = 1×64
1128 = 1×128
0202 = 2×2
0204 = 2×4
0208= 2×8
0216 = 2×16
0232=2×32
0264 = 2×64
2128 = 2×128		 1=Bare
2=Blockless
3=ABS Box Module
4=lnsert Box
5=Pallet Type
6=Rackmount
Z=Customized		 0=250 um
1=900 um
2=2.0mm
3=3.0mm		 0=0.5m
1=1.0m
2=1.5m
3=2.0m
4=3.0m
5=4.0m
Z=Customized		 0=None
1=FC/APC
2=FC/UPC
3=SC/APC
4=SC/UPC
5=LC/APC
6=LC/UPC
7=ST
Z=Customized
