Alu Braid 70% MENA CCTV Coaxial Cable With 2C Power Mini Coax +2 X 0.22
Alu Braid 70% MENA CCTV Coaxial Cable With 2C Power Mini Coax +2 X 0.22
Alu Braid 70% MENA CCTV Coaxial Cable With 2C Power Mini Coax +2 X 0.22
Alu Braid 70% MENA CCTV Coaxial Cable With 2C Power Mini Coax +2 X 0.22
Specifications
Brand Name :
Zion communication OR OEM
Model Number :
MENA CCTV Coaxial Cable
Certification :
ISO, UL, CE, RoHS
Place of Origin :
China
MOQ :
30 KM
Payment Terms :
T/T, L/C
Supply Ability :
50*20’GP / Month
Delivery Time :
Normally 15 days
Packaging Details :
500FT, 1000FT, Plastic / Wooden Spool, Carton
Inner Conductor :
7x0,20mm Ø Stranded Copper
Dielectric :
2,50mm Ø Solid PE
Shield 1 :
Al-Pes Tape /CU-Pes Tape
Shield 2 :
Aluminium Braid 70%
Power Cores Conductor :
2x0,22mm2 (7×0.18mm CU ) Stranded Copper
Power Cores Insulation :
1.0mm PVC
Description

Mini Coax +2×0.22 With 2C Power Cable Aluminium Braid 70% MENA CCTV Coaxial Cable

Mini Coax +2×0.22(NO.7102171)

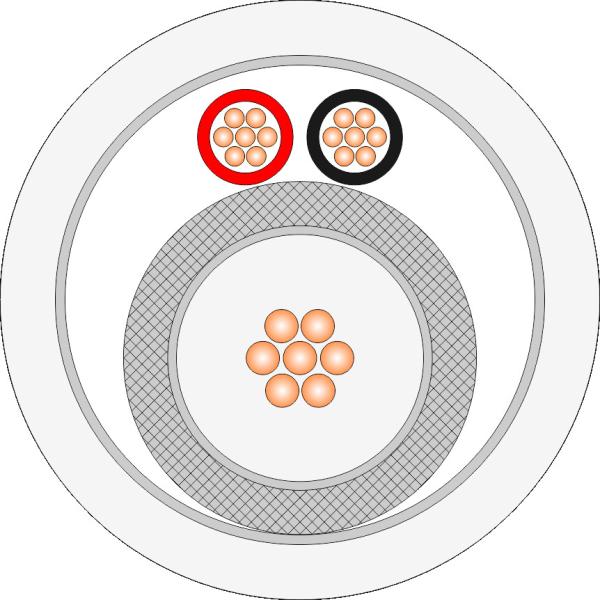

Construction Parameters:
Coaxial Cable
Inner Conductor 7x0,20mm Ø Stranded Copper
Dielectric 2,50mm Ø Solid PE
Shield 1 Al-Pes Tape /CU-Pes Tape
Shield 2 Aluminium Braid 70%
Power Cores
Inner Conductor 2x0,22mm2 (7×0.18mm CU ) Stranded Copper
Insulation 1.0mm PVC
Overall Outer Sheath 5.5±0.2mm PVC Common RAL 7032 Grey
Electrical Characteristics:
Inner Conductor Resistance The Max. at 20℃ shall be < 64.9 Ω/km
Capacitance 52 ±3 pF/m
Impedance 75 ± 3 Ω
Velocity of Propagation 0.82
Sparker Test (VAC) 3
Mechanical and Envrionmental Properties
Cable bend radius 10 times the cable diameter
Operating Temp Range -20 ℃ to 60℃
Attenuation(20℃):
Frequency (MHZ) Max Attenuation (dB/100m)
1 1.8
5 3.9
10 4.8
50 11
100 15.2
200 21.8
400 29.8
700 34.4
900 36
※Note: The above transmission performance tor the 100M, 20±2℃ under the conditions tested.
Order Informations
Marking HELLOSIGNAL CCTV 2+1,MINI COAX + 2x 0,22 mm²
CCTV COAXIAL CABLE 7102171×××M
Package 100M,200M Roll, Spool
Delivery time Normally 25 days after received the deposit.
Brand HELLOSIGNAL® OR OEM
