NO.7112105 U/UTP CAT 5E-UL CMP Ethernet Cable | UL-Rated Network Cable for Commercial and Residential Use
NO.7112105 U/UTP CAT 5E-UL CMP Ethernet Cable | UL-Rated Network Cable for Commercial and Residential Use
Specifications
Brand Name :
Zion communication OR OEM
Model Number :
U/UTP CAT 5E
Certification :
CE, ROHS, VDE, UL
Place of Origin :
CHINA
MOQ :
500
Payment Terms :
T/T, L/C
Supply Ability :
500000pcs / Month
Delivery Time :
Normally 20 working days
Packaging Details :
Carton
Description
U/UTP CAT 5e-UL CMP
Key Information & Construction
SKU: 7112105
NO.7112105 U/UTP CAT 5E-UL CMP Ethernet Cable | UL-Rated Network Cable for Commercial and Residential Use
UL Certificate Number: E541136
Standards: UL 444 & CSA C22.2 No.214
Communications Cables
Conductor Material: Solid Bare Copper
Conductor Size: 24AWG/ 0.0193" / 0.49±0.005mm
Pairs: 4 Pairs
Insulation: 0.034" / 0.87±0.05 mm FEP
Insulation Colors: Blue-White/Blue,Orange-White/Orange
Green-White/Green,Brown-White/Brown
Rip Cord: Kevlar
Out Jacket: Material: Plenum PVC
Wall Thickness: 0.0157". Nom(0.4mm)
OD:0.1811"±0.008“ (4.6±0.2mm)

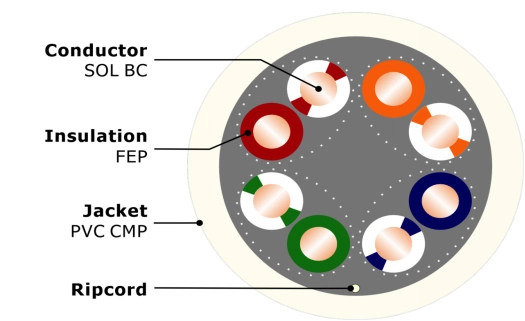

Cross Section

NO.7112105 U/UTP CAT 5E-UL CMP Ethernet Cable | UL-Rated Network Cable for Commercial and Residential Use
Application Support
· 1000BASE-T , 1000BASE-TX,100BASE-T , 100BASE-TX,100VG-AnyLAN,ATM
· 1Volp,ISDN, Token, 100MTPPDM, Analogand Datavideo, POE Type1,2,3,4
Electrical Characteristics
DC Resistance ＜9.38 Ohms/100m @20℃
DC Resistance unbalance 5% @ 20℃
Mutual Capacitance 5.6 nF/100m
Characteristic Impedance 1 - 100 MHz : 100±15 Ohms
Max Frequency 100MHz
Capacitance Unbalance 330 pF/100m
NVP(传输速率) ≥ 65%
Delay Skew ≤ 44ns/100m
Working Voltage Typically up to 48V
Rated Voltage(V RMS) 300V
PHYSICAL PROPERTIES
Pulling Tension(Max) 25 lbs(110N)
Bend Radius(Min) 4 Times the cable diameter
Operating Temperature -20 to 75 ℃ (-4 to 167℉)
Performance Characteristics
Frequency Attenuation NEXT
(dB)		 ACRF
(dB)		 PS.NEXT
(dB)		 PS.ACRF
(dB)		 RL
(dB)		 Delay
(ns/100m)		 Skew
(ns/100m)
MHz dB dB/100m ns/100m ns/100m dB dB dB/100m dB/100m
1 2.0 65.3 63.8 62.3 60.8 20.0 570.0 45.0
4 4.1 56.3 51.8 53.3 48.8 23.0 552.0
8 5.8 51.8 45.7 48.8 42.7 24.5 546.7
10 6.5 50.3 43.8 47.3 40.8 25.0 545.4
16 8.2 47.2 39.7 44.2 36.7 25.0 543.0
20 9.3 45.8 37.8 42.8 34.8 25.0 542.0
25 10.4 44.3 35.8 41.3 32.8 24.3 541.2
31.25 11.7 42.9 33.9 39.9 30.9 23.6 540.4
62.5 17.0 38.4 27.9 35.4 24.9 21.5 538.6
100 22.0 35.3 23.8 32.3 20.8 20.1 537.6
※Note: The above transmission performance tor the 100M, 20±2℃ under the conditions tested.
Order Informations
Marking HANGZHOU ZION 7112105 U/UTP CAT5e 4PR
24AWG SOLID 100MHZ E541136 (UL)C(UL)
VERIFIED TO ANSI/TIA 568C.2 RoHS COMPLIANT ***FT
Inner Package 1000FT/Pull Box or Wooden Spool (or Per customer's request)
Outer Package Pallet (or Per customer's request)
Delivery time Normally 25 days after received the deposit.
Brand HELLOSIGNAL® OR OEM
OEM Customized Service:
Color We can customized Jacket Color based on RAL Classic
Printing We can customized printing words on jacket
Packing & Label We can customized spool, carton & label design.
