OPGWS Single Suspension - Stable Support for Optical Ground Wire
OPGWS Single Suspension - Stable Support for Optical Ground Wire
Specifications
Brand Name :
Zion communication OR OEM
Model Number :
Single Suspension for OPGW
Certification :
CE, ROHS, VDE, UL
Place of Origin :
CHINA
MOQ :
500
Payment Terms :
T/T, L/C
Supply Ability :
500000pcs / Month
Delivery Time :
Normally 20 working days
Packaging Details :
Carton
Description
Single Suspension for OPGW
Suspension Set for OPGW used primarily for straight-sided drop tower, or less than 15 º line tower connection. Clamp screw from the inside and outside the two pre-twisted wire, hanging head and supporting the composition of connecting fittings. Clamp grip strength is greater than the tensile strength of fiber optic cable rated 10% -20%, for the transfer axial loads, and distributed radial compressive stress, better protection of fiber optic cable, to avoid the phenomenon of bending stresses and stress concentration.

Suspension Set for OPGW with the Suspension has excellent fatigue resistance, the power
cable can also play a supporting role in damping.
Pictures and illustrations:




OPGWS Single Suspension - Stable Support for Optical Ground Wire

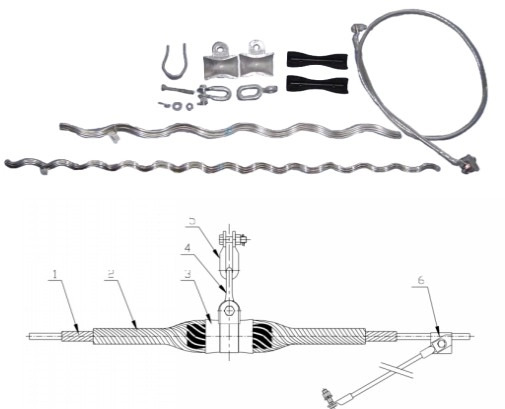

1. Structural Reinforcing Rods 2.Dead-end Component 3.AGS Clamp
4.EyeChainLink(TypeZH) 5.U-Clevis 6.Grounding Clamps
Model Specification:
Model Available Dia. of
Cable(mm)		 Length of Structural Reinforcing
Rods (mm)		 Length of Outer Rods Reference
Weight (kg)		 Universal Scheme
AGS Clamp Link Fittings
ZC-AXY 0940 300 8.6-9.4 1500 1060 1.2 L-1040 AGS-4 U-10
ZC-OXY 0940 8.9-9.4 1400 1000 0.88 AGS-5 ZH-7 U-7
ZC-OXY 1010 9.5-10.1 1690 1140 1.38 AGS-5 ZH-7 U-7
ZC-OXY 1070 10.2-10.7 1690 1140 1.48 AGS-5 ZH-7 U-7
ZC-OXY 1140 10.8-11.4 1760 1180 1.55 AGS-5 ZH-7 U-7
ZC-OXY 1220 11.5-12.2 1840 1240 1.73 AGS-5 ZH-7 U-7
ZC-OXY 1290 12.3-12.9 1960 1320 1.84 AGS-5 ZH-7 U-7
ZC-OXY 1370 13.0-13.7 1960 1320 2.74 AGS-5 ZH-7 U-7
ZC-OXY 1460 13.8-14.6 2000 1360 2.99 AGS-6 ZH-7 U-7
ZC-OXY 1550 14.7-15.5 2120 1440 3.38 AGS-6 ZH-7 U-7
ZC-OXY 1650 15.6-16.5 2120 1440 3.59 AGS-6 ZH-7 U-7
ZC-OXY 1750 16.6-17.5 2400 1620 4.07 AGS-6 ZH-7 U-7
ZC-OXY 1870 17.6-18.7 2400 1620 4.31 AGS-6 ZH-7 U-7
Note: 1. The maximum single side suspension angle of single suspension clamp is 15 ° - 18 °.
2.The above configuration is a general configuration. Please refer to the appendix for other connection hardware and special instructions.
3.If you have special needs, you can consult our technology department.
