NO.P7110042 18AWG 4C SOL Unshielded Plenum Cable - High-Quality Wiring Solution
NO.P7110042 18AWG 4C SOL Unshielded Plenum Cable - High-Quality Wiring Solution
Specifications
Brand Name :
Zion communication OR OEM
Model Number :
Plenum
Certification :
CE, ROHS, VDE, UL
Place of Origin :
CHINA
MOQ :
500
Payment Terms :
T/T, L/C
Supply Ability :
500000pcs / Month
Delivery Time :
Normally 20 working days
Packaging Details :
Carton
Description

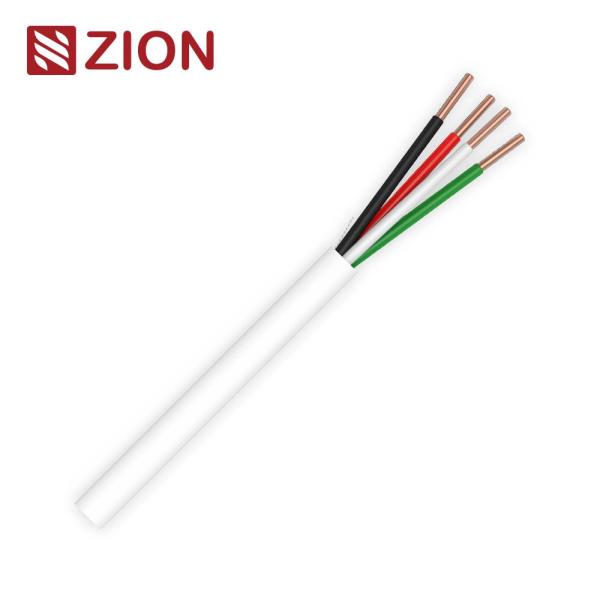

18AWG 4C SOL Unshielded Plenum
Key Information & Construction
SKU: P7110042 NO.P7110042 18AWG 4C SOL Unshielded Plenum Cable - High-Quality Wiring Solution
UL Certificate Number: E541136 - CMP
E541137 - CL2P & CL3P
CMP Standards: UL 444 & CSA C22.2 No.214
Communications Cables
CL2P/CL3P Standards: UL 13 Power-Limited Circuit Cables
Total Number Conductors 4
Conductor Material: Solid Bare Copper
Conductor Size: 18AWG/ 0.0403" / 1.02±0.008mm
Dielectric Material: Plenum PVC - Low Smoke
Dielectric Size: 0.054±0.004''nom.(1.37±0.10mm)
Dielectric Colors: 1.Blk 2.Red 3.White 4.Green
Rip Cord: Yes
Out Jacket: Material: Plenum PVC - Low Smoke
Wall Thickness: 0.0150". Nom(0.38mm)
OD:0.157"±0.006“ (4.00±0.15mm)
Electrical & Physical Characteristics
DC Resistance 6.425 Ω/KFT | 21.05 Ω/KM
Rated Voltage(V RMS) 300V
Operating Temperature - 20 to 75 ℃ (- 4 to 167℉)
Order Informations
Marking HANGZHOU ZION 18AWG 4C SOL UNSHIELDED E541137 CL3P(UL)
OR E541136 CMP(UL)C(UL) MM/DD/YY RoHS COMPLIANT ***FT
Color We can customized Jacket Color based on RAL Classic
Printing We can customized printing words on jacket
Packing & Label We can customized spool, carton & label design.
Suitable Application
Description Security System | Sound/Audio System | Intercom System
Power-Limited Controls System
