Color - Mixing RGB / RGBW LED Light Engine 200 W - 300 W 6500 - 8500nm
Color - Mixing RGB / RGBW LED Light Engine 200 W - 300 W 6500 - 8500nm
Specifications
Place of Origin :
CN
Brand Name :
TYANSHINE
Certification :
ISO9001:2008 ROHS
Model Number :
TX-6066RGBW250FC120 -NUVENG-01
MOQ :
1pcs
Price :
Negotiation
Packaging Details :
In plastic tube
Delivery Time :
5-10 days
Payment Terms :
EXW,FOB,CIF,CFR
Supply Ability :
1, 000, 000pcs/month
Description

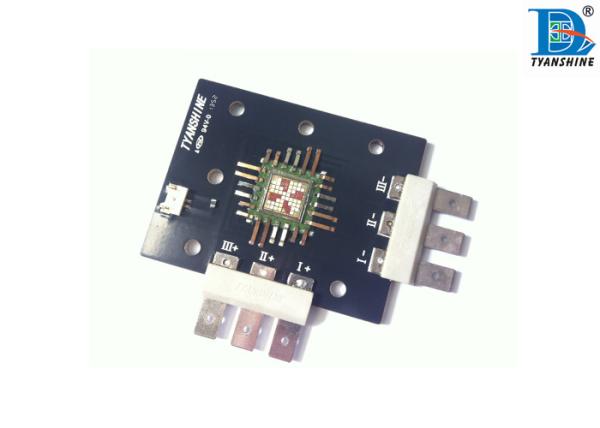

Color - Mixing RGB / RGBW LED Light Engine 200 W - 300 W 6500 - 8500nm

High Power RGBW LED Engines for Entertainment Spot / Wash Lighting

Products’ Features:

1, Small LES, 5W/mm² ;

2, Eutectic packages technique, fast heat-conductivity;

3, Special Parallel and Serial connection,1/4 current for the same power compared with the similar product in the market ;

4, Average efficiency upto 40lm/W @Tj=85℃ with full power;

5, Excellent effect of color-mixing for 3Colors or 4Colors LEDs light source;

6, Quick on/off; Anti-poisonous or toxic, comply with RoHS

Specifications:

Code Color Vf (V) If (A)

λd(nm)

CCT(K)

 φv(lm) Power LES(mm)
TX-6066RGBW250FC120
-NUVENG-01		 Red 7-10 5 610-622 600-750 40 9 x 9
Φ11
Green 9-13 5 520-530 1200-1500 55
Blue 9-13 5 452-460 400-500 55
White 9-13 5 6500-8500 2200-2600 55

Applications:

  • Entertainment spot/wash lighting
  • Architectural spot/wash lighting
  • Fiber coupled illumination
  • Effect lighting
  • Stage lighting Projection

Dimensions:
