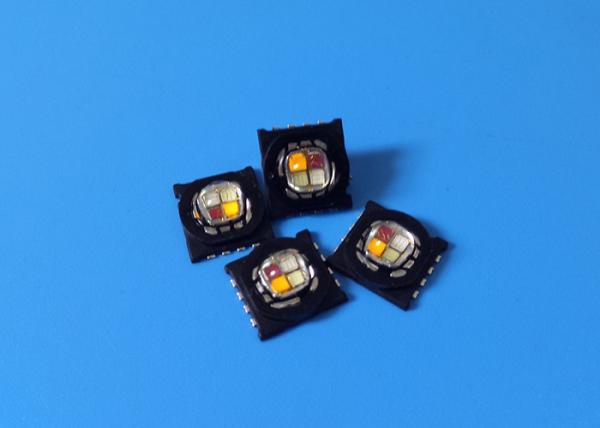

15W Quad RGB PC Amber High Power LED Diode 1800K Multi - Color LEDs Chip
15W Quad RGB PC Amber High Power LED Diode 1800K Multi - Color LEDs Chip
Specifications
Brand Name :
TYANSHINE
Model Number :
TX-RBAG15B120-001
Certification :
ISO9001:2008 SGS RoHS
Place of Origin :
CN
MOQ :
500pcs
Price :
USD
Supply Ability :
100K / month
Packaging Details :
In Reel
Color-mixing :
RGB + PCAmber
Power :
15W
Current :
1000mA
Voltage :
3.2-3.5V
Beam Angle :
120 degree
Lumen :
650lm
RθJ-C :
2K/W
Description

15W Quad RGB PC Amber High Power LED Diode 1800K Multi - Color LEDs Chip​

Features RGB PC Amber LEDs:

  1. Small and bright SMD package LEDs, Patent LEDs
  2. Compatible with Optical LENs of Cree XLamp XML Color,MCE LEDs, Osram Ostar LEDs
  3. Compact LED light source with small LES, RGBW chips evenly distributed in 2.4x2.4mm space
  4. Same light-emitting shape for the 4 color LED die, high orientability of light, excellent color-mixing effect
  5. Packaged with high thermal conductivity materials, low thermal resistance

Specifications:

Code Color Vf (V) If (mA) λd(nm) φv(lm) Power LES(mm)
TX-RBAG15B120-001 Red 2.5-3.2 1000 618-628 130-170 4.2W Φ5.8
Green 3.2-3.8 1000 520-530 200-220 4.4W
Blue 3.2-3.8 1000 450-460 40-60 3.8W
Amber 3.2-3.8 1000 1800K-1900K 150-180 4.4W

Parameter Symbol Values Units
Min. Typical Max.
Continuous Forward Current IF - - 1000 mA
Forward Voltage VF R 2.5 2.8 3.2 V
G 3.2 3.5 3.8
B 3.2 3.5 3.8
A 3.2 3.5 3.8
Luminous Flux φv R 170 205 - lm
G 200 240 -
B 40 55 -
A 280 310 -
Dominant Wavelength λd R 618 623 628 nm
G 520 525 530
B 450 455 460
Correlated Colour Temperature CCT A 1700K 1800K 1900K

RGBW LED dimensions:

Applications:

  • Entertainment Lighting
  • Architectural illumination
  • Display & Projection

Packing details:
